What Is a Panel Antenna?

What is a panel antenna?

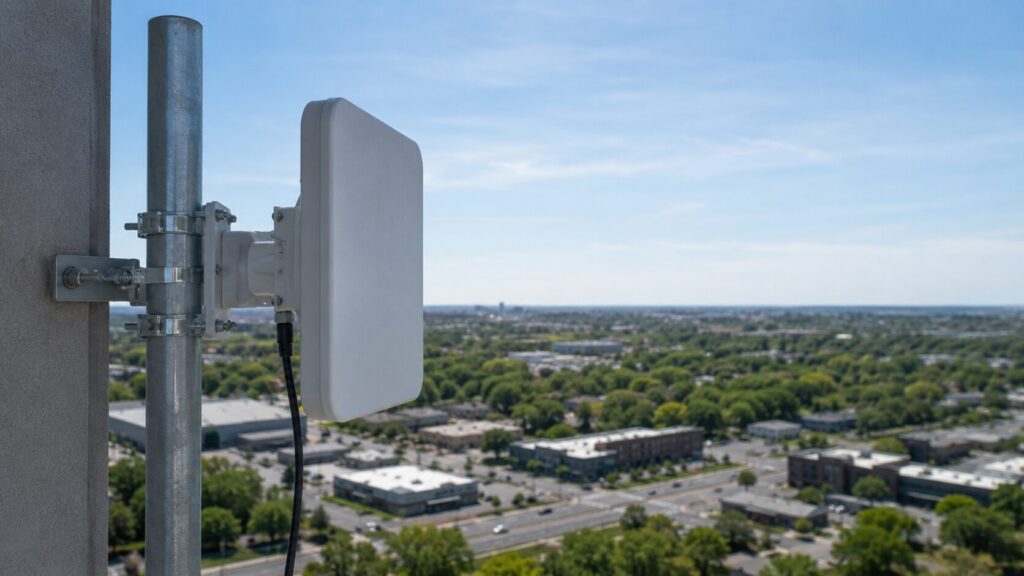

A panel antenna is a directional antenna built into a flat, low-profile housing. It focuses radio energy forward into one sector — a yard, a building face, a road, a warehouse aisle — instead of radiating evenly in all directions. Because the coverage is aimed, it can be planned: you decide where the signal goes, and where it does not.

📌 In one line: a panel antenna is a flat antenna that pushes signal in one direction. You point it at the area you want to cover.

Two RFTECH parts show how wide the category is:

• GL1727D-15 — a large 4G panel, 1710–2700 MHz, ±45° dual-slant polarization (two ports, built for MIMO).
• GL3742V-9 — a compact 5G C-band panel, 3750–4250 MHz, 65° × 30° beam.

How does a panel antenna work?

Three parts do the work:

1. Radiating elements — the metal patches or dipoles that actually transmit and receive the radio signal. More elements, arranged in a column or grid, usually mean a tighter, higher-gain beam.
2. Reflector (ground plane) — a metal plate behind the elements. It blocks and re-directs energy that would otherwise go backwards, pushing it forward instead.
3. Radome — the plastic front cover. It protects everything from rain, UV and dust without blocking RF.

The result is a forward beam: most of the energy leaves the front face in a cone shape.

         Side view of a panel antenna

Reflector      Radiating elements     Radome
(metal back)   (patches / dipoles)    (cover)
     │                 │                │
     ▼                 ▼                ▼
   ██████ ─────────── ▪ ▪ ▪ ─────────  ░░░░░░   ))))  forward beam
   ██████ ─────────── ▪ ▪ ▪ ─────────  ░░░░░░   ))))
   ██████ ─────────── ▪ ▪ ▪ ─────────  ░░░░░░   ))))
     ▲
     │
little energy goes behind the reflector

💡 Plain English: the elements make the signal, the metal back plate stops it from spraying backwards, and the cover keeps the weather out.

What does a panel antenna radiation pattern look like?

A radiation pattern is simply a map of where the energy goes. For a panel it has three features:

• Main lobe — the strong forward beam. This is the part you aim at your coverage area.
• Side lobes — smaller leaks of energy to the sides. Usually harmless, occasionally a source of interference.
• Rear radiation (back lobe) — the small amount that still escapes behind the antenna. The front-to-back ratio (in dB) tells you how well it is suppressed. A high front-to-back ratio is what lets you reuse the same channel behind the antenna.

Manufacturers publish the pattern in two planes:

Beamwidth is the width of the main lobe measured at the point where the signal has dropped by 3 dB (about half power). So “65° H / 30° V” on the GL3742V-9 means: 65° wide side-to-side, 30° tall up-and-down.

Top view (H-plane)              Side view (E-plane)
      \         /                        /
       \       /                        /
        \     /                    [ PANEL ]
         \   /                          \
      [ PANEL ]                          \
   horizontal beamwidth            vertical beamwidth
   = left-right coverage           = up-down coverage

Vendor datasheets list horizontal and vertical beamwidth as separate numbers precisely because they answer different questions — for example, the Extreme Networks antenna specification matrix publishes gain, horizontal beamwidth and vertical beamwidth side by side.

Panel antenna gain, beamwidth and coverage

This is the section that decides whether a project works.

Gain (in dBi) does not create extra power. It describes how tightly the antenna concentrates the power it is given. Concentrating energy in one direction always means taking it away from another direction.

What does higher gain actually change?

Is a higher-gain panel antenna always better?

No. Consider a warehouse zone that needs coverage across its full width:

┌───────────────────┐
│     Warehouse     │
│                   │
│   [panel] ──→     │  target: a wide area, not a single point
│                   │
└───────────────────┘

Chasing 18 dBi instead of 12 dBi can backfire:

• The edges of the area fall outside the beam.
• A small mounting error causes a visible performance drop.
• Devices that move drift out of the main lobe.

Cisco’s directional antenna installation guidance makes the same point from the install side: the narrower main beam has to be pointed at the intended coverage area (Cisco antenna installation guide).

✅ Rule of thumb: choose the beamwidth that matches the shape of your coverage area first, then take the highest gain available at that beamwidth.

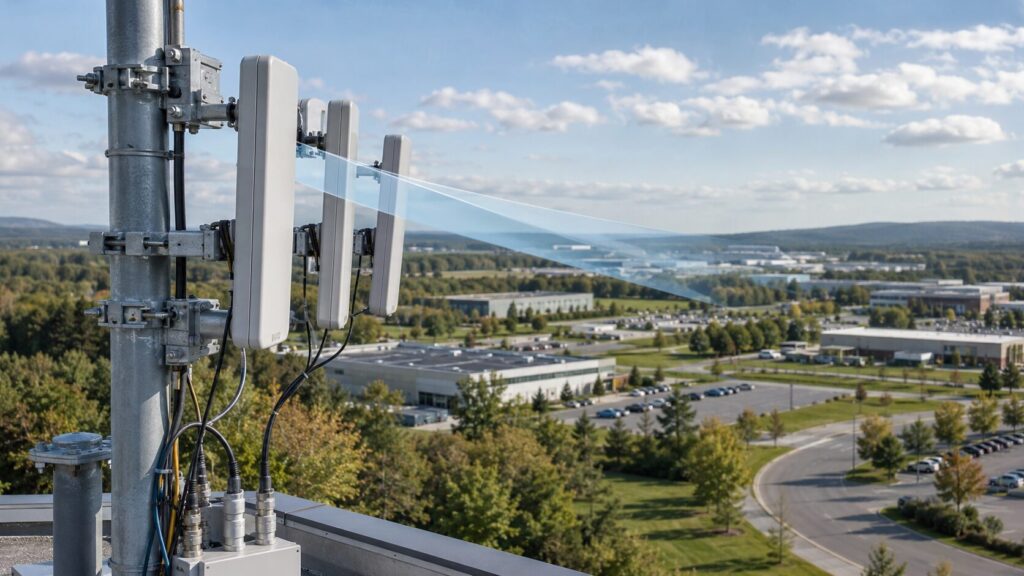

What is a panel antenna used for?

Because panels are directional, they belong on projects where shaping the signal matters as much as transmit power.

Types of panel antennas

Two real panels, side by side

Product pages: GL1727D-15 flat panel · GL3742V-9 flat panel

“Panel antenna” describes a coverage shape, not a single spec sheet.

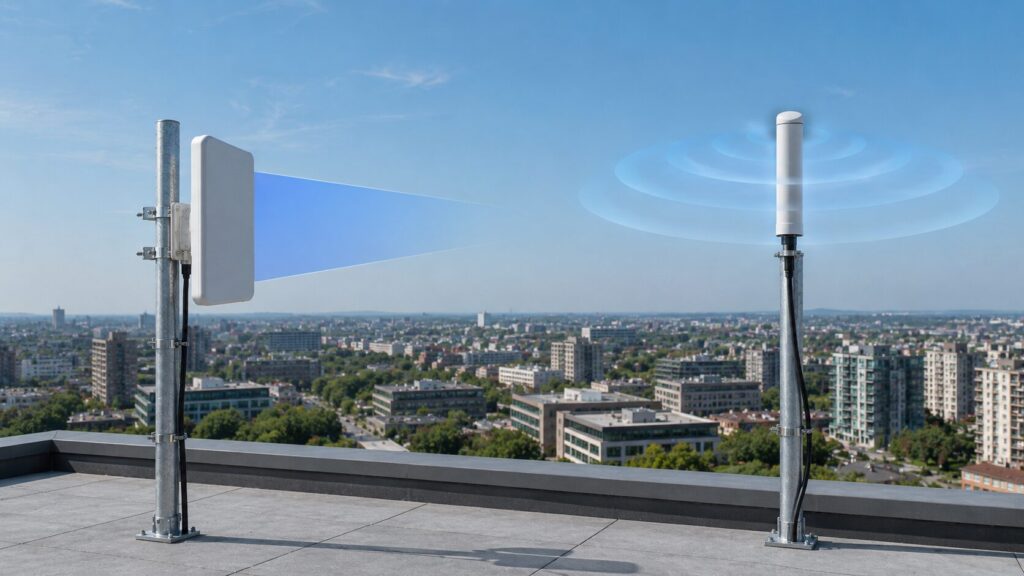

Panel antenna vs omni vs Yagi vs sector

Go deeper in the related guides: omnidirectional vs directional antenna · 5G outdoor antenna types · what is an LPDA antenna · Yagi vs LPDA antenna

Panel antenna vs patch antenna

The two words are often mixed up, and the confusion is understandable: most panel antennas are built from patch elements.

🔍 Short version: a patch is a building block, a panel is a deployable antenna. A single-patch product is really just a low-gain, wide-beam panel.

How far can a panel antenna reach?

There is no fixed range for a panel antenna. “How far does a 14 dBi 5.8 GHz panel reach?” is one of the most common questions engineers ask, and the honest answer is that gain alone cannot give you a distance (Electrical Engineering Stack Exchange discussion).

Range is the result of the whole link, not one number:

• Frequency — higher bands lose more energy over the same distance.
• Antenna gain at both ends.
• Transmit power / EIRP — the effective radiated power allowed by your radio and local regulations.
• Receiver sensitivity — how weak a signal the far end can still decode.
• Cable and connector loss.
• Line of sight (LOS) — a clear, unobstructed path between the two antennas.
• Obstacles — buildings, trees, metal structures, terrain.
• Interference — other radios on the same channel.

⚖️ A concrete example: two identical 14 dBi panels can behave completely differently. One with a clear line of sight may hold a solid link over several kilometres. The other, aimed through two buildings, may struggle over a few hundred metres. Same antenna, same gain, very different result.

So when a supplier promises “15 dBi = 5 km”, ask what transmit power, receiver and path that number assumes.

Can cable loss cancel out the benefit of a high-gain panel antenna?

Yes — and it happens often.

Coaxial cable attenuates the signal, and the loss grows with length and with frequency. A long run at 3.5 GHz can easily eat several dB — more than the difference between a 12 dBi and a 15 dBi antenna.

What you should actually evaluate is not:

Antenna gain = 15 dBi

but the whole chain:

Usable gain = Antenna gain − Cable loss − Connector / adapter loss

Cisco’s antenna guidance recommends keeping RF cable runs as short as possible for exactly this reason, and Poynting notes that an excessively long feeder can significantly reduce the advantage of an external antenna (Cisco antenna guide).

Practical rules:

• Mount the radio close to the antenna whenever possible.
• Use low-loss cable if the run must be long, and check the loss per metre at your frequency.
• Avoid stacking adapters — every junction costs a little.

Do I need a 2×2 or 4×4 MIMO panel antenna?

MIMO means the radio sends several data streams at once over separate antenna paths. The decision is simple: match the antenna configuration to the radio or router.

A common mistake is buying a 4-cable antenna for a 2-port router and joining the cables with a splitter. Poynting explains clearly that a splitter does not create extra MIMO channels — it only adds loss (Poynting FAQ on splitters).

This is where dual-polarized panels help: the GL1727D-15 puts ±45° dual-slant polarization and two N-female ports in one housing, so a 2×2 MIMO link needs only one mount.

Why might a high-gain panel antenna still perform poorly?

If you upgraded the antenna and saw no real improvement, the cause is almost always one of these:

See Cisco’s directional antenna installation notes on keeping the area in front of the antenna clear.

How to choose a panel antenna

Is a panel antenna right for your application? (30-second check)

Is your target mainly in ONE direction?
             │
       Yes ──┴── No ──→ Consider an omni antenna
        │
        ▼
Do you know the exact frequency band?
        │
        ▼
Choose a panel that covers that band
        │
        ▼
How WIDE is the target area?
        │
        ▼
Choose the beamwidth (H and V) that covers it
        │
        ▼
Then check gain / MIMO ports / connector / mount / IP rating

Most buying mistakes come from doing this in the wrong order — starting with dBi instead of direction and beamwidth.

How to install and aim a panel antenna

Three adjustments do almost all the work:

1. Azimuth — the left/right compass direction. Point the front face at the target area or the far-end device.
2. Downtilt — the up/down angle. A panel mounted high above its coverage area must be tilted down, or the beam flies over the users’ heads.
3. Line of sight — keep the path in front of the antenna clear. Avoid mounting directly behind metal structures, ducts or parapets.

How accurately does a panel antenna need to be aimed?

It depends on beamwidth.

For cellular links, the practical method Poynting recommends is empirical: rotate the antenna step by step, measure signal strength and quality at each position, then lock it down at the best result (Poynting: how to install an LTE antenna).

Where should a panel antenna be mounted?

One principle: the main beam must reach where the target is.

• Corridor — face the antenna along the corridor.
• Room or warehouse zone — face the target area, with enough horizontal beamwidth to cover its width.
• Outdoor link — aim at the far-end device.
• Cellular — test toward the best-performing base station rather than assuming a direction.
• Always — avoid large metal obstructions directly in front of the panel.

Real-world vendor instructions follow the same pattern: mount on a wall or pole, then adjust the angle so the panel points at the intended coverage area (Extreme Networks panel installation guide).

When should you not use a panel antenna?

A panel is the wrong tool when:

• Devices are spread 360° around the mounting point.
• The receiving direction keeps changing.
• The installation is on a moving vehicle with no fixed tower direction.
• The site genuinely needs broad circular coverage.
• You cannot determine or fix an aiming direction.
• Targets sit in completely different directions from one mount.

In those cases an omni serves all directions at once, while a directional antenna concentrates energy toward a specific direction (Cisco antenna guide). For very long, narrow point-to-point hops, a dish or high-gain Yagi may beat a panel.

Bottom line

A panel antenna is a flat directional antenna that focuses a sector beam on a known area. It wins when omni coverage would waste energy and reduce control. Choose in this order: direction → band → beamwidth → gain → MIMO, connector and mounting.

For 4G MIMO, a dual-polarized part such as the GL1727D-15 fits. For compact 5G mid-band sector coverage, the GL3742V-9 is the closer match.

If you already know the band, mounting location and target area, move from category to product via the application overview or request a quote.
