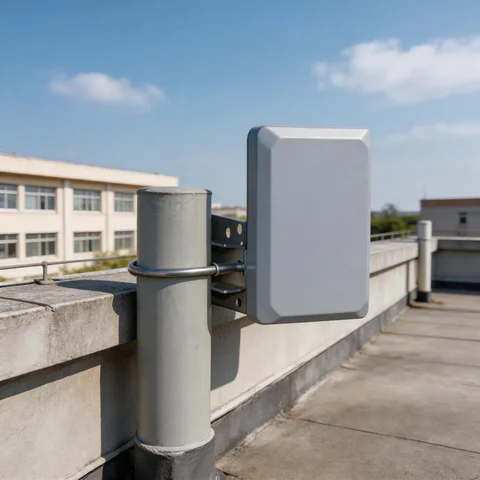

GL3742V-9 Small Panel antenna application scene 1

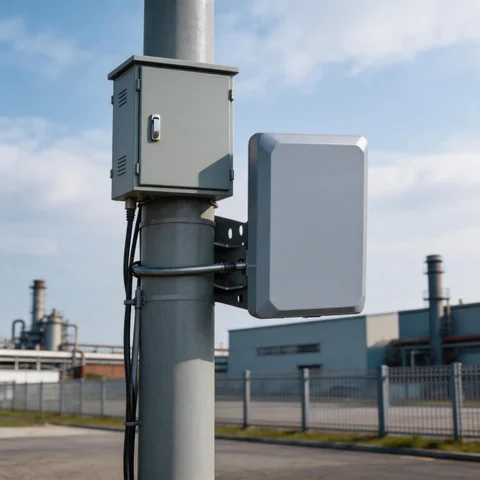

GL3742V-9 Small Panel antenna application scene 2

GL3742V-9 Small Panel antenna connector and mounting detail view

RF Product Flat Panel Antenna

GL3742V-9 3.75-4.25GHz N-F Small Panel Antenna for RF

Name: GL3742V-9 3.75-4.25GHz N-F Small Panel Antenna for RF
Brand: Rftech
SKU: GL3742V-9

SKU GL3742V-9

GL3742V-9 is a Small Panel antenna for RF systems, IoT devices, gateways and custom wireless projects. Its RF data lists 3750-4250 MHz operation, vertical polarization, and VSWR ≤2.0. Mechanical selection should confirm N-F connector, 103×81×20mm dimensions against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40°C to +65 °C, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family. Any connector, cable or mounting option not shown on this page should be confirmed before quotation.

SKU GL3742V-9

Frequency 3750-4250

Dimensions 103×81×20mm

polarization Vertical

vswr ≤2.0

connector N-F

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL3742V-9
Frequency	3750-4250
Dimensions	103×81×20mm
polarization	Vertical
vswr	≤2.0
connector	N-F
temperature	-40°C to +65 °C
Category	Flat Panel Antenna

Product Overview

Key Features

Technical Specifications

Horizontal Beamwidth	65°
Vertical Beamwidth	30°
VSWR	≤2.0
Polarization	Vertical
Lightning Protection	DC Ground
Connector Type	N-F
Radome Material	color，ABS
Operating Temperature	-40°C to +65 °C

Application Scenarios

GL3742V-9 is suitable for RF systems, IoT devices, gateways and custom wireless projects. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL3742V-9 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL3742V-9 3.75-4.25GHz N-F Small Panel Antenna for RF is listed by Rftech for RF antenna and wireless connectivity projects in the Flat Panel Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL3742V-9).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
