Yagi Antenna GL-0809Z8A
SKUGL-0809Z8A

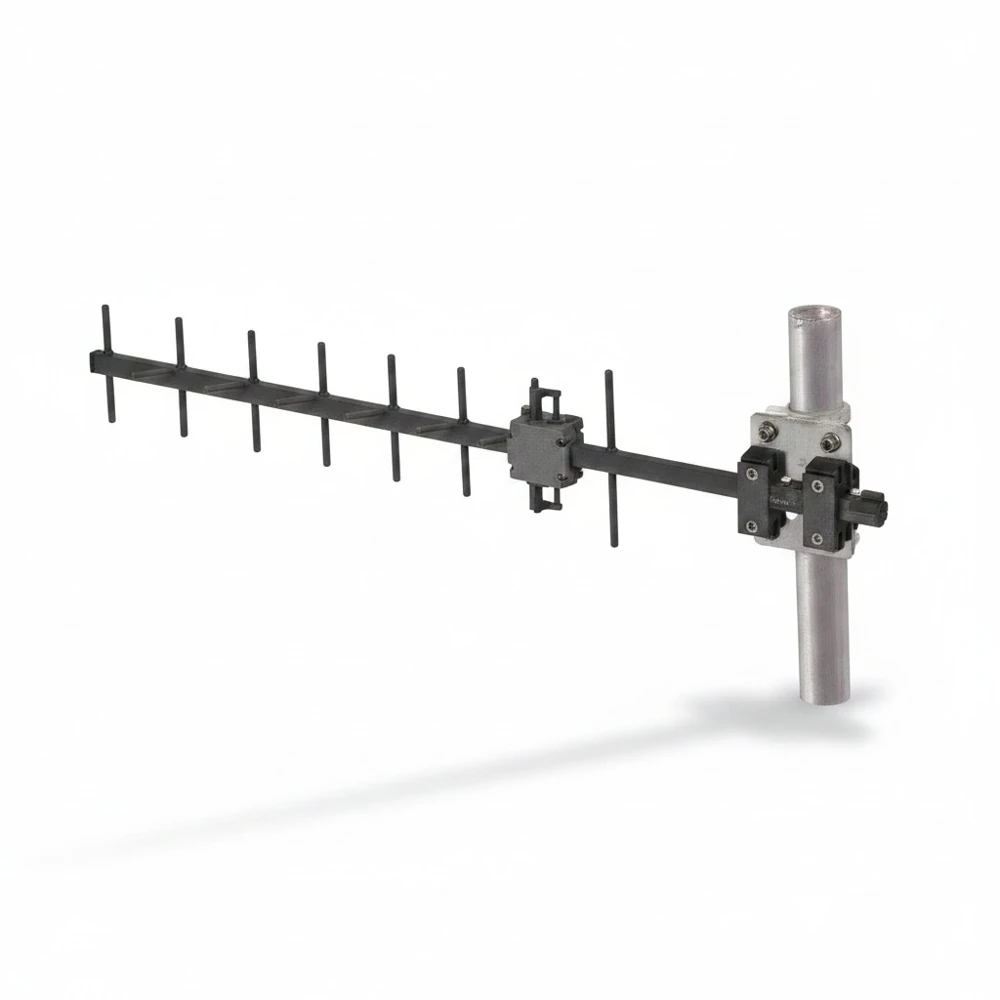

GL-0809Z8A is a yagi antenna specified for 806-960 MHz. The gain specification is 10 dBi.
The specified connector is 1*N-F. The dimensions are 760×195 mm. These details help check the connection and available space for the intended installation.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.
Product details
GL-0809Z8A is a Yagi antenna with one specified frequency window. It is a candidate when the channel requirement sits within that window and a Yagi format is being considered. A multiband log-periodic model such as GL-0727DSAL-M serves a different band plan and should be compared on that basis.
Allow for the 760 mm listed length when checking the available space. Its N-female interface should be matched to the feed cable. The documented gain and dimensions support model selection, but they do not by themselves establish a coverage distance for the finished installation.
Current documentation
Downloads
Files shown here are linked to this exact product record.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL-0809Z8A | 806-960 MHz | — | — | |
| GL-DY2400Y14 | 2400-2500MHz | 14.5dBi | — | View model |
| GL-DYJ150B | 134-173 MHz | 9 dBi | UHF or N female | View model |
| GL-DYJ150C | 134-173 MHz | 11.2 dBi | UHF or N female | View model |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
