Frequency134-173 MHz
Bandwidth8 MHz
GainOmni-9 / Directional-12 dBi
Vertical Beamwidth13°
Nominal Impedance50 Ω
PolarizationVertical
Maximum Input Power100 W
RF Product · Folded Dipole Antenna
134-173 MHz Omni-9 / Directional-12 dBi Folded Dipole Antenna GL-DY150IA
SKUGL-DY150IA

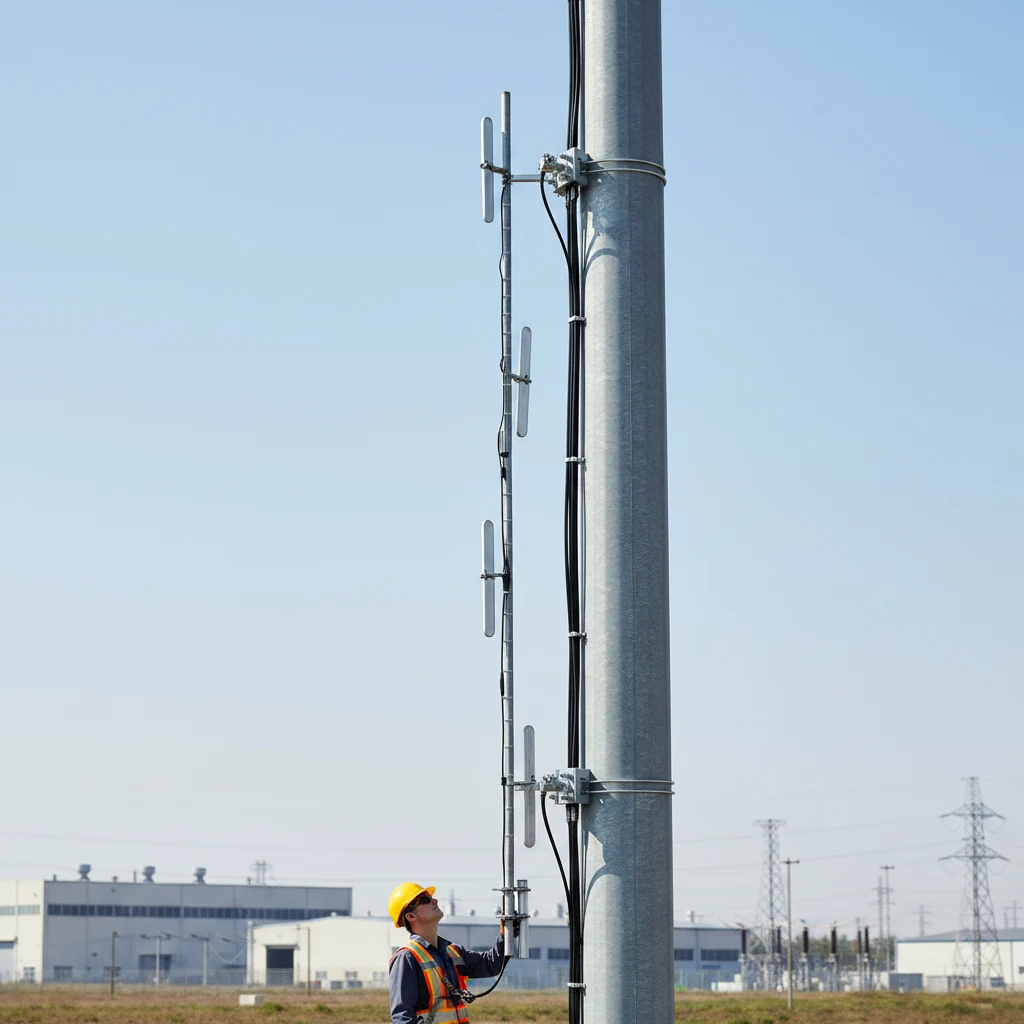

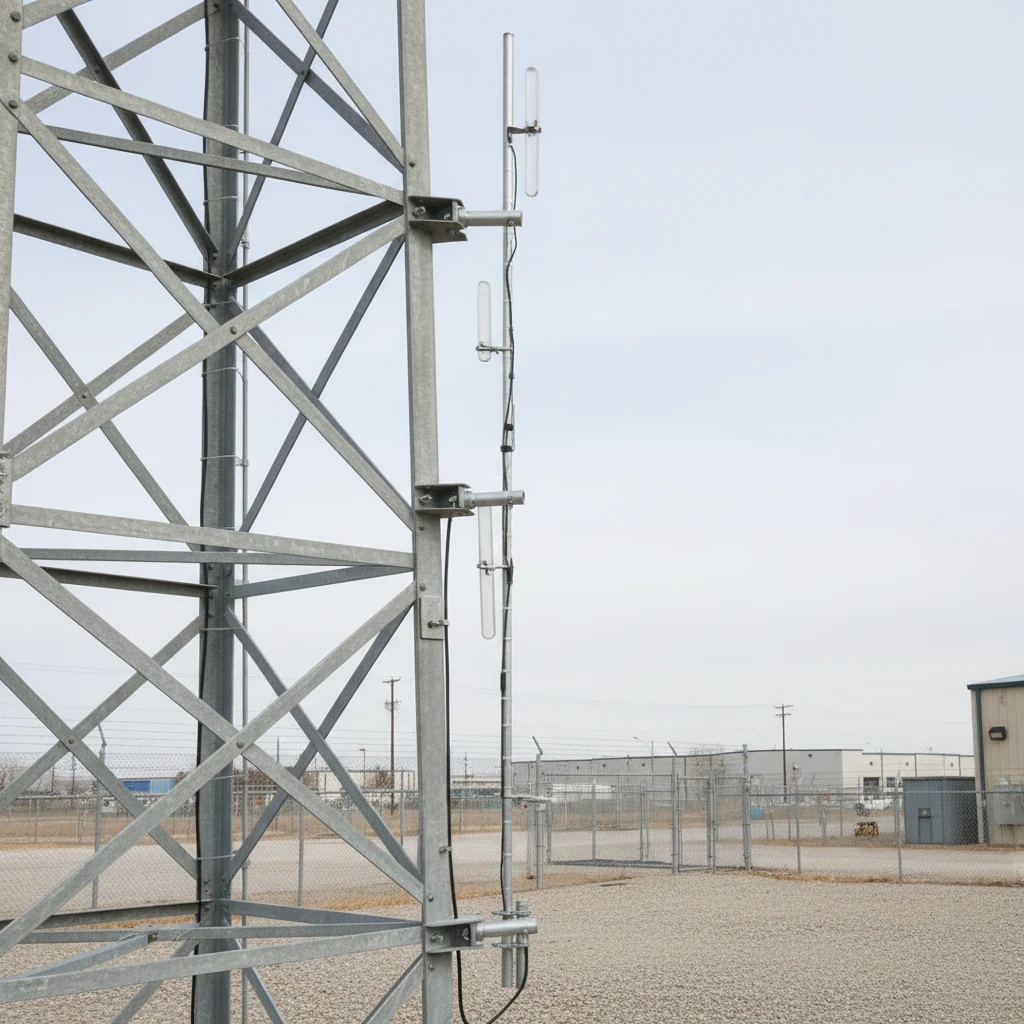

Four-bay VHF folded dipole array for 134-173 MHz, configurable for 9 dBi omnidirectional or 12 dBi directional coverage on a 6.7 m structure with UHF or N-female feed.
134-173 MHzUHF or N femaleVHF folded dipole array 9 dBi omni
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-DY150IA
Frequency134-173 MHz
ConnectorUHF or N female
ApplicationVHF folded dipole array 9 dBi omni
Bandwidth8 MHz
GainOmni-9 / Directional-12 dBi
Vertical Beamwidth13°
Nominal Impedance50 Ω
PolarizationVertical
Maximum Input Power100 W
Length6.7 m
Weight11 kg
Rated Wind Velocity60 m / s
RemarksSeparated into two parts
CategoryFolded Dipole Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.ConnectorUHF or N female
Length6.7 m
Weight11 kg
Rated Wind Velocity60 m / s
SKUGL-DY150IA
ApplicationVHF folded dipole array 9 dBi omni
RemarksSeparated into two parts
CategoryFolded Dipole Antenna
Documented use cases
Applications
Application labels below are stored on this product.Same product family
