Frequency270-290 MHz
Bandwidth10 MHz
GainOmni 9 / Directional 12 dBi
Vertical Beamwidth13°
Nominal Impedance50 Ω
PolarizationVertical
Maximum Input Power200 W
RF Product · Folded Dipole Antenna
Omni 9 / Directional 12 dBi Folded Dipole GL-DY280IA
SKUGL-DY280IA

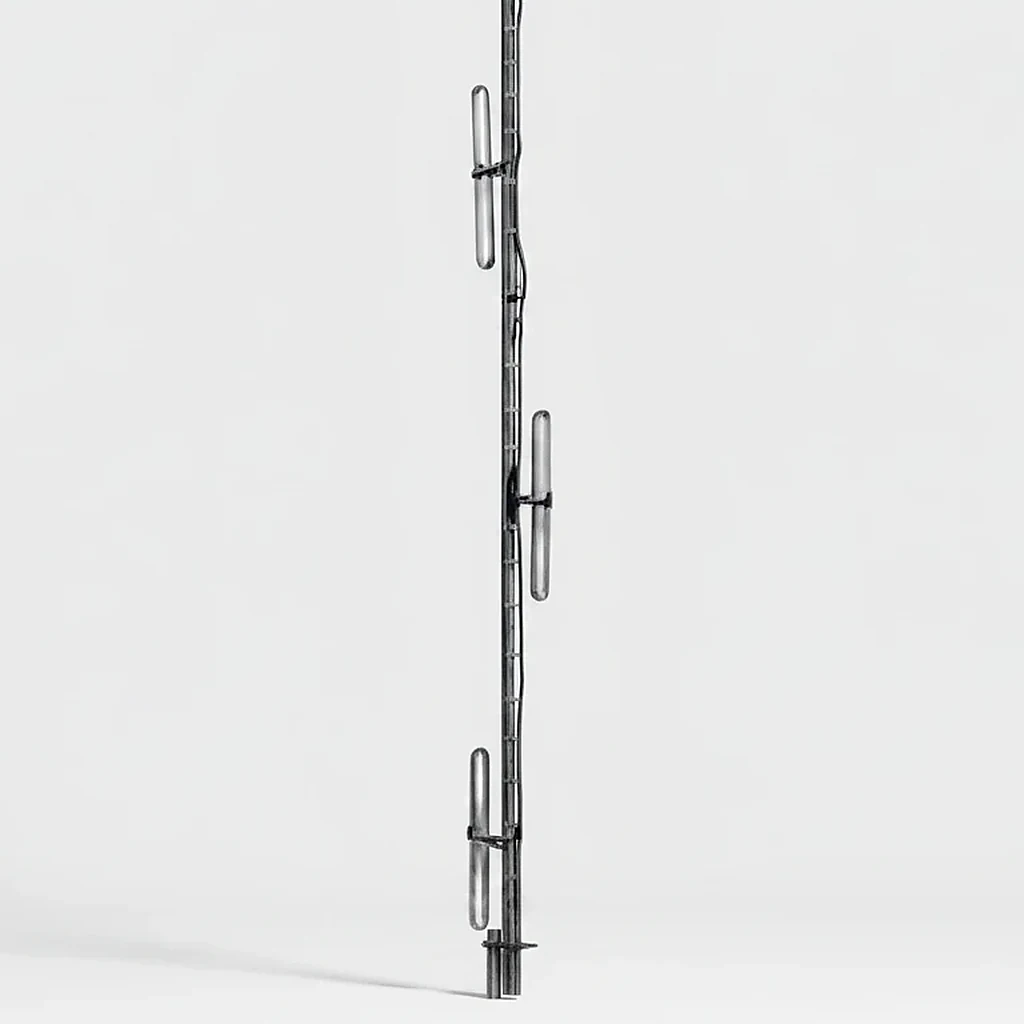

Four-bay folded dipole array for 270-290 MHz, configurable for 9 dBi omni or 12 dBi directional coverage, rated 200 W on a compact 3.6 m structure.
270-290 MHzUHF or N female270-290 MHz folded dipole base station antenna
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-DY280IA
Frequency270-290 MHz
ConnectorUHF or N female
Application270-290 MHz folded dipole base station antenna
Bandwidth10 MHz
GainOmni 9 / Directional 12 dBi
Vertical Beamwidth13°
Nominal Impedance50 Ω
PolarizationVertical
Maximum Input Power200 W
Length3.6 m
Weight8 kg
Rated Wind Velocity60 m / s
RemarksSeparated into t wo parts
CategoryFolded Dipole Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.ConnectorUHF or N female
Length3.6 m
Weight8 kg
Rated Wind Velocity60 m / s
SKUGL-DY280IA
Application270-290 MHz folded dipole base station antenna
RemarksSeparated into t wo parts
CategoryFolded Dipole Antenna
Documented use cases
Applications
Application labels below are stored on this product.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL-DY280IA | 270-290 MHz | Omni 9 / Directional 12 dBi | UHF or N female | View model |
| GL-DY150I | 134-173 MHz | Omni-8.8 / Directional- 11.8 dBi | UHF or N female | View model |
| GL-DY150IA | 134-173 MHz | Omni-9 / Directional-12 dBi | UHF or N female | View model |
| GL-DY150II | 134-173 MHz | Omni-8.8 / Directional-14.8 dBi | UHF or N female | View model |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
