GL-DY350IIA 330-400 MHz Omni 12 / Directional 15 dBi Folded Dipole Antenna

High-Gain UHF Base Antenna

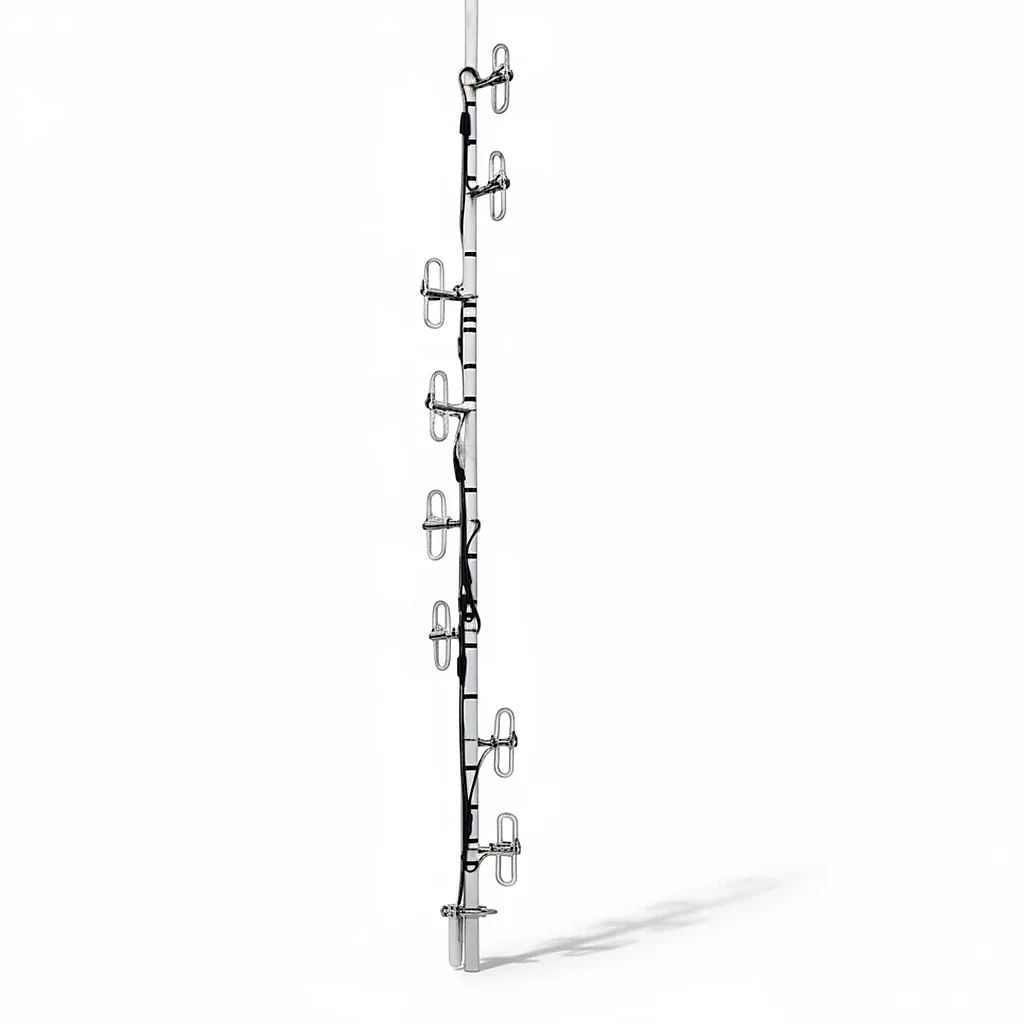

The GL-DY350IIA is the eight-bay folded dipole array for the 330-400 MHz band, combining high gain with a 500 W power rating. It delivers 12 dBi omnidirectional or 15 dBi directional, doubling the bays of the four-bay model to extend range and coverage. At 6 m it is taller than the compact four-bay version but still moderate for a UHF antenna, making strong gain practical at sites that need to reach far.

Coverage and Power

Eight stacked bays narrow the vertical beam and direct energy along the horizon, which is what extends ground range; the omnidirectional 12 dBi blankets a wide area while the directional 15 dBi focuses on one sector for long links or edge coverage. The 500 W rating supports demanding trunked, paging and data transmitters running continuously, and the broadband folded dipoles keep the match stable across the full 330-400 MHz span. Vertical polarization matches professional and government UHF systems.

Construction

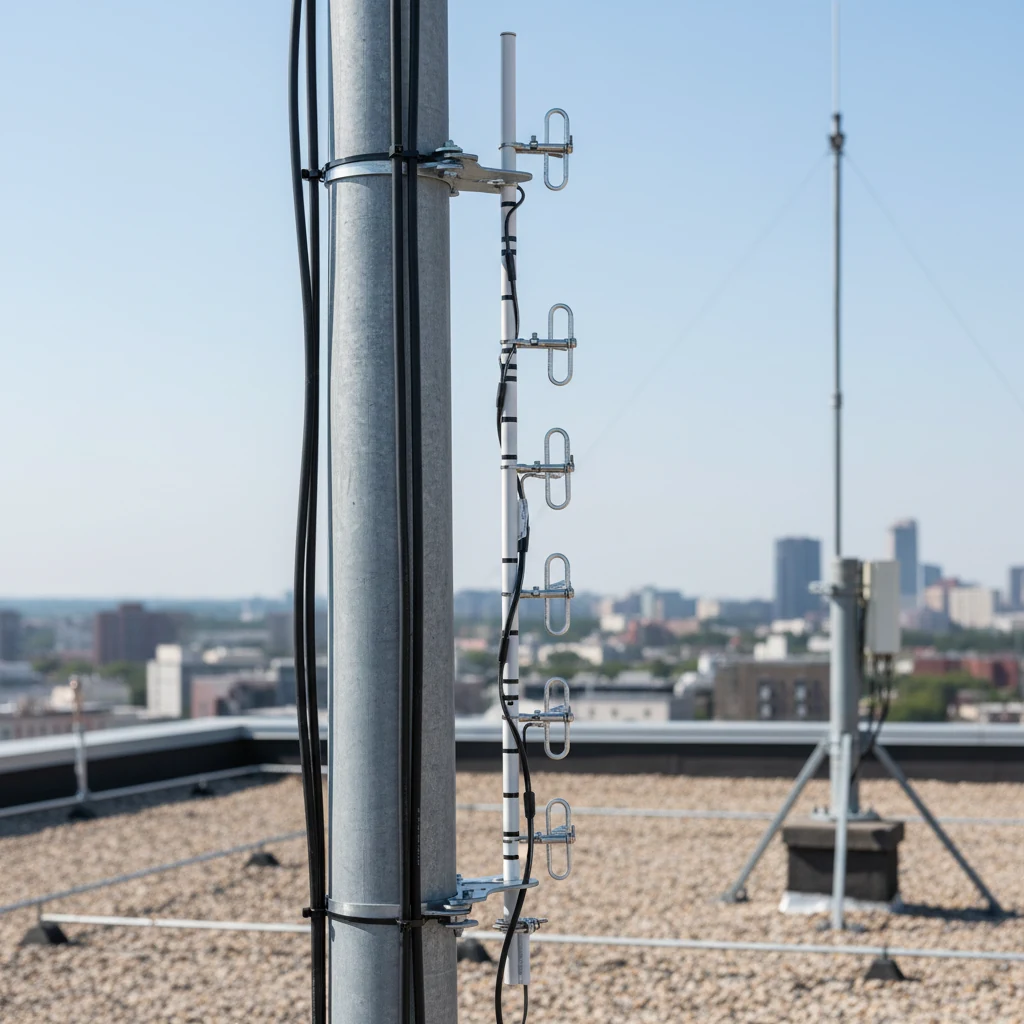

The 6 m array ships separated into two parts for transport and on-site assembly, with a 50 ohm feed on a UHF or N-female connector. A 60 m/s wind rating and heavy-duty hardware support permanent mast-top service; a solid mast and professional installation are recommended given the aperture.

Where It Excels

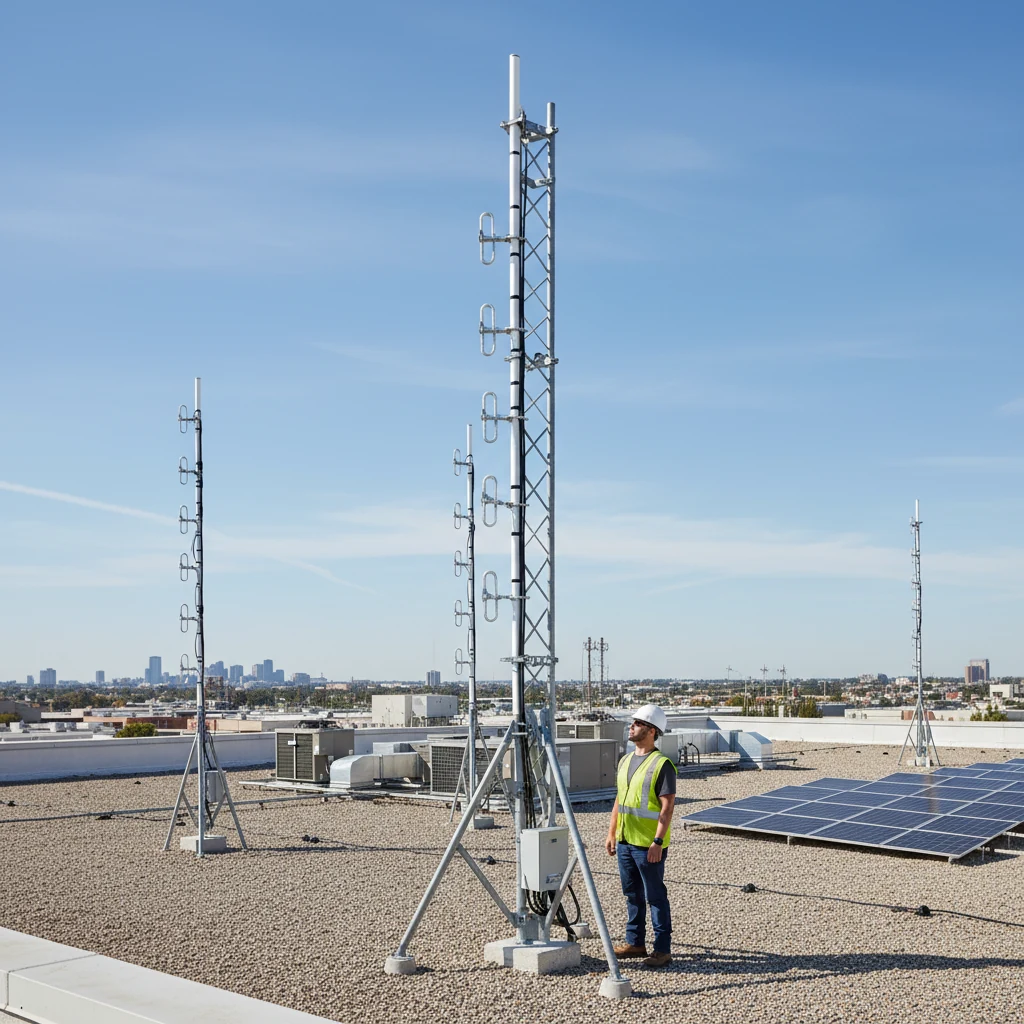

• Wide-area UHF coverage from a high site
• High-power trunked, paging and dispatch transmitters
• Long-range directional UHF links and sector coverage
• Regional utility, transport and government networks

Choosing the Antenna

Specify GL-DY350IIA when the four-bay GL-DY350IA lacks gain or range and the site can carry a 6 m antenna. Confirm omni or directional configuration, mast capacity and connector before deploying.
