Frequency300-390 MHz
Bandwidth16 MHz
Gain12 dBi
Vertical Beamwidth32°
Horizontal Beamwidth36°
Nominal Impedance50 Ω
PolarizationVertical or Horizontal
Maximum Input Power100 W
RF Product · Yagi Antenna
Yagi Antenna 12 dBi 300-390 MHz GL-DYJ350B
SKUGL-DYJ350B
Twelve-element wideband UHF Yagi spanning 300-390 MHz at 12 dBi on a 1.8 m boom, with an N-female or custom connector and 100 W rating.
300-390 MHzN Female or Customizationwideband UHF Yagi antenna 300-390 MHz
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesPaid sample; fee credited toward a volume order
Standard lead time14 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-DYJ350B
Frequency300-390 MHz
ConnectorN Female or Customization
Applicationwideband UHF Yagi antenna 300-390 MHz
Bandwidth16 MHz
Gain12 dBi
Elements12 elements
Vertical Beamwidth32°
Horizontal Beamwidth36°
Nominal Impedance50 Ω
PolarizationVertical or Horizontal
Maximum Input Power100 W
Length1.8 m
Weight1.2 kg
Rated Wind Velocity60 m / s

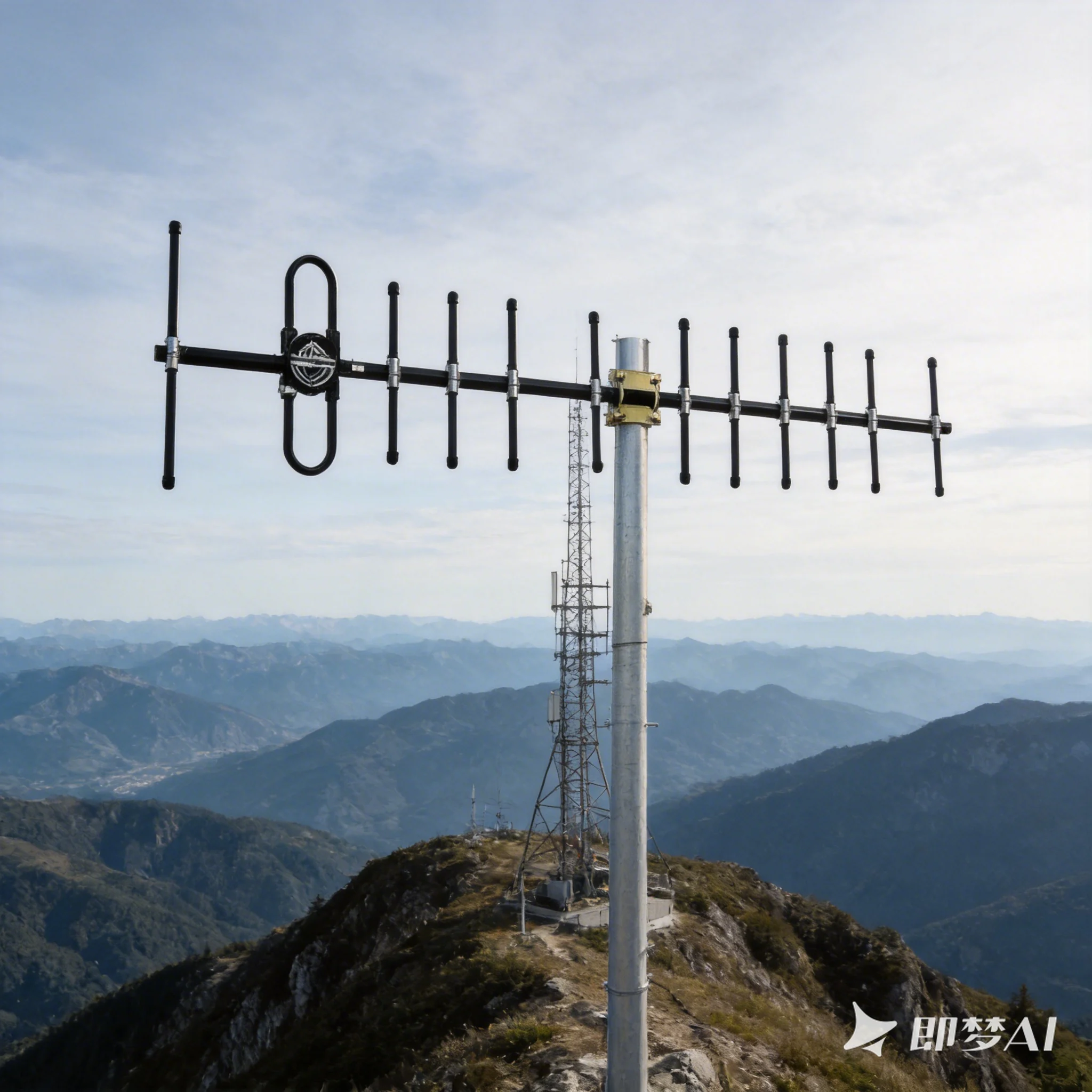

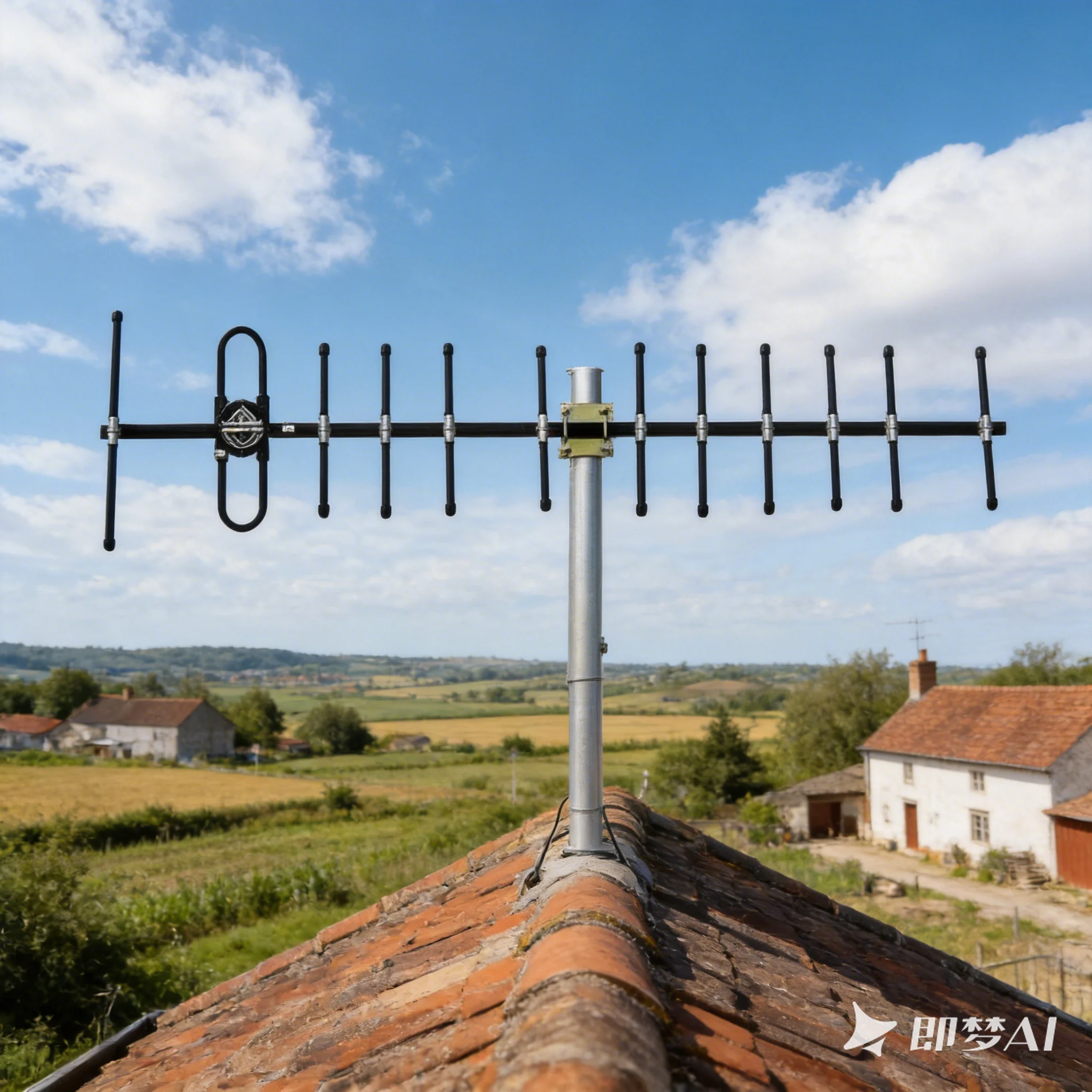

RemarksOutdoor pole installation
CategoryYagi Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.ConnectorN Female or Customization
Length1.8 m
Weight1.2 kg
Rated Wind Velocity60 m / s
SKUGL-DYJ350B
Applicationwideband UHF Yagi antenna 300-390 MHz
Elements12 elements
RemarksOutdoor pole installation
CategoryYagi Antenna
Documented use cases
Applications
Application labels below are stored on this product.Same product family
Related models
Published products from the same WooCommerce category.
RF Product
Discuss this model with an RF engineer
Send the required band, connector, installation limits and quantity. We will review the request against the selected model.Request a Quote→Compare product configurations
Compare the exact model and its published specifications before requesting a sample or production quote. A connector or cable change must be confirmed for the selected model.
| Model | Frequency | Gain | Connector | Datasheet |
|---|---|---|---|---|
| GL-DYJ350B | 300-390 MHz | 12 dBi | N Female or Customization | View model |
| GL-DYJ350A | 330-390 MHz | 11.2 dBi | N Female or Customization | View model |
| GL-DYJ350C | 330-390 MHz | 13 dBi | N Female or Customization | View model |
| GL400A | 400-480 MHz | 11.2 dBi | N Female or Customization | View model |
Values below are copied from the individual product records. Where a unit or value is not stated, consult the model datasheet before specifying the part.
Before ordering
- Match every required operating band, rather than relying only on a product-family name.
- Check connector gender, cable route, mounting space and the interface on your device.
- Use the exact model datasheet to confirm the test conditions and installation limits.
Select a standard model or discuss a change
For a standard configuration, send the model number and expected quantity. For a change, include the required band, enclosure space, cable length and connector. Sample availability, minimum order quantity and delivery are confirmed with the quotation.
Browse the product family · Product catalogs and datasheets · Custom antenna manufacturing · OEM / ODM antenna development
Purchasing questions
Which specifications should I confirm for this model?
Use the listed frequency, connector and mounting information together. Compare the values with your radio interface and available installation space; do not substitute parameters from a similar-looking model.
Can I change the cable or connector?
Describe the cable length, connector type and installation constraints in your enquiry. A change is subject to review for this exact model; the published configuration is the reference until a revised specification is confirmed.
What should I send for a sample or production quote?
Include the model, expected quantity, delivery destination and any drawing or interface requirement. Ask for confirmation of the sample configuration, lead time and production terms before placing an order.
Discuss your antenna requirements
Send the model, operating band and installation requirements. We will review the configuration and confirm pricing, samples and delivery for your project.
