GL-DY230C 220-290 MHz 11.2 dBi Yagi Antenna

What It Delivers

The GL-DY230C steps up the 220-290 MHz Yagi family to eight elements on a 1.5 metre boom, lifting forward gain to 11.2 dBi. The extra directors sharpen the beam and add roughly 2 dB over the 5-element model, which on a real path can be the difference between a marginal link and a solid one. It is the practical mid-range choice for fixed directional service on the 220 MHz band.

Pattern and Rejection

Eight elements tighten the main lobe to a 40 degree vertical and 44 degree horizontal beamwidth and raise the front-to-back ratio to 16 dB. The narrower beam puts more energy on the distant station and the improved rejection keeps unwanted signals from the rear and sides out of the receiver, which is valuable on congested bands or where multiple links share a tower. As with the rest of the series, vertical or horizontal polarization is selected by the mounting orientation.

Mechanical and Electrical

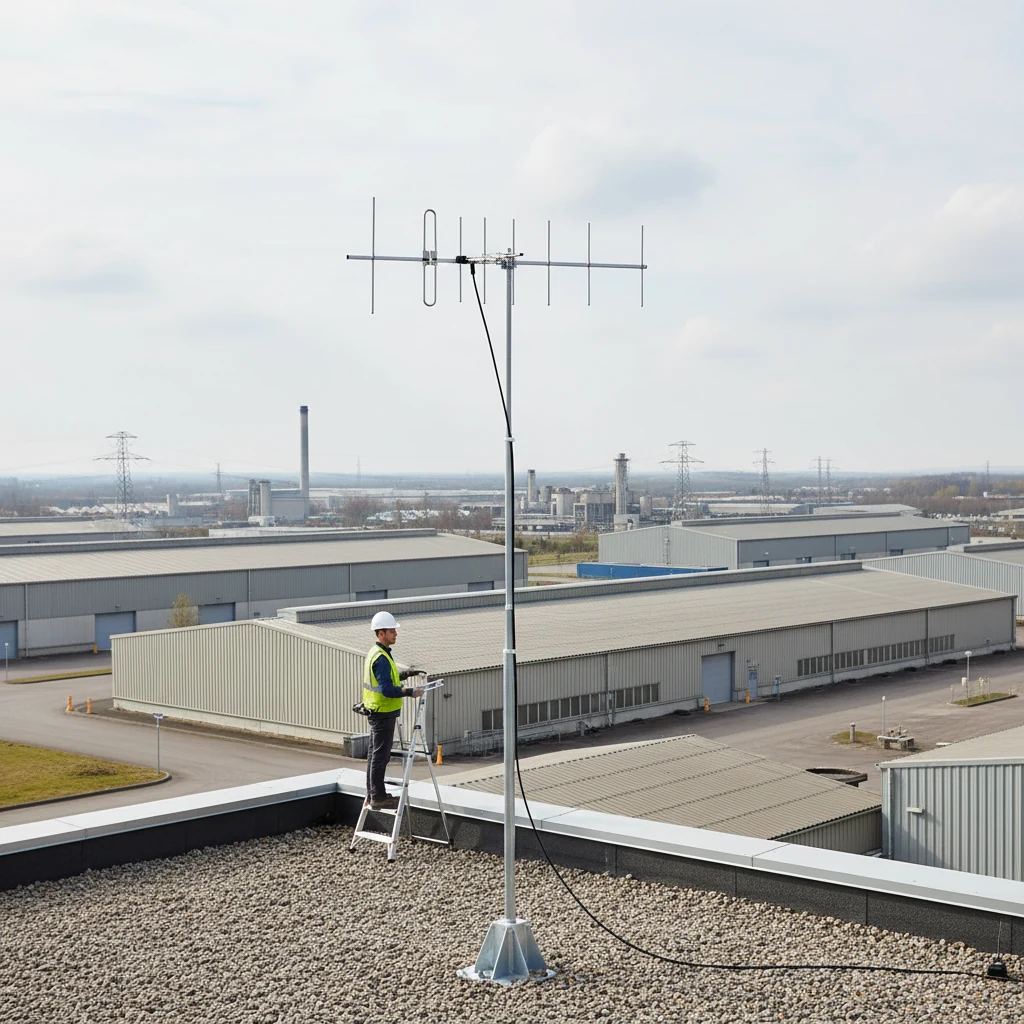

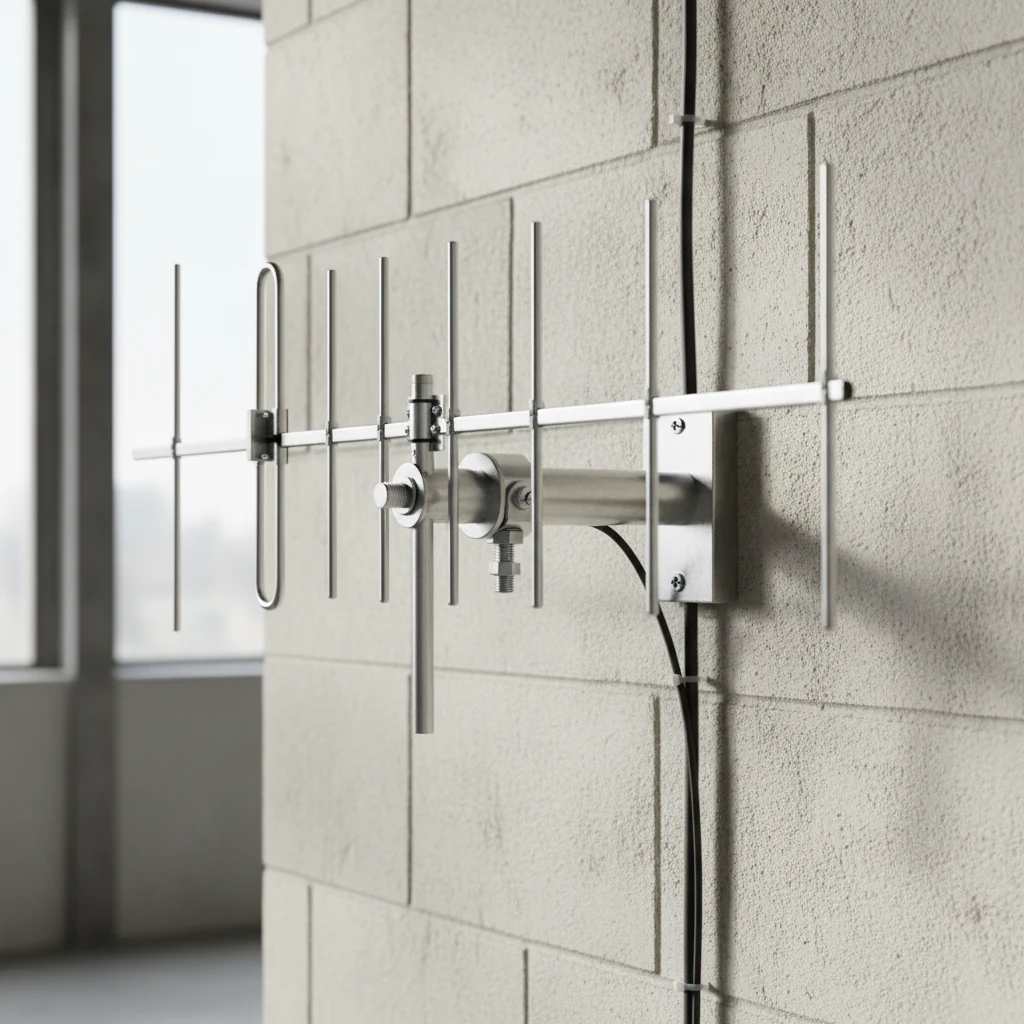

The antenna is fed at 50 ohms through an N-female connector and rated for 100 W, matching common repeater and data transmitters. The 1.5 m boom remains manageable for a single installer while giving the longer aperture needed for the higher gain, and the 60 m/s wind rating supports year-round outdoor mounting on a mast or tower leg.

Typical Deployments

• Medium-range 220 MHz fixed links and repeater interconnects
• Base-to-base data and telemetry paths over a few kilometres
• Directional coverage into a specific valley, corridor or site
• Interference mitigation where a cleaner pattern is needed

Where It Sits in the Range

Pick GL-DY230C when the 5-element GL-DY230B runs short of margin but a full 10-element beam is more than the path needs. For longer links move to the GL-DY230D, and for maximum gain consider the stacked GL-DY230E. Verify operating channel and far-end polarization before commissioning.
