GL-DY230Z5 223-235 MHz 8 dBi Yagi Antenna

Band-Specific Directional Antenna

The GL-DY230Z5 is a 5-element Yagi tuned to the narrow 223-235 MHz segment rather than the full 220-290 MHz span, with an SMA male connector and a 50 W rating. Narrowing the design to 12 MHz of bandwidth lets it hold a cleaner match and slightly different element tuning suited to equipment that works specifically in the 223 MHz region, while the SMA fitting and lighter build point it toward compact and portable systems rather than heavy fixed stations.

Performance

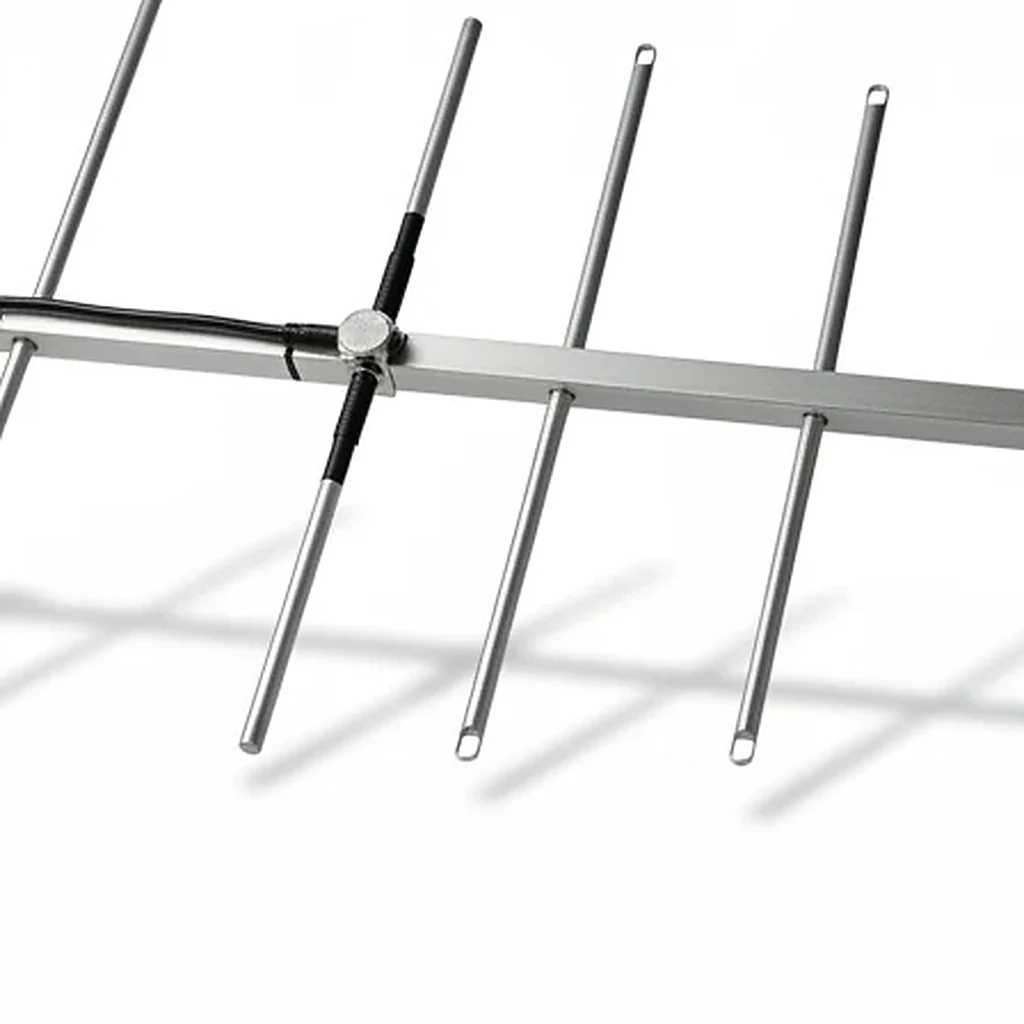

The five elements provide 8 dBi of forward gain with a 14 dB front-to-back ratio, a 58 degree vertical and 75 degree horizontal beamwidth. That slightly wider beam is forgiving to aim, which is helpful for temporary setups, hand-aimed direction finding and field links where precise alignment is impractical. Vertical or horizontal polarization is selected by mounting orientation, and the 50 ohm feed keeps it compatible with standard radios and analysers.

Compact and Portable

On a 1 m boom and fitted with an SMA male connector, the antenna mates directly to handheld analysers, low-power data radios and SDR front-ends without adapters, and the modest 50 W rating matches that class of equipment. The light structure is quick to assemble on a tripod or light mast and easy to carry to site.

Where It Is Used

• Fixed and portable links in the 223-235 MHz segment
• Direction finding and signal hunting with handheld receivers
• Low-power data and telemetry on SMA-equipped radios
• Field test and survey work needing a small directional beam

Specifying the Antenna

Choose GL-DY230Z5 when your equipment is confined to 223-235 MHz and uses an SMA interface at modest power. For the wider 220-290 MHz band and N-female high-power service, the GL-DY230B through GL-DY230E beams provide more gain and rating. Confirm the channel and connector before ordering.
