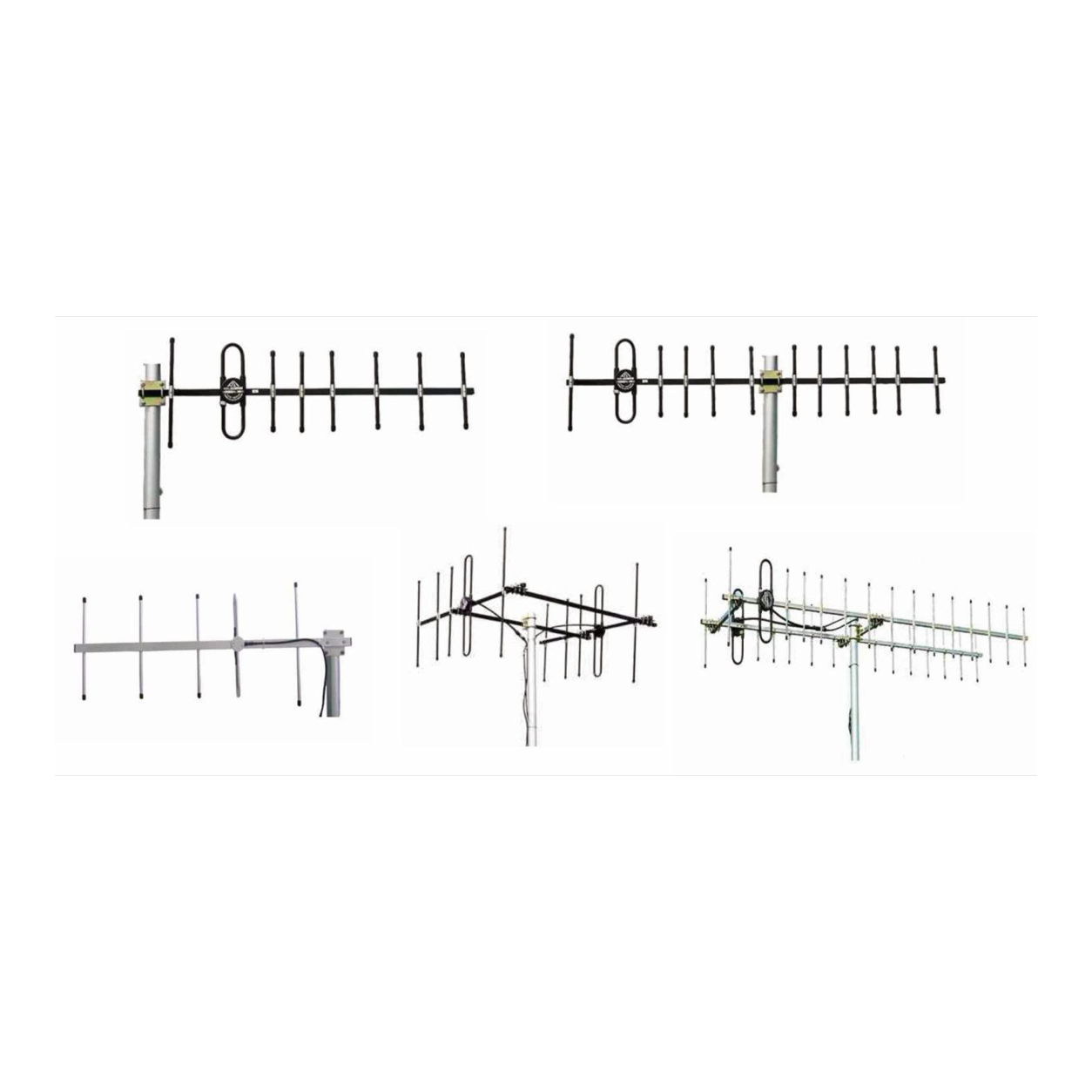

GL400B 400-480 MHz 12 dBi Yagi Antenna
SKU GL400B
GL400B is a 400-480 MHz Yagi Antenna for directional uhf fixed-site antenna, with 12 dBi gain, N Female or Customization connector and Outdoor pole mount.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL400B |
|---|---|
| Frequency | 400-480 MHz |
| Dimensions | 1.5 m |
| Connector | N Female or Customization |
| Mounting | Outdoor pole mount |
| Application | Directional UHF fixed-site antenna |
| Bandwidth | 28 MHz |
| Gain | 12 dBi |
| Vertical Beamwidth | 32 ° |
| Horizontal Beamwidth | 36 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical or Horizontal |
| Maximum Input Power | 100 W |
| Length | 1.5 m |
| Weight | 1 kg |
| Rated Wind Velocity | 60 m/s |
| Category | Yagi Antenna |
Yagi Antenna Role
GL400B is a 400-480 MHz Yagi Antenna for outdoor UHF links requiring a 12 dBi directional antenna. Its source record lists 12 dBi gain, N Female or Customization connector and Outdoor pole mount, so the product page is kept tied to those exact ordering details.
RF and Mechanical Fit
The antenna uses Vertical or Horizontal polarization, 50 Ω nominal impedance and <=1.5 VSWR. The documented power rating is 100 W, and the published size is 1.5 m. Confirm cable loss, mating connector and mounting hardware before installation.
Installation Notes
Use GL400B where the 400-480 MHz range, 12 dBi gain and N female interface fit the point-to-point design. Do not substitute a similar GL-DY or adjacent Evelyn model unless the frequency range, connector, mounting method and mechanical envelope have all been checked against the project requirement.
Application Fit
- Directional UHF fixed-site antenna
- Systems that operate inside 400-480 MHz and require a 50 Ω antenna path
- OEM or project builds where the SKU, connector and mounting details are stated before quotation
Selection Questions
What should be confirmed before ordering GL400B?
Confirm the operating channels, requested connector, installation method and whether the documented 1.5 m size is acceptable for the equipment or support structure.
Can this model be swapped with a nearby SKU?
Only after engineering review. Several Evelyn models share a similar frequency family but differ by suffix, connector, power rating, gain, mount or physical length.
Related Resources
- Browse antenna products
- Compare omnidirectional and directional antenna choices
- Request a model-specific quotation
Source-Specific Note
The listed vertical beamwidth is 32 °.
Technical Specifications
| Frequency Range | 400-480 MHz |
|---|---|
| Bandwidth | 28 MHz |
| Gain | 12 dBi |
| Vertical Beamwidth | 32 ° |
| Horizontal Beamwidth | 36 ° |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical or Horizontal |
| Maximum Input Power | 100 W |
| Length | 1.5 m |
| Weight | 1 kg |
| Rated Wind Velocity | 60 m/s |
| Connector | N Female or Customization |
Selection and Project Support
GL400B 400-480 MHz 12 dBi Yagi Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Yagi Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL400B).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
