GL-DYC-240 Satellite Dish Antenna, 240 cm, 38.39 dB

Name: GL-DYC-240 Satellite Dish Antenna, 240 cm, 38.39 dB
Brand: Rftech
SKU: GL-DYC-240

SKU GL-DYC-240

GL-DYC-240 is a satellite dish antenna for C-band satellite reception, earth station projects and large outdoor dish antenna installations. The listing uses model-specific PDF values including dimension 240 cm long axle, gain 38.39 dB at C wave band plus 4GHz.

SKU GL-DYC-240

Dimensions 240 cm long axle

Application satellite TV reception, C-band or Ku-band receiving systems, residential rooftops and commercial installations

Model GLC-240

Gain 38.39 dB at C wave band plus 4GHz

Material Steel plate

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DYC-240
Dimensions	240 cm long axle
Application	satellite TV reception, C-band or Ku-band receiving systems, residential rooftops and commercial installations
Model	GLC-240
Gain	38.39 dB at C wave band plus 4GHz
Material	Steel plate
Petal Number	6 petals
Focal Length	900 mm
Finishing	Spray to mould
Support	Domain pillar
Pitch	0-90
Level	0-360
Wind Speed - Operation	25 m/sec
Wind Speed - Repeat	40 m/sec
Wind Speed - Survival	60 m/sec
Operating Temperature	-40 - 60 ℃
Category	Satellite Dish Antenna

Product Overview

GL-DYC-240 is a satellite dish antenna for C-band satellite reception, earth station projects and large outdoor dish antenna installations. Its technical values are taken from the selected SKU datasheet so engineers can check RF fit, mechanical fit and environmental requirements before sampling.

Key Features

Gain: 38.39 dB at C wave band plus 4GHz
Dimensions: 240 cm long axle

Technical Specifications

Model	GLC-240
Gain	38.39 dB at C wave band plus 4GHz
Dimensions	240 cm long axle
Material	Steel plate
Petal Number	6 petals
Focal Length	900 mm
Finishing	Spray to mould
Support	Domain pillar
Pitch	0-90
Level	0-360
Wind Speed – Operation	25 m/sec
Wind Speed – Repeat	40 m/sec
Wind Speed – Survival	60 m/sec
Operating Temperature	-40 – 60 ℃

Mechanical and Installation Notes

Review the listed connector, dimension, mounting method and operating environment before release. Reserve installation space for 240 cm long axle. If the project needs a variant not shown in the datasheet, confirm the option before ordering.

Applications and Industries

GL-DYC-240 can be considered for C-band satellite reception, earth station projects and large outdoor dish antenna installations. Typical checks include operating band, coverage pattern, connector or mounting compatibility, cable routing, environmental exposure and expected order quantity.

Resources

Product datasheet: GL-DYC-240.pdf

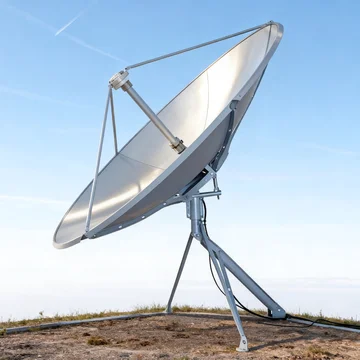

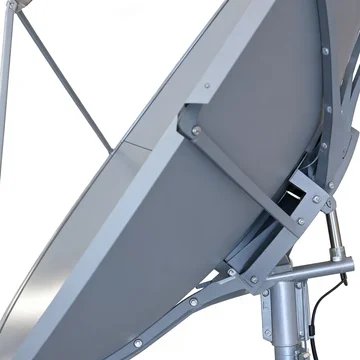

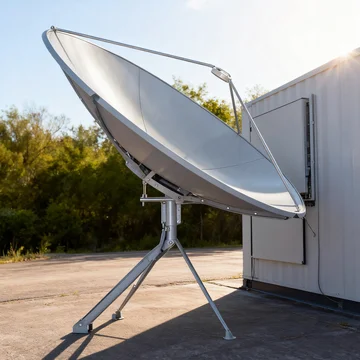

SKU-specific product image and three generated application images are included for this model.

Engineering Selection Notes

Before sampling, compare the datasheet values with the radio module, enclosure, installation surface and target service area. Share the SKU, frequency band, connector, mounting space and environment when requesting a quote.

FAQ

What is the main use for GL-DYC-240?

GL-DYC-240 is selected as a satellite dish antenna for C-band satellite reception, earth station projects and large outdoor dish antenna installations.

Which specification should be checked first?

Start with the operating band or mechanical size, then confirm connector, mounting and environmental requirements.

Can GL-DYC-240 be sampled or customized?

Yes. Provide the SKU, target band, connector or mounting requirements, environment, quantity and any packaging notes for confirmation.

Selection and Project Support

GL-DYC-240 Satellite Dish Antenna, 240 cm, 38.39 dB is listed by Rftech for RF antenna and wireless connectivity projects in the Satellite Dish Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DYC-240).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
