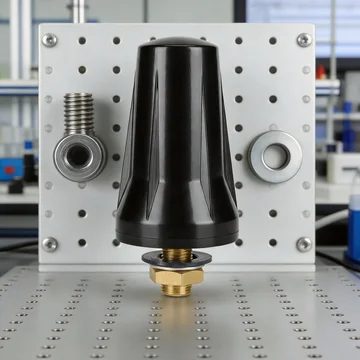

GL-DY023-4G 824~960/1710~2690MHz 2dBi（Zenith） SMA or others Screw Mount Antenna

Product Overview

GL-DY023-4G is a screw mount antenna prepared for outdoor enclosures, cabinets, routers, smart meters, industrial IoT and vehicle-mounted devices. The confirmed table includes Frequency Range: 824~960/1710~2690MHz; Gain: 2dBi（Zenith）; Polarization: Linear; VSWR: <2.0; Nominal Impedance: 50Ω.

This page is built from the model-specific local product document and image set. The product can be quoted or sampled from confirmed product data; request the latest formal drawing if the project requires additional documentation.

Key Features

• GL-DY023-4G Screw Mount Antenna for outdoor enclosures, cabinets, routers, smart meters, industrial IoT and vehicle-mounted devices
• Operating band: 824~960/1710~2690MHz
• Gain: 2dBi（Zenith）
• Polarization: Linear
• VSWR: <2.0
• Connector: SMA or others
• Cable: RG58 or others
• Installation: Method | Screw

Technical Specifications

Mechanical and Installation Notes

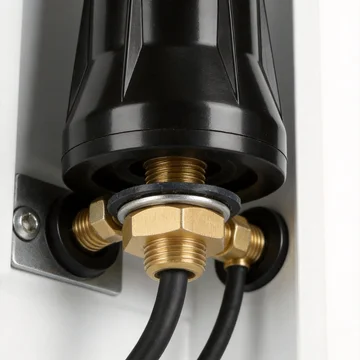

Use the listed mounting method: Method | Screw. Match the RF interface to SMA or others. Review operating limits against -40℃~+85℃.

Applications and Industries

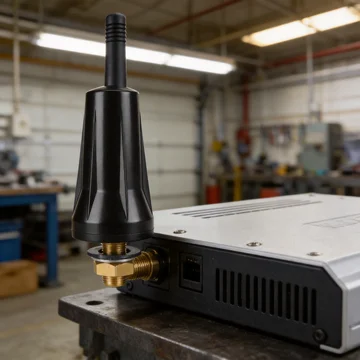

GL-DY023-4G can be considered for outdoor enclosures, cabinets, routers, smart meters, industrial IoT and vehicle-mounted devices. Match the operating band, gain, connector, mechanical size and installation method to the radio, enclosure and coverage target before release.

Resources

• Engineering file set: 1 supporting local document(s) used to prepare this listing
• Formal downloadable document: not attached in this upload package

Engineering Selection Notes

Before release or sampling, review the product against the target radio, receiver, enclosure, ground plane, cable route and installation surface. If a listed value does not match the project requirement, request a matching connector, cable length, bracket, color, label or packaging option.

Sampling and Customization Support

For sample support, provide SKU GL-DY023-4G, target frequency, connector type, cable length, mounting space, application environment, expected quantity and any packaging requirements. Rftech can confirm the closest standard model or a custom variant.

FAQ

What operating band does GL-DY023-4G support?

GL-DY023-4G is listed with 824~960/1710~2690MHz. Check this band against the module, network band or receiver requirement before sampling.

What connector details are available for GL-DY023-4G?

Connector: SMA or others. Cable: RG58 or others. Confirm variants before ordering.

How is GL-DY023-4G installed?

Installation: Method | Screw.

Can GL-DY023-4G be quoted from this listing?

Yes. This listing uses confirmed model-specific product data and images; request the latest formal document when procurement approval requires it.
