Frequency1575.42 ±3 / 1602 MHz
polarizationRHCP
vswr≤1.5
RF Product · GPS GLONASS Antenna
1575.42 ±3 / 1602 MHz IPEX GPS/GNSS Antenna GL-DY048-18
SKUGL-DY048-18

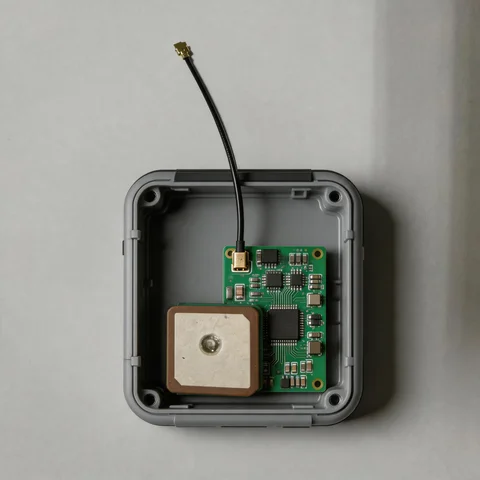

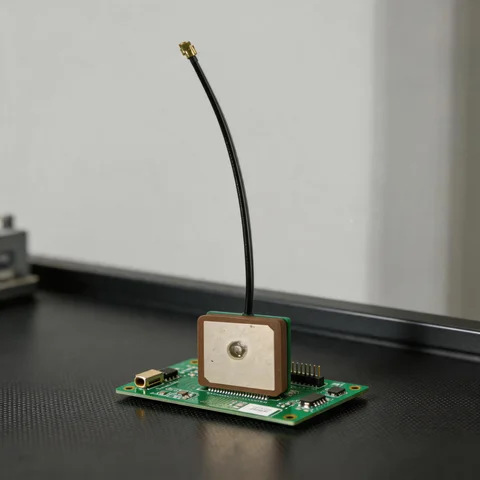

GL-DY048-18 is a GPS/GNSS antenna for positioning terminals, fleet tracking and embedded navigation systems. Its RF data lists 1575.42 ±3/1602 MHz operation, RHCP polarization, and VSWR ≤1.5. Mechanical selection should confirm IPEX or UFL connector, 18.6 × 18.6 × 7.5 mm dimensions against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40～＋85, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family. Any connector, cable or mounting option not shown on this page should be confirmed before quotation.
1575.42 ±3 / 1602 MHz18.6 × 18.6 × 7.5 mmRHCP
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-DY048-18
Frequency1575.42 ±3 / 1602 MHz
Dimensions18.6 × 18.6 × 7.5 mm
polarizationRHCP
vswr≤1.5
connectorIPEX or UFL
temperature-40～＋85
humidity5～75
CategoryGPS GLONASS Antenna
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.Dimensions18.6 × 18.6 × 7.5 mm
connectorIPEX or UFL
temperature-40～＋85
humidity5～75
SKUGL-DY048-18
CategoryGPS GLONASS Antenna
