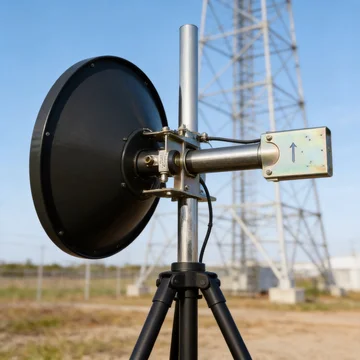

GL-DY2425V17 parabolic dish antenna application scene 2

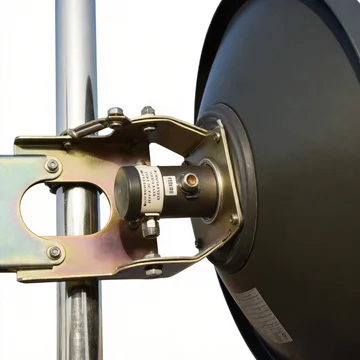

GL-DY2425V17 parabolic dish antenna connector and mounting detail view

RF Product Parabolic Dish Antenna

GL-DY2425V17 2.4-2.5GHz N-K Parabolic Dish Antenna

Name: GL-DY2425V17 2.4-2.5GHz N-K Parabolic Dish Antenna
Brand: Rftech
SKU: GL-DY2425V17

SKU GL-DY2425V17

GL-DY2425V17 is a parabolic dish antenna for 2.4GHz, WLAN, WIFI Wireless System; Point-to-point, point-to-multipoint systems. Its RF data lists 2400-2500 MHz operation, 17 dBi gain, vertical polarization, and VSWR ≤1.5. Mechanical selection should confirm N-K connector, 0.4×0.3 dimensions against the installation plan. Design details include high gain, high front-to-back ratio; anti-aging surface coati, giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°C to + 65 °C, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL-DY2425V17

Frequency 2400-2500

Dimensions 0.4×0.3

gain 17

polarization Vertical

vswr ≤1.5

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY2425V17
Frequency	2400-2500
Dimensions	0.4×0.3
gain	17
polarization	Vertical
vswr	≤1.5
impedance	50
connector	N-K
temperature	-40°C to + 65 °C
Category	Parabolic Dish Antenna

Product Overview

Key Features

High gain, high front-to-back ratio
Anti-aging Surface Coati

Technical Specifications

Frequency Range	2400-2500
Polarization	Vertical
VSWR	≤1.5
Gain	17
Horizontal Beamwidth	16°
Vertical Beamwidth	21°
Front-to-Back Ratio	≥20
Input Impedance	50
Maximum Input Power	100
Lightning Protection	DC Ground
Connector Type	N-K
Dimensions	0.4×0.3
Weight	1.4
Reflector Material	Aluminum
Reflecting Surface Color	Gray
Mechanical Tilt	0～20°
Operating Temperature	-40°C to + 65 °C
Rated Wind Velocity	60

Application Scenarios

GL-DY2425V17 is suitable for 2.4GHz, WLAN, WIFI Wireless System; Point-to-point, point-to-multipoint systems. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY2425V17 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY2425V17 2.4-2.5GHz N-K Parabolic Dish Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Parabolic Dish Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY2425V17).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
