GL-DY4091 Rubber Duck Antenna, 5150-5825, 5.0 dBi

Product Overview

GL-DY4091 is a rubber duck antenna for routers, gateways, modems, handheld devices, IoT terminals, and wireless communication equipment. The product datasheet lists Frequency Range: 5150-5825; Gain: 5.0 dBi; VSWR: ＜2.5; Nominal Impedance: 50 Ω; Polarization: Vertical.

This page uses the product’s own datasheet values for electrical and mechanical parameters, so buyers can confirm RF fit, connector fit, mechanical space, and environmental requirements before sampling.

Key Features

• GL-DY4091 rubber duck antenna for professional wireless terminals
• Operating band: 5150-5825
• Gain: 5.0 dBi
• VSWR: ＜2.5

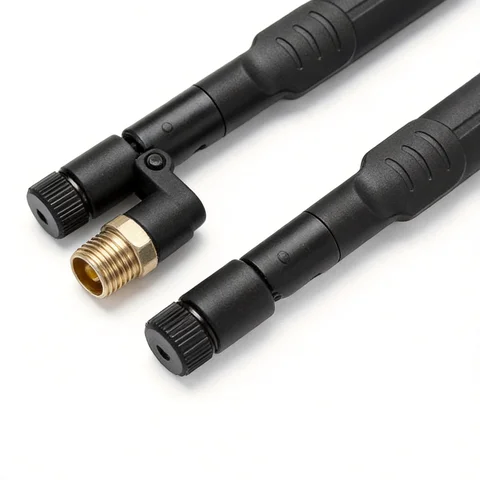

• Connector: SMA male
• Dimensions: Φ17.5*160 mm

Technical Specifications

Mechanical and Installation Notes

Confirm that the SMA male connector, Φ17.5*160 mm mechanical size, and 5150-5825 operating band match the target radio, enclosure, and installation space. For cable length, connector variant, packaging, or custom requirements, confirm the required configuration with Rftech before ordering.

Applications and Industries

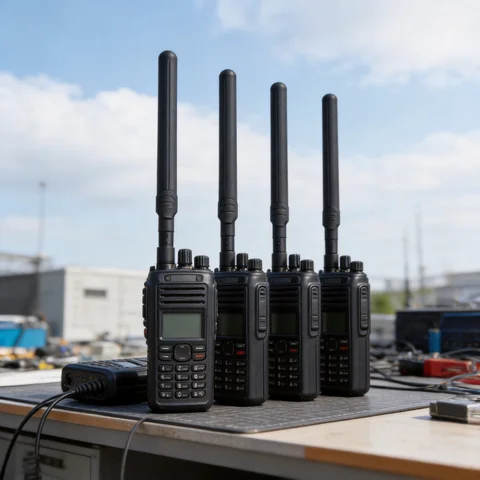

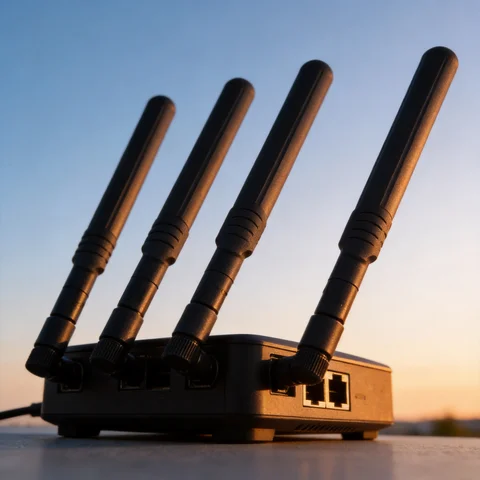

GL-DY4091 can be used in wireless routers, gateways, modems, handheld terminals, IoT devices, and communication equipment that require a compact external rubber duck antenna. Match the frequency, gain, connector, dimensions, and environmental limits to the target device before release.

Resources

• Product datasheet: gl-dy4091-rubber-duck-antenna-datasheet.pdf

Engineering Selection Notes

Before release or sampling, review the antenna against the target radio module, receiver sensitivity, enclosure clearance, cable route, ground conditions, and installation surface. If a listed value does not match the project requirement, request a matching standard item or custom variant.
