GL-DY411 Rubber Duck Antenna, 704-960/1710-2700, 2.5 dBi

SKU GL-DY411

GL-DY411 is a rubber duck antenna for routers, handheld radios, gateways, modems, IoT devices and wireless terminals. Key specifications include frequency 704-960/1710-2700, gain 2.5 dBi, and connector SMA male. It is suitable for compact RF terminals that require model-specific antenna matching and sampling support.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GL-DY411

Frequency 704-960/1710-2700

Dimensions Ø10.1*135 mm

Connector SMA Male

Application routers, handheld radios, gateways, modems, IoT devices and wireless terminals

Gain 2.5 dBi

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY411
Frequency	704-960/1710-2700
Dimensions	Ø10.1*135 mm
Connector	SMA Male
Application	routers, handheld radios, gateways, modems, IoT devices and wireless terminals
Gain	2.5 dBi
VSWR	<2.5
Bandwidth	170/990 MHz
Radiation	Omni
Nominal Impedance	50 Ω
Polarization	Vertical
Radome Material	ABS
Color	White (RAL 9003)
Operating Temperature	-40～+60 ℃
Compliance	ROHS Compliant
Category	Rubber Duck Antenna

Product Overview

GL-DY411 is a rubber duck antenna for routers, handheld radios, gateways, modems, IoT devices and wireless terminals. The product is specified from its own datasheet with frequency 704-960/1710-2700, gain 2.5 dBi, polarization Vertical, VSWR <2.5, and impedance 50 Ω.

This page is prepared for buyers who need to confirm RF fit, connector type, mechanical clearance, operating environment, datasheet access and sampling requirements before selecting a model.

Key Features

Operating band: 704-960/1710-2700
Gain: 2.5 dBi
Polarization: Vertical
VSWR: <2.5
Connector: SMA male
Dimensions: Ø10.1*135 mm

Technical Specifications

Frequency Range	704-960/1710-2700
Gain	2.5 dBi
VSWR	<2.5
Bandwidth	170/990 MHz
Radiation	Omni
Nominal Impedance	50 Ω
Polarization	Vertical
Connector Type	SMA male
Dimensions	Ø10.1*135 mm
Radome Material	ABS
Color	White (RAL 9003)
Operating Temperature	-40～+60 ℃
Compliance	ROHS Compliant

Mechanical and Installation Notes

Match the RF interface to the listed connector: SMA male. Reserve mechanical space for Ø10.1*135 mm. Check the operating environment against -40～+60 ℃. For connector, bracket, cable, color, label or packaging variants not shown in the table, confirm the configuration with Rftech before ordering.

Applications and Industries

GL-DY411 can be considered for routers, handheld radios, gateways, modems, IoT devices and wireless terminals. Typical selection checks include operating band, gain, polarization, connector, mounting space, cable path, temperature range, environmental exposure and quantity requirements.

Resources

Product datasheet: GL-DY411.pdf

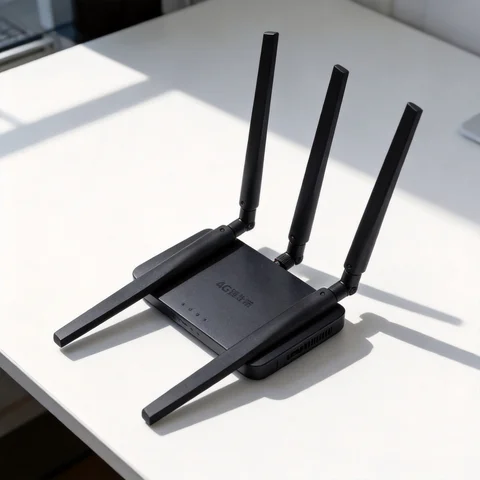

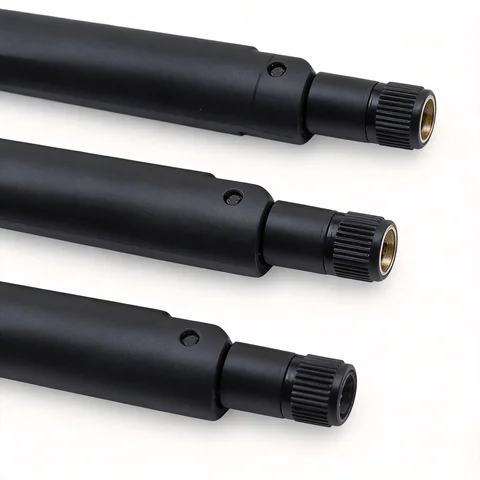

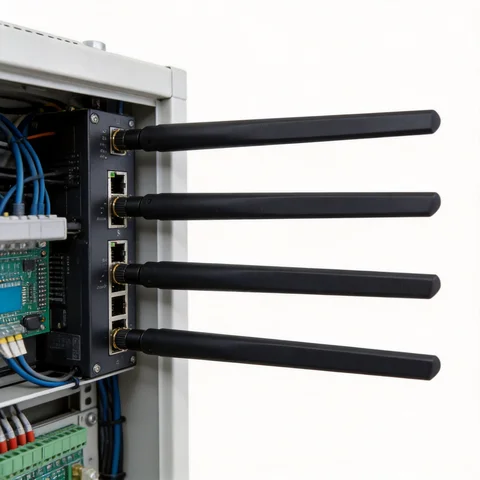

Model-specific product images and generated application images are prepared for this SKU.

Engineering Selection Notes

Before release or sampling, review the antenna against the target radio, enclosure, ground plane, cable route and installation surface. If a listed value does not match the project requirement, request a matching connector, mounting, color, label or packaging option.

FAQ

What operating band does GL-DY411 support?

GL-DY411 is listed with 704-960/1710-2700. Check this band against the radio module, network band or receiver requirement before sampling.

What connector is listed for GL-DY411?

The datasheet lists SMA male. If a different connector is required, confirm the variant with Rftech.

What mechanical size should be checked?

The listed dimension is Ø10.1*135 mm. Confirm available clearance and installation direction before final selection.

Can GL-DY411 be customized or sampled?

For sampling or customization, provide the SKU, target frequency, connector, installation space, environment, expected quantity and any packaging requirements.

Selection and Project Support

GL-DY411 Rubber Duck Antenna, 704-960/1710-2700, 2.5 dBi is listed by Rftech for RF antenna and wireless connectivity projects in the Rubber Duck Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY411).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
