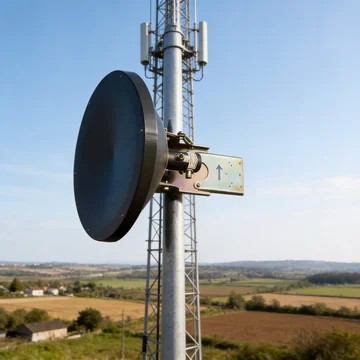

GL-DY5158V28 parabolic dish antenna application scene 1

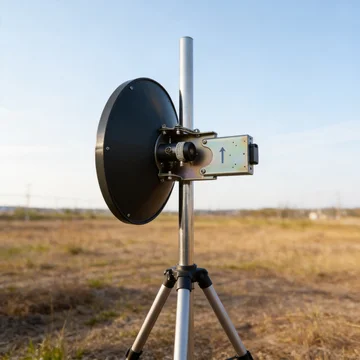

GL-DY5158V28 parabolic dish antenna application scene 2

GL-DY5158V28 parabolic dish antenna connector and mounting detail view

RF Product Parabolic Dish Antenna

GL-DY5158V28 5.15-5.85GHz N-K Parabolic Dish Antenna

Name: GL-DY5158V28 5.15-5.85GHz N-K Parabolic Dish Antenna
Brand: Rftech
SKU: GL-DY5158V28

SKU GL-DY5158V28

GL-DY5158V28 is a parabolic dish antenna for 5GHz, WLAN, WIFI Wireless System; Point-to-point, point-to-multipoint systems. Its RF data lists 5150-5850 MHz operation, 28 dBi gain, vertical polarization, and VSWR ≤2.0. Mechanical selection should confirm N-K connector, φ0.6 dimensions, φ50～φ75 mounting against the installation plan. Design details include high gain, high front-to-back ratio; anti-aging surface coati, giving buyers useful context for deployment constraints instead of only matching a model number. Operating temperature is listed as -40°C to + 65 °C, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL-DY5158V28

Frequency 5150-5850

Dimensions φ0.6

gain 28

polarization Vertical

vswr ≤2.0

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY5158V28
Frequency	5150-5850
Dimensions	φ0.6
gain	28
polarization	Vertical
vswr	≤2.0
impedance	50
connector	N-K
mounting	φ50～φ75
temperature	-40°C to + 65 °C
Category	Parabolic Dish Antenna

Product Overview

Key Features

High gain, high front-to-back ratio
Anti-aging Surface Coati

Technical Specifications

Frequency Range	5150-5850
Polarization	Vertical
VSWR	≤2.0
Gain	28
Horizontal Beamwidth	6°
Vertical Beamwidth	6°
Front-to-Back Ratio	≥35
Input Impedance	50
Maximum Input Power	100
Lightning Protection	DC Ground
Connector Type	N-K
Dimensions	φ0.6
Weight	5.5
Reflector Material	Aluminum
Reflecting Surface Color	Gray
Mechanical Tilt	0～20°
Operating Temperature	-40°C to + 65 °C
Rated Wind Velocity	60
Mounting	φ50～φ75

Application Scenarios

GL-DY5158V28 is suitable for 5GHz, WLAN, WIFI Wireless System; Point-to-point, point-to-multipoint systems. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL-DY5158V28 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL-DY5158V28 5.15-5.85GHz N-K Parabolic Dish Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Parabolic Dish Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY5158V28).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
