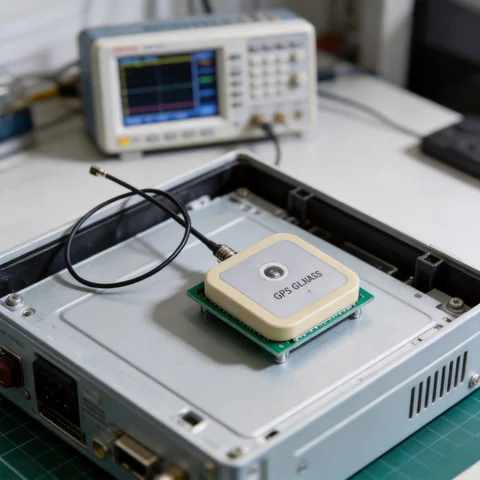

GL046 GPS/GNSS antenna application scene 1

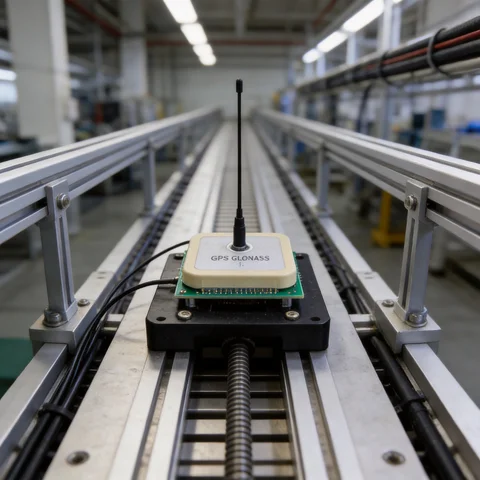

GL046 GPS/GNSS antenna application scene 2

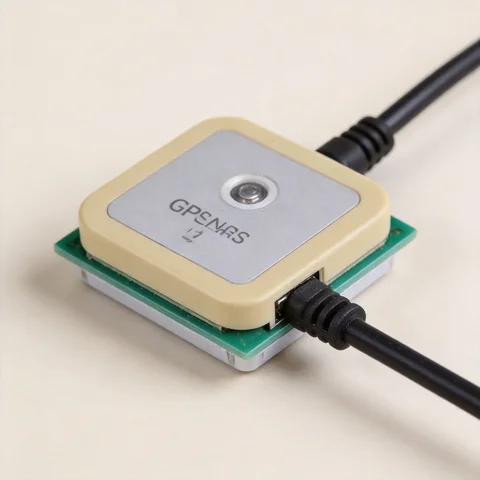

GL046 GPS/GNSS antenna connector and mounting detail view

RF Product GPS GLONASS Antenna

GL046 1575.42 ±0.5 IPEX Gps/Gnss Antenna for vehicle

Name: GL046 1575.42 ±0.5 IPEX Gps/Gnss Antenna for vehicle
Brand: Rftech
SKU: GL046

SKU GL046

GL046 is a GPS/GNSS antenna for vehicle navigation, asset tracking, GNSS modules, fleet devices and embedded positioning systems. Current product data lists 1575.42 ±0.5 operating band, 28±2 gain, IPEX connector. The page is organized for buyers checking RF fit, mechanical fit, installation method, available options and sampling requirements before selecting a model. Specifications shown here are limited to values already present on this product record, so absent cable, connector or environmental options should be confirmed with RFTECH before quotation. Related products below help compare nearby models in the same application area without mixing specifications from another product family.

SKU GL046

Frequency 1575.42 ±0.5

gain 28±2

polarization RHCP

vswr ≤1.5

input-impedance Nominal Impedance-Ω / 50

Request Quote

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL046
Frequency	1575.42 ±0.5
gain	28±2
polarization	RHCP
vswr	≤1.5
input-impedance	Nominal Impedance-Ω / 50
connector-type	IPEX
cable	Cable Length / RG1.13 100mm
operating-temperature	Temperature-℃ / -40～＋85
humidity	Humidity-﹪ / 5～75
compliance	Compliant
Category	GPS GLONASS Antenna

Product Overview

Key Features

GL046 GPS/GNSS antenna for vehicle navigation, asset tracking, GNSS modules, fleet devices and embedded positioning systems
Connector, mounting and application details are taken from the current product record.
Suitable for OEM sampling and RF project comparison.

Technical Specifications

Frequency Range	1575.42 ±0.5
Gain	28±2
Polarization	RHCP
VSWR	≤1.5
Input Impedance	Nominal Impedance-Ω / 50
Connector Type	IPEX
Cable	Cable Length / RG1.13 100mm
Operating Temperature	Temperature-℃ / -40～＋85
Humidity	Humidity-﹪ / 5～75
Compliance	Compliant

Application Scenarios

GL046 is suitable for vehicle navigation, asset tracking, GNSS modules, fleet devices and embedded positioning systems. Review the frequency, connector, mounting and mechanical details above against the radio, enclosure and installation site.

The gallery supports visual checks for application scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Selection and Project Support

GL046 1575.42 ±0.5 IPEX Gps/Gnss Antenna for vehicle is listed by Rftech for RF antenna and wireless connectivity projects in the GPS GLONASS Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL046).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
