GL1176157522 multi-band GNSS patch antenna on ground plane

RF Product · GPS&GNSS Antenna

1176/1575 MHz Multi-Band GNSS Patch Antenna GL1176157522

SKUGL1176157522

Multi-band GNSS patch antenna for GPS L1/L5, BDS B1, Galileo E1/E5b and GLONASS L1 reception.

1164-1188 MHz / 1525-1606 MHz80 x 80 mm ground plane1176 MHz / 1570 MHz
Request a Quote Download Datasheet

Need a different connector, cable configuration or frequency? Send the SKU and project requirements.

Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production

Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.
SKUGL1176157522
Frequency1164-1188 MHz / 1525-1606 MHz
Dimensions80 x 80 mm ground plane
Center frequency1176 MHz / 1570 MHz
Gain (Zenith)3.59 dBic typ. at 1176 MHz / 4.76 dBic typ. at 1575 MHz
Axial ratio0.15 dB typ. at 1176 MHz / 1.22 dB typ. at 1575 MHz
Return loss<= -10 dB
PolarizationRHCP
Frequency temperature coefficient0 +/- 60 ppm/degC
Ground plane80 x 80 mm
ConnectorPin (customizable)
RoHS complianceYes
CategoryGPS&GNSS Antenna

Verified product record

Product details

Available fields are grouped by engineering purpose without filling unsupported values.
RF performance
Frequency1164-1188 MHz / 1525-1606 MHz
Center frequency1176 MHz / 1570 MHz
Gain (Zenith)3.59 dBic typ. at 1176 MHz / 4.76 dBic typ. at 1575 MHz
Axial ratio0.15 dB typ. at 1176 MHz / 1.22 dB typ. at 1575 MHz
Return loss<= -10 dB
PolarizationRHCP
Frequency temperature coefficient0 +/- 60 ppm/degC
Interface and size
Dimensions80 x 80 mm ground plane
ConnectorPin (customizable)
Other documented details
SKUGL1176157522
Ground plane80 x 80 mm
RoHS complianceYes
CategoryGPS&GNSS Antenna

Current documentation

Downloads

Files shown here are linked to this exact product record.
PDFProduct datasheetTechnical information for this model

Documented use cases

Applications

Application labels below are stored on this product.
GNSS reception

Same product family

Related models

Published products from the same WooCommerce category.

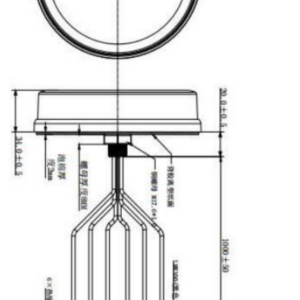

GLTFGPS2540 GPS L1 active patch antenna with IPEX cableSKU: GLTFGPS2540GLTFGPS2540 GPS L1 Active Patch Antenna with Built-In LNAGLJCN050 GPS L1 ceramic patch active antenna with IPEX cableSKU: GLJCN050GLJCN050 1575.42 MHz GPS L1 Active AntennaGL9Z049C GPS, BeiDou, 5G and WiFi six-lead combination antenna outlineSKU: GL9Z049CGL9Z049C GPS+BD, 5G and WiFi Combination AntennaGL-DY008 magnetic mount antenna main product imageSKU: GL-DY008GL-DY008 GPS/GLONASS Magnetic Mount Antenna, SMA Male
