GL2828U10 GNSS receiver module top and ceramic antenna views

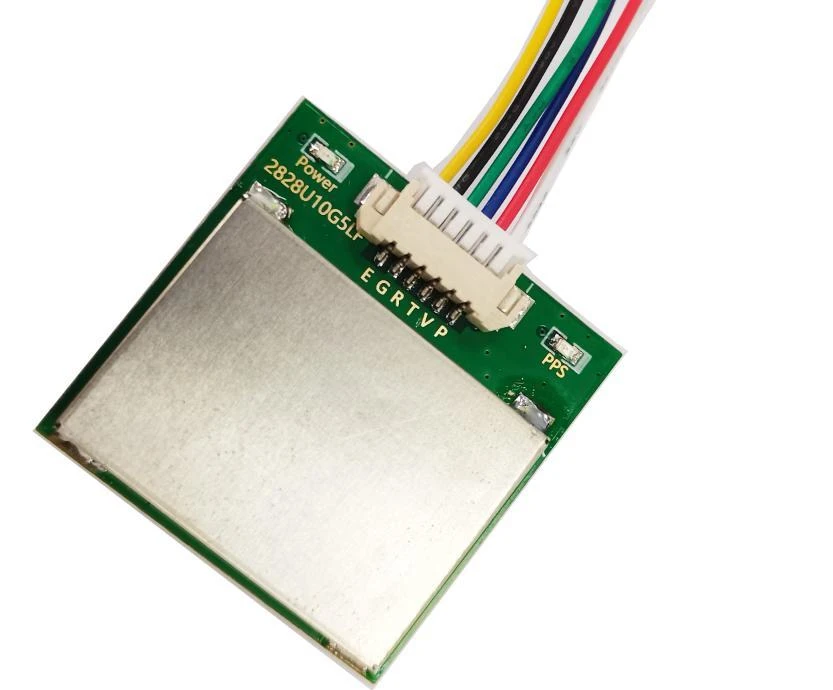

GL2828U10 receiver module with 6-pin cable

RF Product · GPS Receiver Module

GL2828U10 GNSS Receiver Module with Ceramic Antenna

SKUGL2828U10

GL2828U10 combines a UBX-M10050-KB GNSS chipset, ceramic antenna, LNA and Flash in a 28 x 28 x 8.5 mm module. The default output uses GPS, SBAS, Galileo and QZSS; the supplied document also lists GPS+GLONASS and GPS+BeiDou configurations.

MOQ: 100 units. Lead time: 2 weeks.

28 x 28 x 8.5 mmUBX-M10050-KBGPS + SBAS + Galileo + QZSS

Request a Quote Download Datasheet

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

SKUGL2828U10

Dimensions28 x 28 x 8.5 mm

GNSS chipsetUBX-M10050-KB

Default GNSS configurationGPS + SBAS + Galileo + QZSS

Other GNSS configurationsGPS + GLONASS; GPS + BeiDou

Source-listed frequencies1575.42 / 1561.10 / 1602.00 / 1561.098 MHz

Baud rate4800-921600 bps; default 38400 bps

Tracking sensitivity-167 dBm

Acquisition sensitivity-160 dBm

Cold-start sensitivity-148 dBm

Cold-start timeAverage 26 s

Warm-start timeAverage 24 s

Hot-start timeAverage 1 s

Horizontal accuracy2.0 m CEP 2D RMS with SBAS assistance, open sky

Time accuracy30 ns

Maximum altitude50000 m

Maximum speed500 m/s

Maximum acceleration<= 4G

Output levelTTL

Output protocolNMEA 0183

Configurable NMEA sentencesGGA / GSA / GSV / RMC / VTG / GLL

Update rate1-10 Hz; default 1 Hz

Weight12 g

Connector6-pin socket, 1.25 mm pitch

Supply voltageDC 3.3-5 V; typical 5 V

Operating currentApprox. 40 mA

Sleep currentApprox. 0.06 mA

Antenna25 x 25 x 4 mm ceramic antenna

Built-in componentsLNA; Flash; TCXO; Farad capacitor

Configuration retentionFlash retains settings after power-off

POWER indicatorRed LED on when powered

PPS indicatorOn before positioning; flashes after a fix

PPS configurationConfigurable pulse parameters

Operating temperature-40 to +85 °C

Storage temperature-40 to +85 °C

Included cable6-pin, 1.25 mm pitch, single-ended, 15 cm

Tray dimensions40 x 23 x 2 cm

Tray quantity50 units per layer

MOQ100 units

Lead time2 weeks

CategoryGPS Receiver Module

Product overview

Product details

Features and operating information for this model.

Model context

GL2828U10 product overview

The TTL serial interface outputs NMEA 0183 data at a default 38400 bps and 1 Hz. Baud rate, output sentences, update rate and PPS behavior can be configured, and Flash retains those settings after power-off. The included 15 cm cable mates with the 6-pin, 1.25 mm-pitch socket for integration with a controller or USB-to-TTL interface.

The stated 2.0 m horizontal accuracy is conditional on SBAS assistance and open-sky reception. Operating and storage temperatures are specified from -40 to +85 °C. The frequency values are reproduced from the source table without treating its L1/L2/L3 labels as a claim of multi-band reception.

Minimum order: 100 units. Lead time: 2 weeks.
