RF Product Mobile Antenna

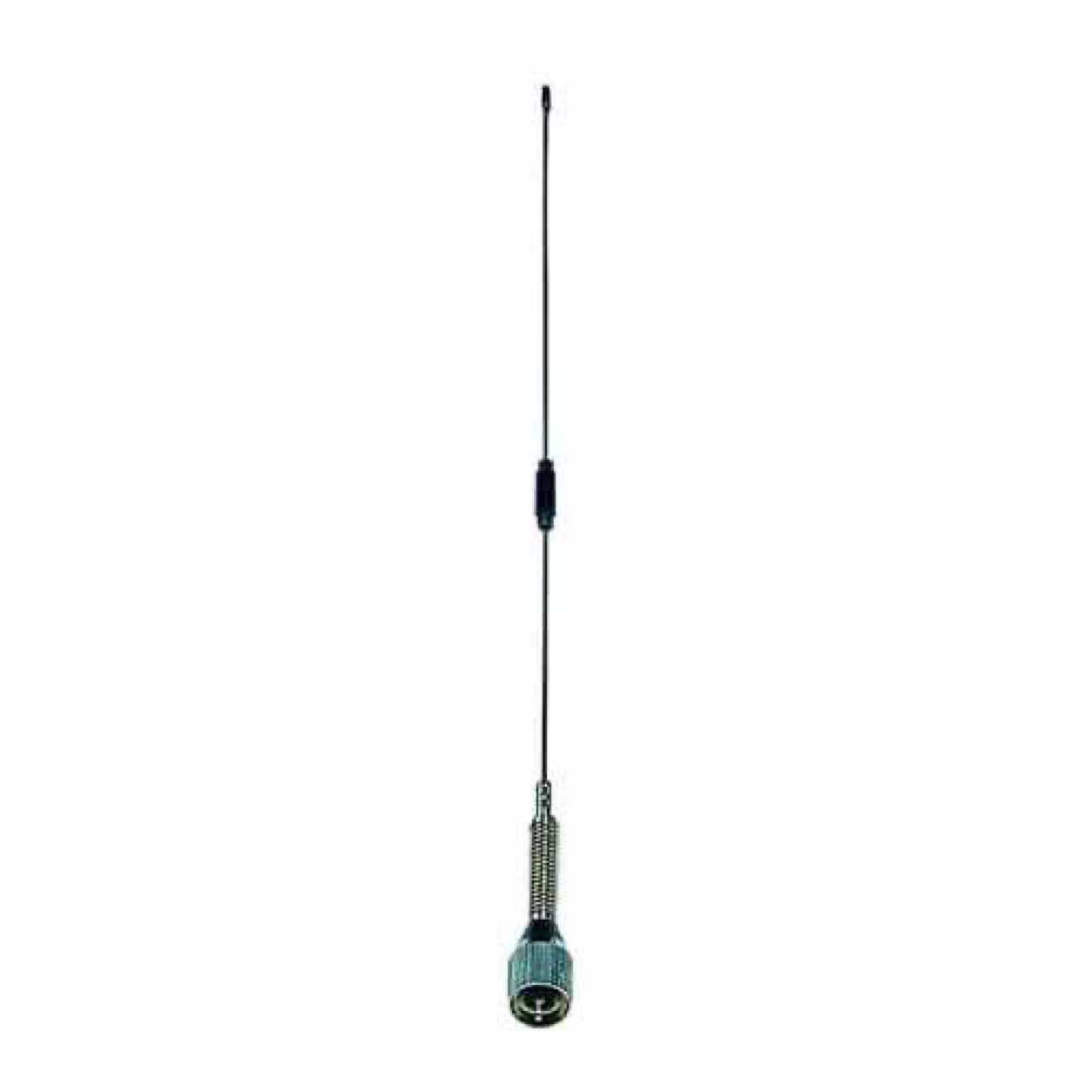

GL350CII 330-390 MHz 5 dBi Mobile Antenna

SKU GL350CII

GL350CII is a 330-390 MHz mobile antenna with 5 dBi gain, 95 cm length, UHF male feed and source-stated M110 magnetic-mount compatibility with a bottom spring.

SKU GL350CII

Frequency 330-390 MHz

Dimensions 95 cm

Connector UHF Male

Mounting M110 magnetic mount

Application UHF vehicle mobile antenna

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350CII
Frequency	330-390 MHz
Dimensions	95 cm
Connector	UHF Male
Mounting	M110 magnetic mount
Application	UHF vehicle mobile antenna
Bandwidth	16 MHz
Gain	5 dBi
VSWR	<=1.35
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Weight	118 g
Remarks	Bottom spring which can prevent collision. Matches with M110 magnetic mount.
Category	Mobile Antenna

Vehicle-oriented UHF antenna

GL350CII is a 95 cm mobile antenna for 330-390 MHz vehicle and temporary radio installations. Its 5 dBi gain, UHF male connection and listed M110 magnetic-mount compatibility are paired with a bottom spring intended to help prevent collision damage.

RF and mechanical match

The source lists 100 W maximum input power, vertical polarization, 50 Ω impedance and ≤1.35 VSWR. The 118 g antenna should be matched with the correct M110 mount, a suitable metal ground plane and a cable route that does not pinch or fatigue at the vehicle entry point.

Deployment use

Use GL350CII for fleet, service, field or temporary UHF systems that operate in the stated 330-390 MHz range. Check roof clearance, nearby obstructions, radio channel plan and mounting-surface suitability before installation.

Selection question

Choose GL350CII when a 95 cm, 5 dBi UHF mobile antenna with a UHF male connector and M110 compatibility meets the vehicle installation. Do not infer that the magnetic mount itself is included unless it is specified in the quote.

Typical Applications

UHF vehicle mobile antenna
System integration with a specified 50 Ω feed line
Projects that document frequency, connector and mounting details before ordering

Questions Before Ordering

Does GL350CII have collision protection?

The source notes a bottom spring intended to help prevent collision damage.

Which mount is referenced?

The source states compatibility with an M110 magnetic mount.

Related Resources

Technical Specifications

Frequency Range	330-390 MHz
Bandwidth	16 MHz
Gain	5 dBi
VSWR	<=1.35
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Dimensions	95 cm
Weight	118 g
Connector	UHF Male
Remarks	Bottom spring which can prevent collision. Matches with M110 magnetic mount.

Selection and Project Support

GL350CII 330-390 MHz 5 dBi Mobile Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Mobile Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350CII).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
