RF Product Mobile Antenna

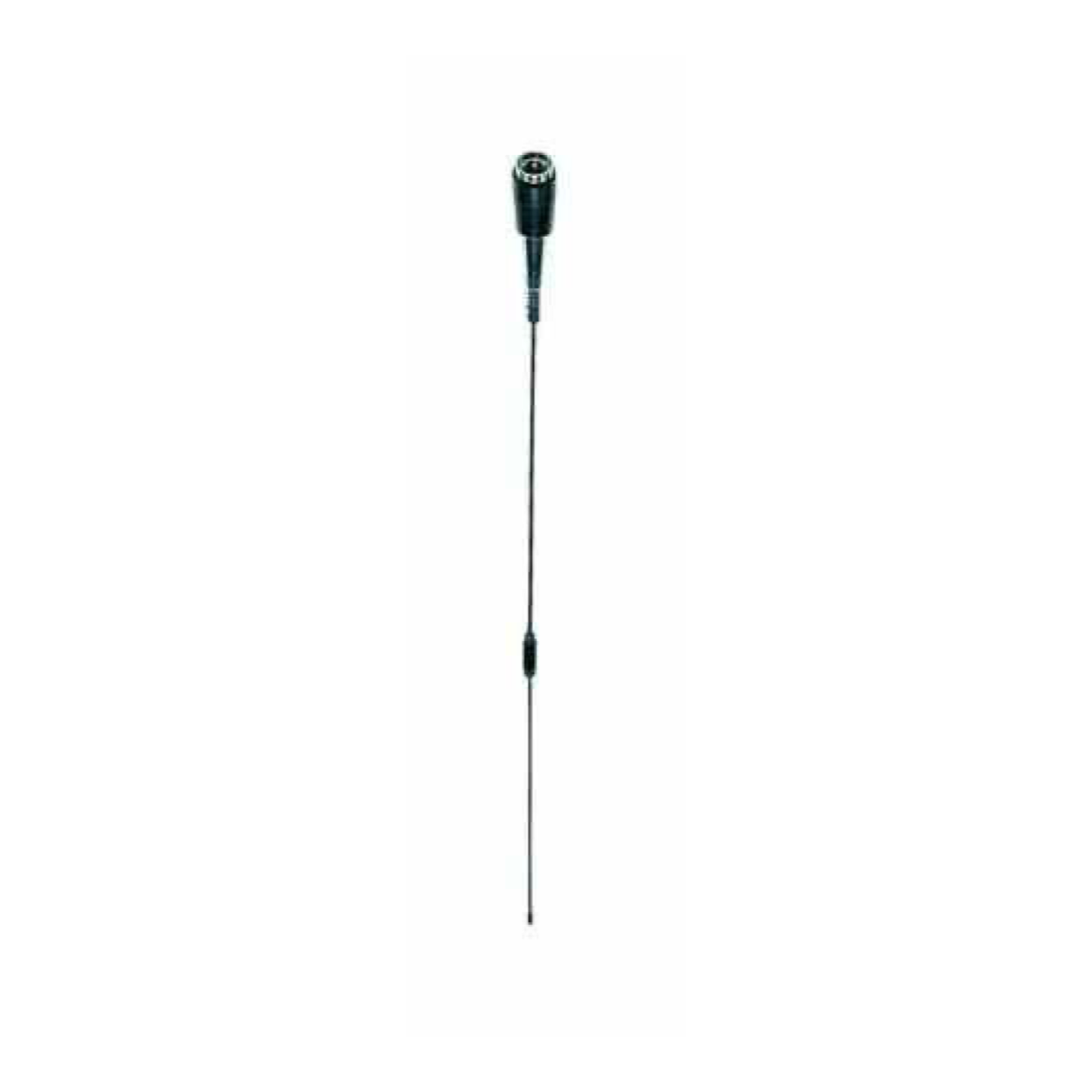

GL350DI 300-390 MHz 5.5 dBi Mobile Antenna

SKU GL350DI

GL350DI is a 120 cm, 5.5 dBi mobile antenna for 300-390 MHz installations, with UHF male feed and source-stated compatibility with an M110 magnetic mount.

SKU GL350DI

Frequency 300-390 MHz

Dimensions 120 cm

Connector UHF Male

Mounting M110 magnetic mount

Application UHF vehicle mobile antenna

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350DI
Frequency	300-390 MHz
Dimensions	120 cm
Connector	UHF Male
Mounting	M110 magnetic mount
Application	UHF vehicle mobile antenna
Bandwidth	16 MHz
Gain	5.5 dBi
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Weight	220 g
Remarks	Matches with M110 magnetic mount.
Category	Mobile Antenna

Wider mobile operating range

GL350DI covers 300-390 MHz, providing a broader documented range than the 330-390 MHz GL350CII. It is a 120 cm mobile antenna with 5.5 dBi gain for vehicle or temporary UHF installations using the stated M110 magnetic-mount arrangement.

Specified interface

The antenna uses a UHF male connector and is rated for 100 W with vertical polarization, 50 Ω impedance and ≤1.5 VSWR. At 220 g, it still requires a secure mount, appropriate ground plane and cable routing that respects the vehicle's operating environment.

Deployment use

GL350DI can be selected for fleet, service and field-radio systems whose channels remain within 300-390 MHz. Confirm the vehicle roof geometry, mast alternative if used, feeder assembly and overall height clearance before deployment.

Selection question

Choose GL350DI when the wider 300-390 MHz range and 120 cm form factor are needed. It is a mobile antenna; for a permanent rooftop site, use a product with an explicit fixed mast configuration.

Typical Applications

UHF vehicle mobile antenna
System integration with a specified 50 Ω feed line
Projects that document frequency, connector and mounting details before ordering

Questions Before Ordering

What frequency range is listed?

GL350DI is specified for 300-390 MHz.

What mount is referenced?

The source lists compatibility with an M110 magnetic mount.

Related Resources

Technical Specifications

Frequency Range	300-390 MHz
Bandwidth	16 MHz
Gain	5.5 dBi
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Dimensions	120 cm
Weight	220 g
Connector	UHF Male
Remarks	Matches with M110 magnetic mount.

Selection and Project Support

GL350DI 300-390 MHz 5.5 dBi Mobile Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Mobile Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350DI).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
