RF Product Mobile Antenna

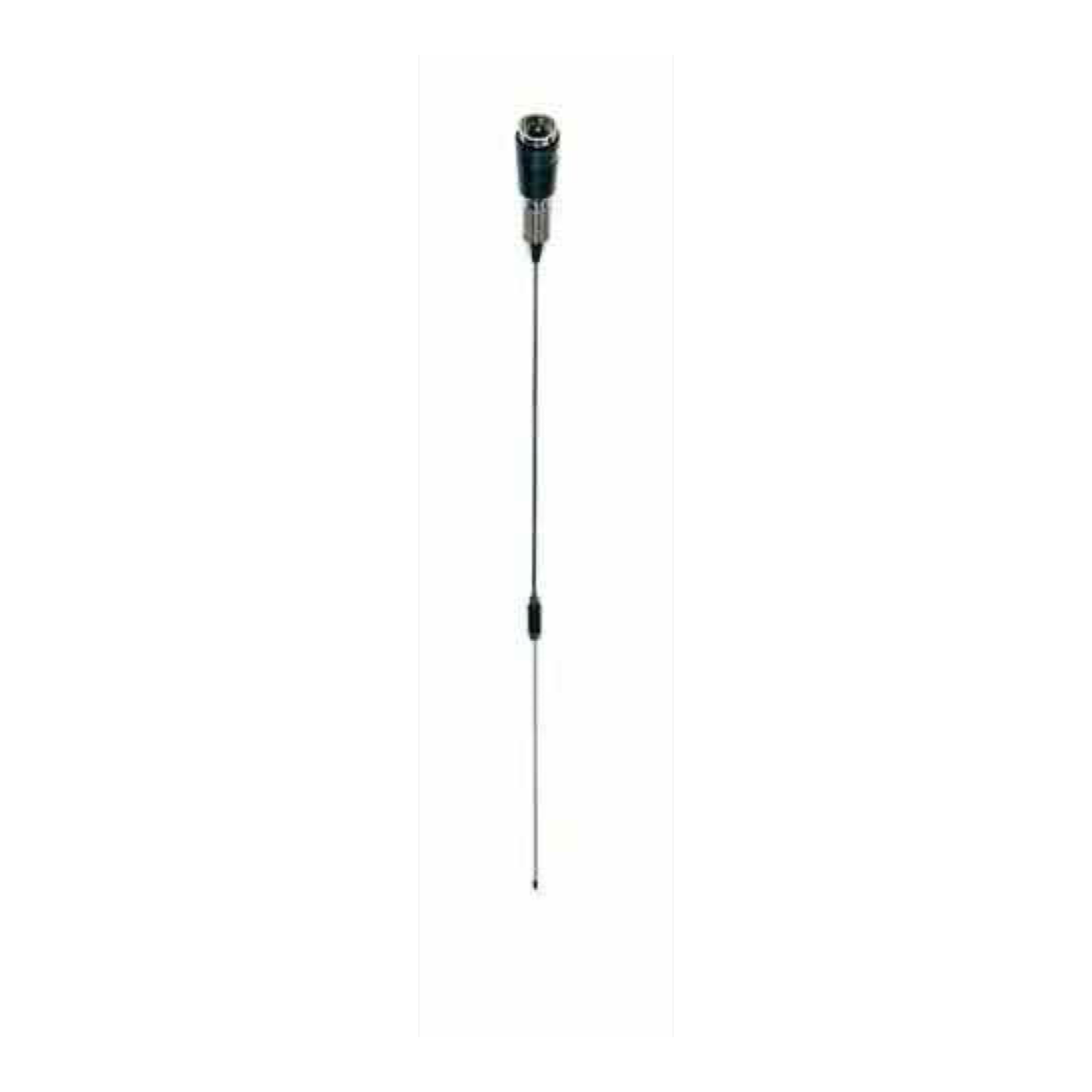

GL350DII 330-390 MHz 5.5 dBi Mobile Antenna

SKU GL350DII

GL350DII is a 120 cm, 5.5 dBi mobile antenna for 330-390 MHz UHF systems, with UHF male feed, a source-stated bottom spring and M110 magnetic-mount compatibility.

SKU GL350DII

Frequency 330-390 MHz

Dimensions 120 cm

Connector UHF Male

Mounting M110 magnetic mount

Application UHF vehicle mobile antenna

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350DII
Frequency	330-390 MHz
Dimensions	120 cm
Connector	UHF Male
Mounting	M110 magnetic mount
Application	UHF vehicle mobile antenna
Bandwidth	10 MHz
Gain	5.5 dBi
VSWR	<=1.2
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Weight	220 g
Remarks	Bottom spring which can prevent collision.Matches with M110 magnetic mount.
Category	Mobile Antenna

Spring-equipped mobile configuration

GL350DII is a 120 cm mobile antenna for 330-390 MHz systems. It combines 5.5 dBi gain with a UHF male connector, M110 magnetic-mount compatibility and a bottom spring described by the source as protection against collision.

RF limits

The documented values are 100 W maximum input power, vertical polarization, 50 Ω nominal impedance and ≤1.2 VSWR. The lower listed VSWR value should be considered together with the installed mount, cable and vehicle ground plane, since final system performance depends on the complete assembly.

Deployment use

This model is intended for vehicles, service radios and temporary UHF systems working in the stated band. Check rooftop clearance, mount retention, cable strain relief and vehicle-specific ground-plane conditions before commissioning.

Selection question

Select GL350DII when the 330-390 MHz range, 120 cm length and spring-equipped M110-compatible configuration fit the use case. State whether the quote must include any mounting hardware or only the antenna.

Typical Applications

UHF vehicle mobile antenna
System integration with a specified 50 Ω feed line
Projects that document frequency, connector and mounting details before ordering

Questions Before Ordering

What distinguishes GL350DII from GL350DI?

GL350DII is specified for 330-390 MHz with ≤1.2 VSWR and a bottom spring; GL350DI covers 300-390 MHz.

What connector is used?

The source lists a UHF male connector.

Related Resources

Technical Specifications

Frequency Range	330-390 MHz
Bandwidth	10 MHz
Gain	5.5 dBi
VSWR	<=1.2
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	100 W
Dimensions	120 cm
Weight	220 g
Connector	UHF Male
Remarks	Bottom spring which can prevent collision.Matches with M110 magnetic mount.

Selection and Project Support

GL350DII 330-390 MHz 5.5 dBi Mobile Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Mobile Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350DII).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
