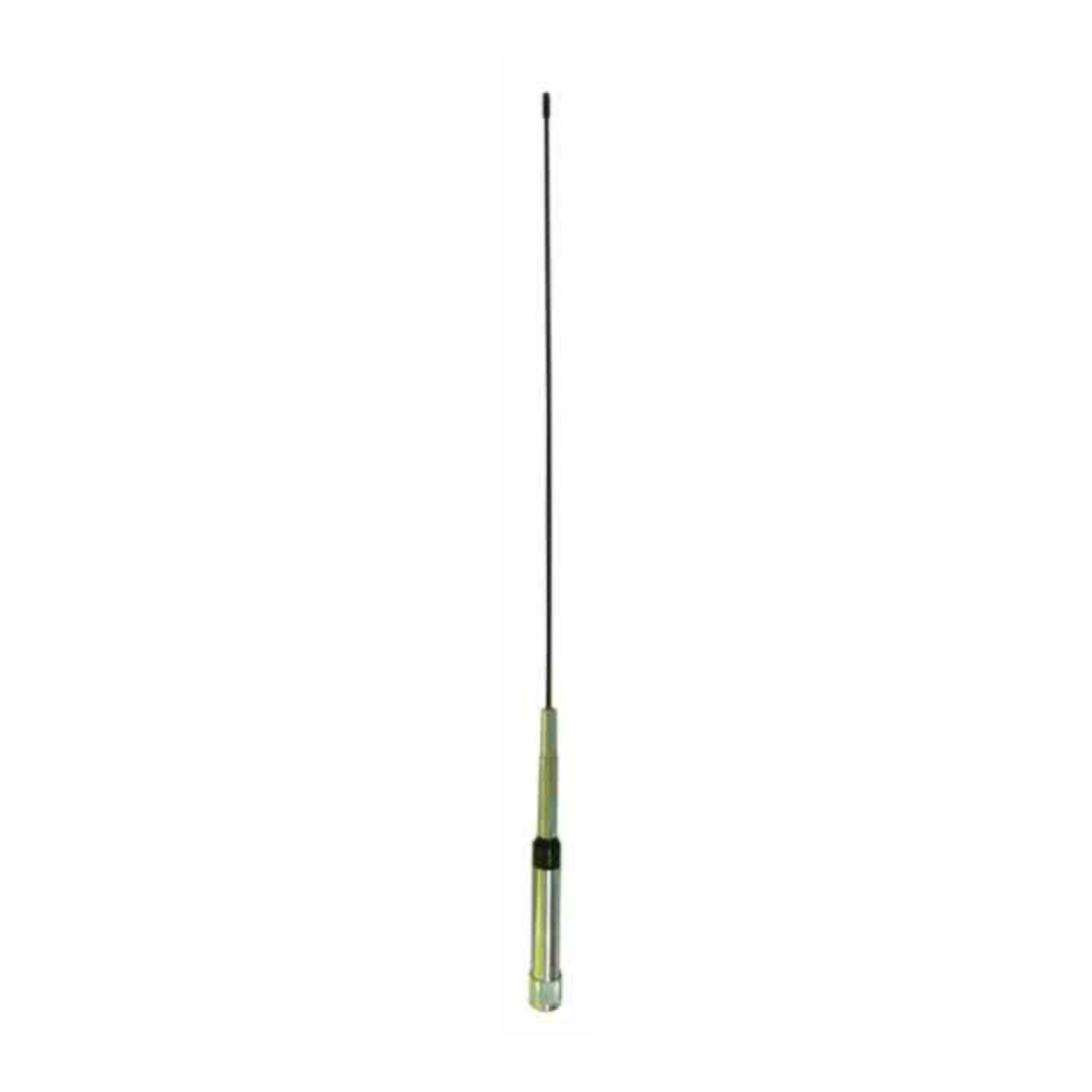

GL350FCW1 350-370/366-386 MHz 3.5 dBi Mobile Antenna
SKU GL350FCW1
GL350FCW1 is a 350-370/366-386 MHz Mobile Antenna for uhf mobile or backpack radio antenna, with 3.5 dBi gain, N Male connector and M110N magnetic mount or backpack equipment use.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL350FCW1 |
|---|---|
| Frequency | 350-370/366-386 MHz |
| Dimensions | φ20 × 405/φ20 × 385 mm |
| Connector | N Male |
| Mounting | M110N magnetic mount or backpack equipment use |
| Application | UHF mobile or backpack radio antenna |
| Bandwidth | 20 MHz |
| Gain | 3.5 dBi |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Weight | 120/110 g |
| Remarks | Matches with M110N big magnetic mount or used with backpack equipment |
| Category | Mobile Antenna |
Mobile Antenna Role
GL350FCW1 is a 350-370/366-386 MHz Mobile Antenna for dual-range UHF systems that may use an M110N big magnetic mount or backpack equipment. Its source record lists 3.5 dBi gain, N Male connector and M110N magnetic mount or backpack equipment use, so the product page is kept tied to those exact ordering details.
RF and Mechanical Fit
The antenna uses Vertical polarization, 50 Ω nominal impedance and <=1.5 VSWR. The documented power rating is 100 W, and the published size is φ20 × 405/φ20 × 385 mm. Confirm cable loss, mating connector and mounting hardware before installation.
Installation Notes
Use GL350FCW1 where the design needs N male feed, the listed dual dimensions and one of the two documented operating ranges. Do not substitute a similar GL-DY or adjacent Evelyn model unless the frequency range, connector, mounting method and mechanical envelope have all been checked against the project requirement.
Application Fit
- UHF mobile or backpack radio antenna
- Systems that operate inside 350-370/366-386 MHz and require a 50 Ω antenna path
- OEM or project builds where the SKU, connector and mounting details are stated before quotation
Selection Questions
What should be confirmed before ordering GL350FCW1?
Confirm the operating channels, requested connector, installation method and whether the documented φ20 × 405/φ20 × 385 mm size is acceptable for the equipment or support structure.
Can this model be swapped with a nearby SKU?
Only after engineering review. Several Evelyn models share a similar frequency family but differ by suffix, connector, power rating, gain, mount or physical length.
Related Resources
- Browse antenna products
- Compare omnidirectional and directional antenna choices
- Request a model-specific quotation
Source-Specific Note
Source remark: Matches with M110N big magnetic mount or used with backpack equipment.
Technical Specifications
| Frequency Range | 350-370/366-386 MHz |
|---|---|
| Bandwidth | 20 MHz |
| Gain | 3.5 dBi |
| VSWR | <=1.5 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Dimensions | φ20 × 405/φ20 × 385 mm |
| Weight | 120/110 g |
| Connector | N Male |
| Remarks | Matches with M110N big magnetic mount or used with backpack equipment |
Selection and Project Support
GL350FCW1 350-370/366-386 MHz 3.5 dBi Mobile Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Mobile Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350FCW1).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
