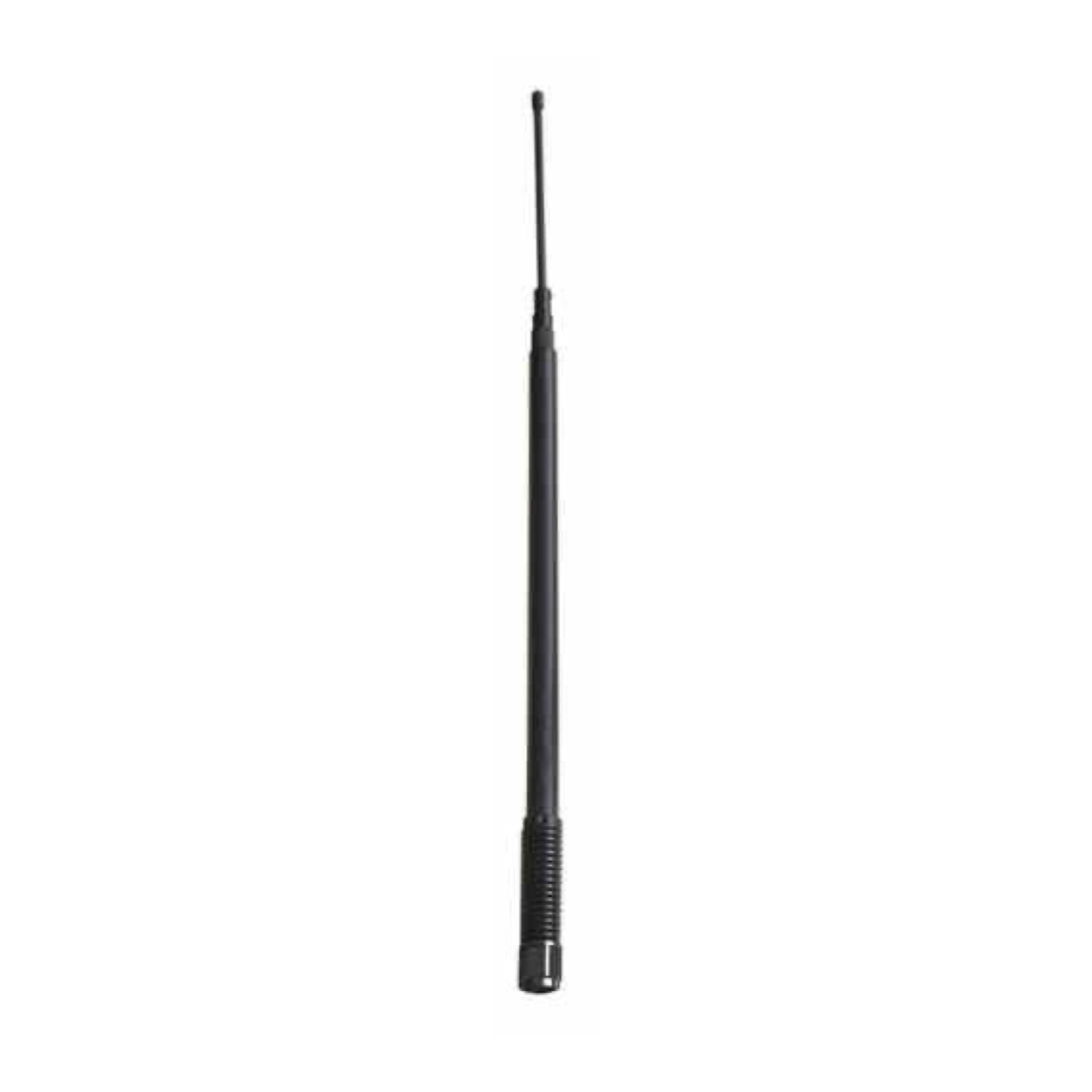

GL350WDBFA white-background product image

RF Product Mobile Antenna

GL350WDBFA 358-361 MHz 2.15 dBi Mobile Antenna

SKU GL350WDBFA

GL350WDBFA is a Mobile Antenna for 358-361 MHz, with 2.15 dBi gain, N Male connection and 50 W power handling.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GL350WDBFA

Frequency 358-361 MHz

Dimensions 56 mm

Connector N Male

Mounting Backpack equipment

Application Backpack radio equipment

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350WDBFA
Frequency	358-361 MHz
Dimensions	56 mm
Connector	N Male
Mounting	Backpack equipment
Application	Backpack radio equipment
Gain	2.15 dBi
VSWR	≤1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	50 W
Category	Mobile Antenna

Product Role

GL350WDBFA is a Mobile Antenna for 358-361 MHz systems. The source record specifies 2.15 dBi gain, N Male connection and Backpack equipment installation.

Integration Notes

Confirm operating channels, connector mating, installation space and mounting hardware before ordering. Do not substitute a similar SKU without verifying its frequency range, gain, connector and mechanical envelope.

Application Fit

Backpack radio equipment
50 Ω radio systems operating in the documented frequency range
OEM and project orders requiring this exact SKU

Related Resources

Technical Specifications

Frequency Range	358-361 MHz
Gain	2.15 dBi
VSWR	≤1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	50 W
Dimensions	56 mm
Connector	N Male
Mounting	Backpack equipment

Selection and Project Support

GL350WDBFA 358-361 MHz 2.15 dBi Mobile Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Mobile Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350WDBFA).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
