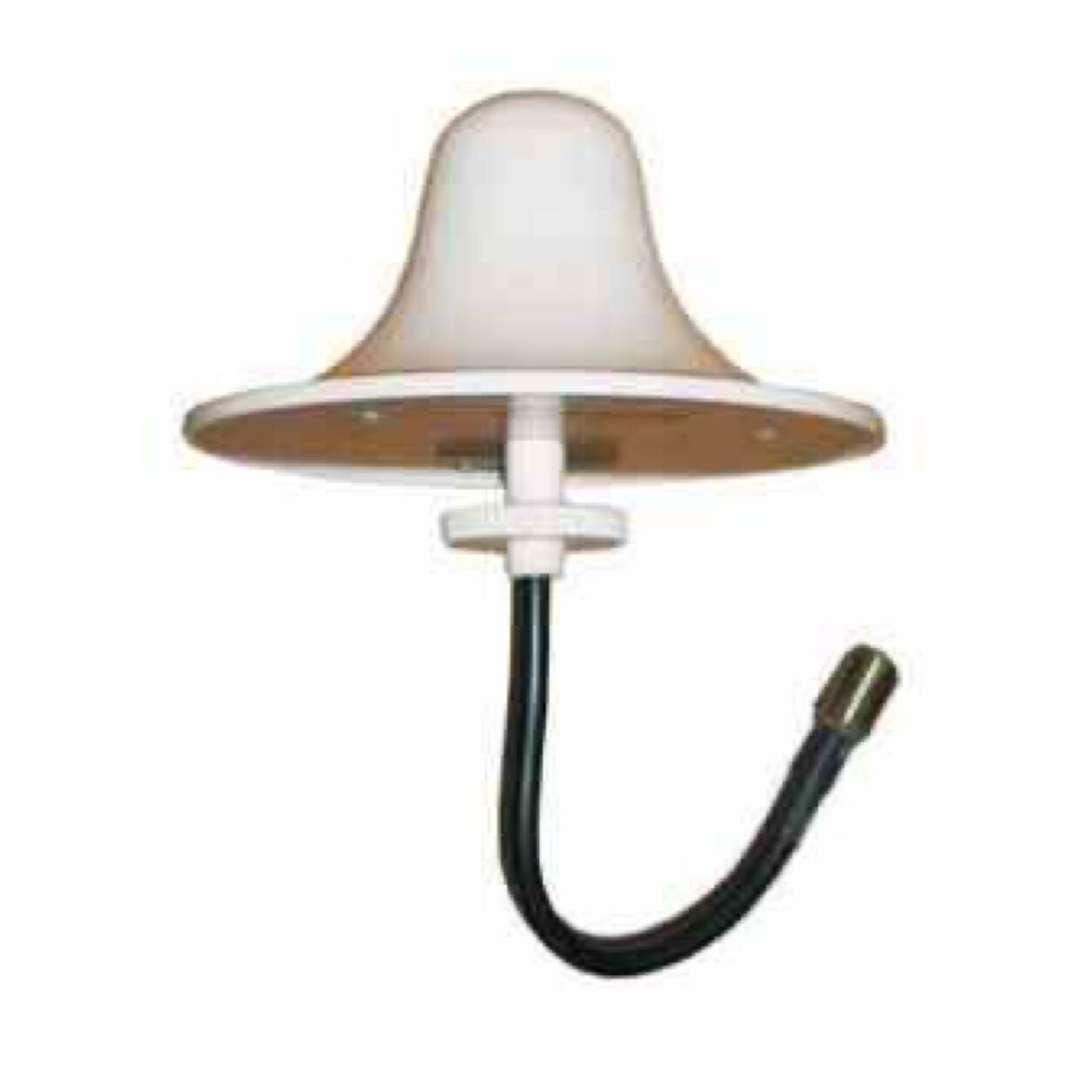

GL350XTS1 white-background product image

GL350XTS1 RX 351-356 / TX 361-366 MHz 2.15 dBi Ceiling Mount Antenna

SKU GL350XTS1

GL350XTS1 is a Ceiling Mount Antenna for RX 351-356 / TX 361-366 MHz, with 2.15 dBi gain, N Female or customization connection and 30 W power handling.

SKU GL350XTS1

Frequency RX 351-356 / TX 361-366 MHz

Dimensions Φ165 × 94 mm

Connector N Female or Customization

Mounting Ceiling nut plate

Application Indoor ceiling coverage

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350XTS1
Frequency	RX 351-356 / TX 361-366 MHz
Dimensions	Φ165 × 94 mm
Connector	N Female or Customization
Mounting	Ceiling nut plate
Application	Indoor ceiling coverage
Gain	2.15 dBi
VSWR	≤1.8 RX / ≤1.5 TX
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	30 W
Category	Ceiling Mount Antenna

Product Role

GL350XTS1 is a Ceiling Mount Antenna for RX 351-356 / TX 361-366 MHz systems. The source record specifies 2.15 dBi gain, N Female or customization connection and Ceiling nut plate installation.

Integration Notes

Confirm operating channels, connector mating, installation space and mounting hardware before ordering. Do not substitute a similar SKU without verifying its frequency range, gain, connector and mechanical envelope.

Application Fit

Indoor ceiling coverage
50 Ω radio systems operating in the documented frequency range
OEM and project orders requiring this exact SKU

Related Resources

Technical Specifications

Frequency Range	RX 351-356 / TX 361-366 MHz
Gain	2.15 dBi
VSWR	≤1.8 RX / ≤1.5 TX
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	30 W
Dimensions	Φ165 × 94 mm
Connector	N Female or customization
Mounting	Ceiling nut plate

Selection and Project Support

GL350XTS1 RX 351-356 / TX 361-366 MHz 2.15 dBi Ceiling Mount Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Ceiling Mount Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350XTS1).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
