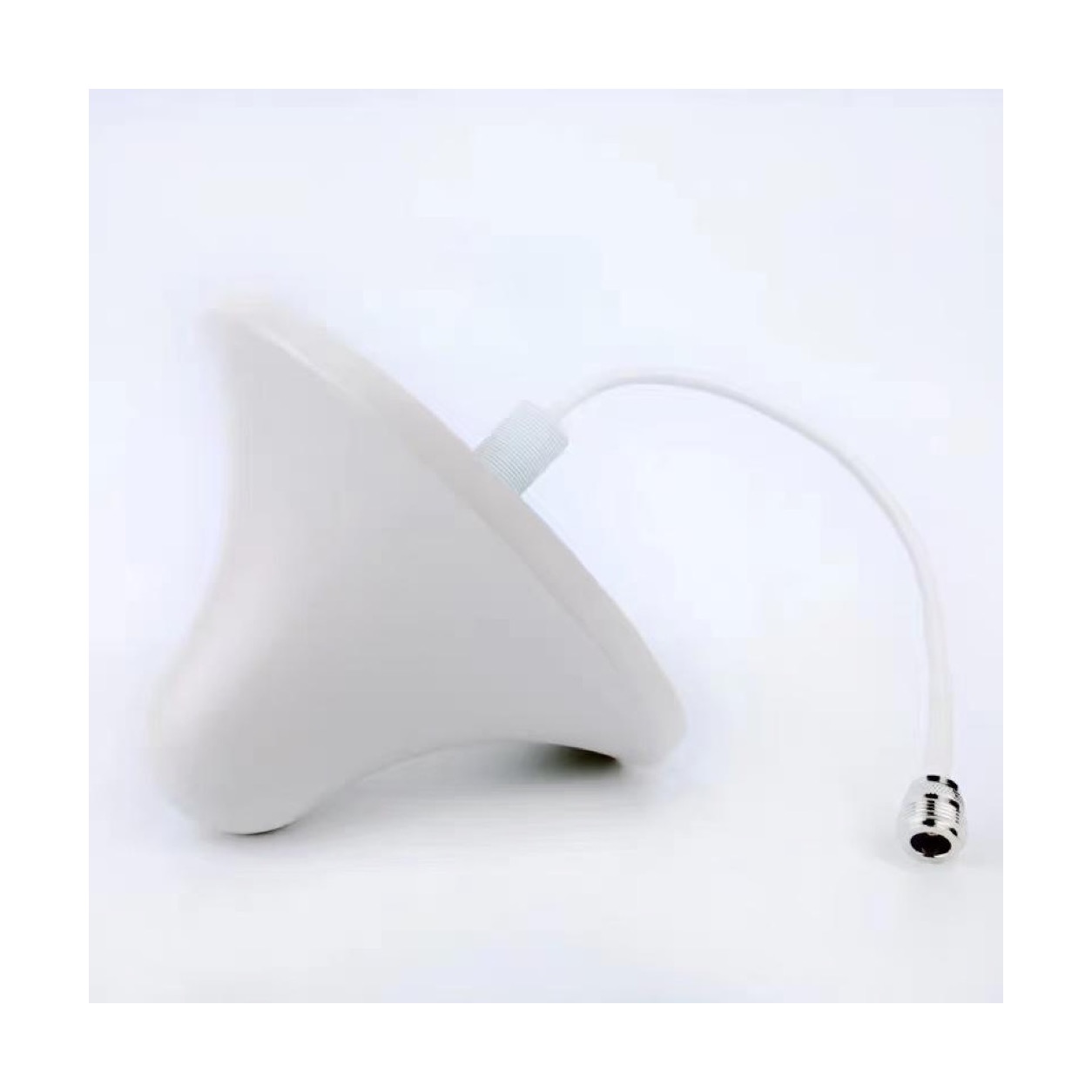

GLDY904-1 698-2700 MHz Ceiling Mount Antenna
SKU GLDY904-1
GLDY904-1 wideband ceiling antenna covers 698-2700 MHz with 3-5 dBi gain, vertical polarization, VSWR ≤2.0 and an N female connector.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GLDY904-1 |
|---|---|
| Frequency | 698-2700 MHz |
| Dimensions | 165 × 100 mm |
| Connector | N Female |
| Mounting | Ceiling Mount |
| Application | Indoor cellular coverage and DAS |
| Bandwidth | 2002 MHz |
| Gain | 3-5 dBi |
| VSWR | ≤2.0 |
| Input Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Category | Ceiling Mount Antenna |
GLDY904-1 product overview
The GLDY904-1 is a wideband indoor ceiling antenna documented for 698-2700 MHz. The main specification table lists 3-5 dBi gain, vertical polarization, 50-ohm impedance, VSWR no greater than 2.0 and a 100 W maximum input rating.
Applications and product fit
The low-profile radome and ceiling installation format suit indoor cellular coverage and distributed antenna system projects that require the documented 698-2700 MHz range.
Integration and ordering notes
Confirm ceiling construction, feeder routing, connector mating and the exact operator bands before ordering. The source test-summary page reports different measured summary values—695-2700 MHz, 6 dBi and VSWR ≤1.5—so this page preserves the main product specification table without mixing the two sets.
Related products and resources
- Compare indoor and panel antenna options
- Read the in-building DAS guide
- Browse all RF products
- Send your indoor coverage requirement
Selection and Project Support
GLDY904-1 698-2700 MHz Ceiling Mount Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Ceiling Mount Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLDY904-1).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
