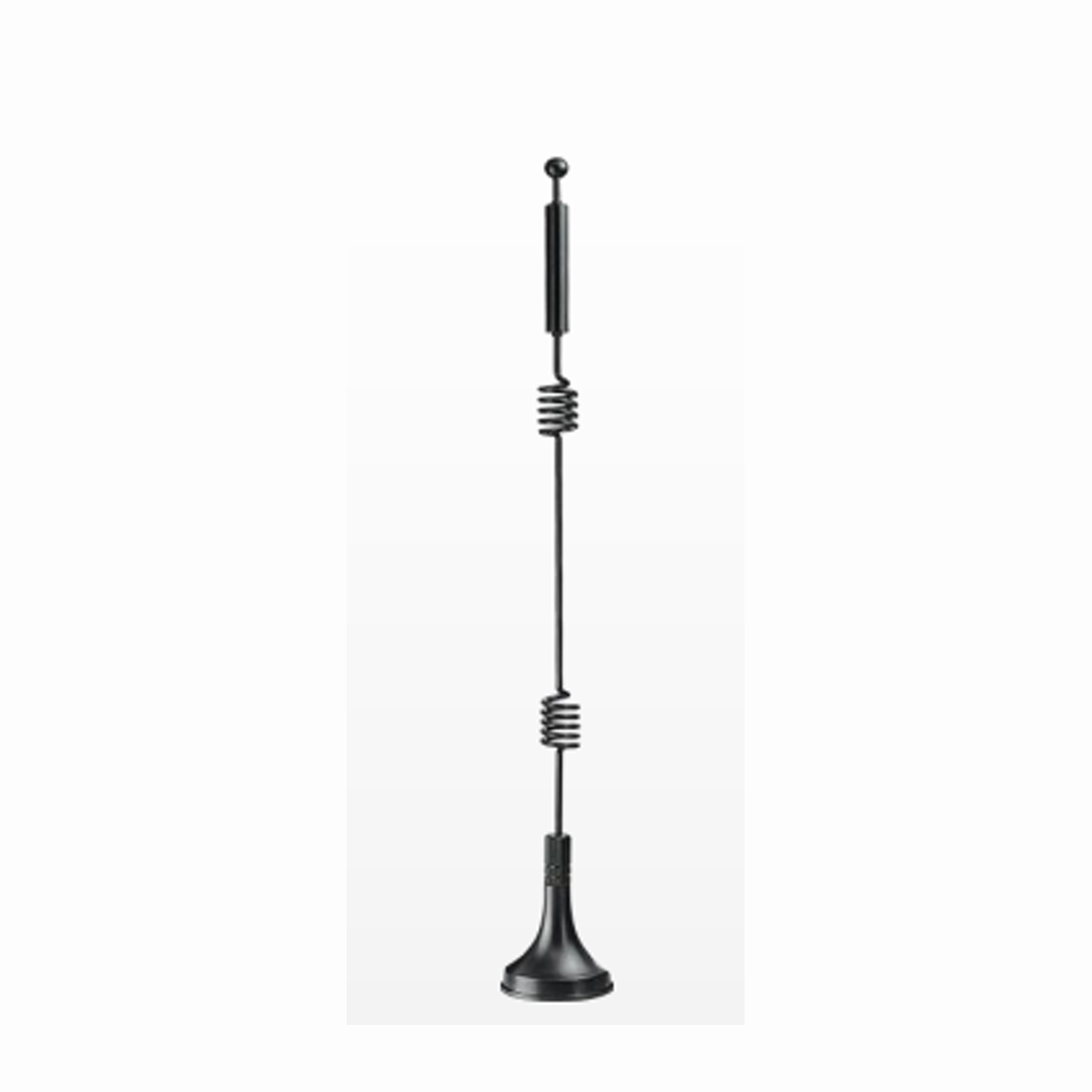

GL5TS 2.4 GHz Magnetic Antenna

SKU GL5TS

GL5TS is a 2.4 GHz Magnetic Antenna for 2400-2500 MHz, with 3.0 dBi gain and a 50 Ω RF interface.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GL5TS

Frequency 2400-2500 MHz

Dimensions Ø30 × 220 mm

Application Wi-Fi / wireless equipment

Gain 3.0 dBi

VSWR <=3.5

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL5TS
Frequency	2400-2500 MHz
Dimensions	Ø30 × 220 mm
Application	Wi-Fi / wireless equipment
Gain	3.0 dBi
VSWR	<=3.5
Nominal Impedance	50 Ω
Maximum Input Power	50 W
Antenna Type	Dual Magnet Antenna
Category	Wifi Antenna

Wi-Fi Antenna Role

GL5TS is a 2.4 GHz Magnetic Antenna for equipment operating within 2400-2500 MHz. The supplied source sheet identifies 3.0 dBi gain and a 50 Ω RF interface.

Integration Notes

Confirm the mating connector, available mounting space and the required operating band before ordering. Do not substitute a nearby SKU without checking its frequency range, connector and mechanical dimensions.

Application Fit

Wi-Fi and wireless equipment in the documented frequency range
OEM or project integrations that require this exact SKU
Installations that can accommodate the listed Ø30 × 220 mm dimensions

Related Resources

Technical Specifications

Frequency Range	2400-2500 MHz
Gain	3.0 dBi
VSWR	<=3.5
Nominal Impedance	50 Ω
Maximum Input Power	50 W
Dimensions	Ø30 × 220 mm
Antenna Type	Dual Magnet Antenna

Selection and Project Support

GL5TS 2.4 GHz Magnetic Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Wifi Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL5TS).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
