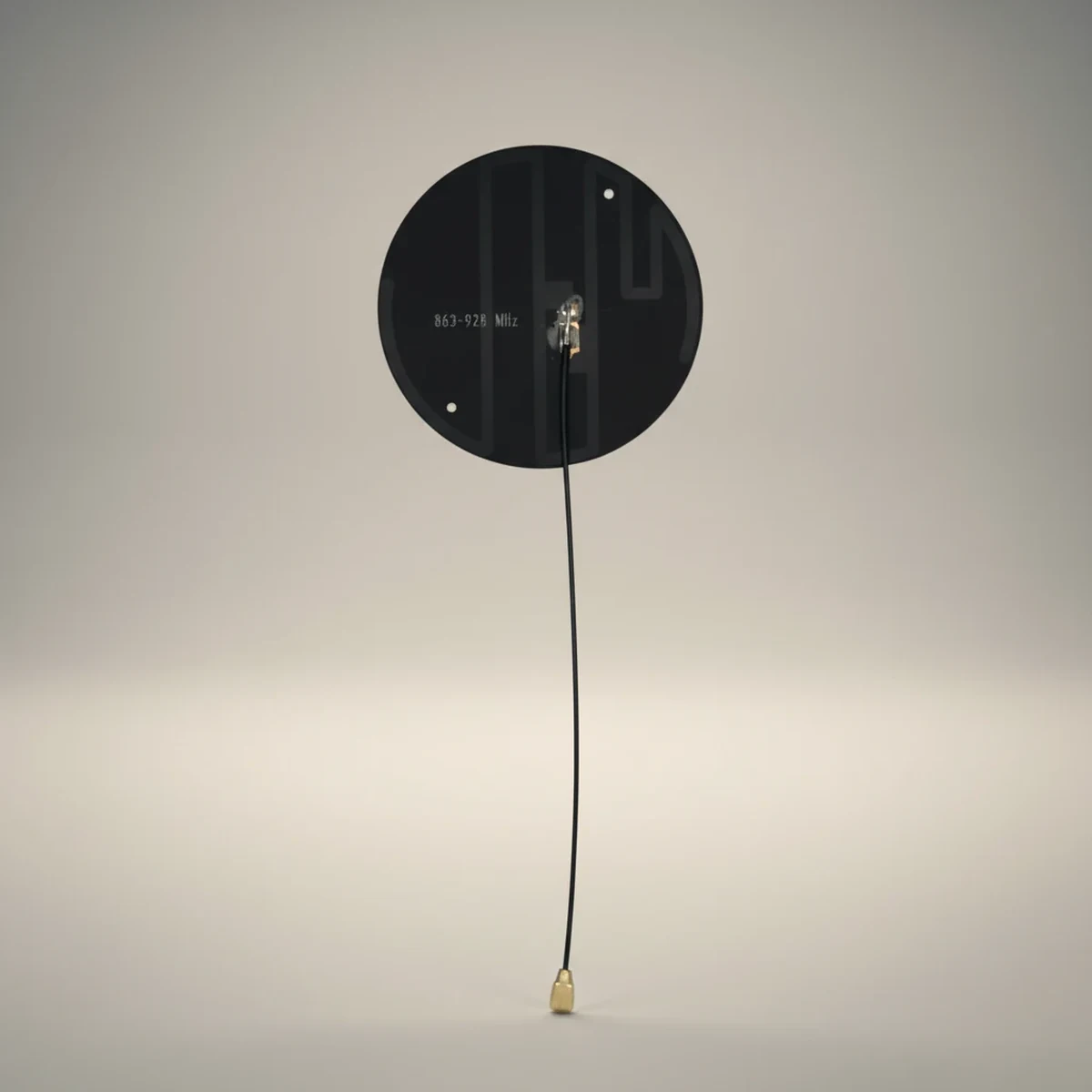

GL8682 FPC PCB antenna main product image

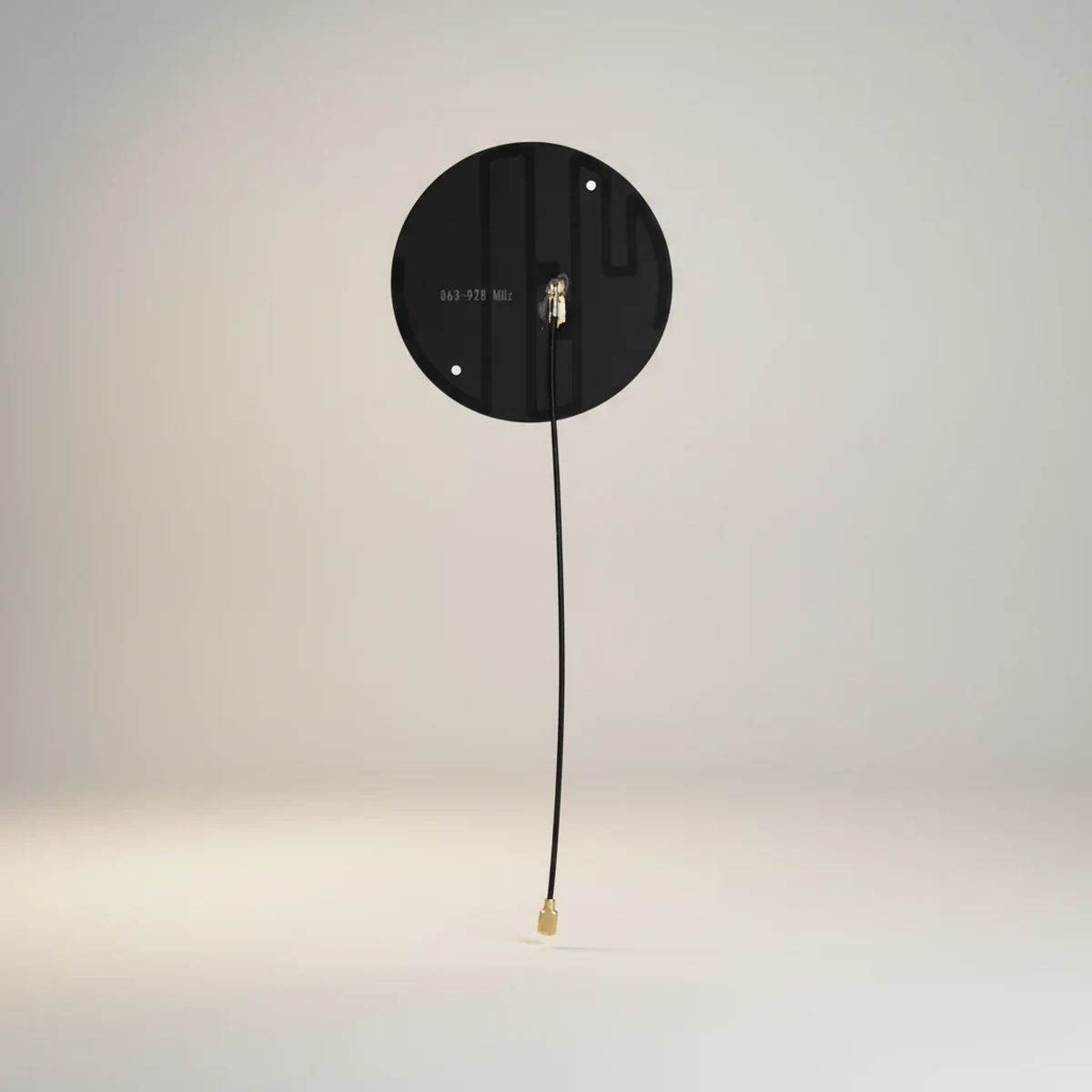

GL8682 FPC PCB antenna application scene 1

GL8682 FPC PCB antenna application scene 2

GL8682 FPC PCB antenna connector and mounting detail view

RF Product Lora Antenna

GL8682 863-928MHz UFL Fpc Pcb Antenna for RF Systems

Name: GL8682 863-928MHz UFL Fpc Pcb Antenna for RF Systems
Brand: Global RF Tech
SKU: GL8682

SKU GL8682

GL8682 is a FPC PCB antenna for embedded wireless devices, compact enclosures and internal RF layouts. Its RF data lists 863-928 MHz operation, 2.15 dBi gain, liner polarization, and VSWR ＜2.0. Mechanical selection should confirm UFL connector, 45 dimensions, 3M Adhesive mounting against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40～＋85, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL8682

Frequency 863-928

Dimensions 45

gain 2.15

polarization Liner

vswr ＜2.0

Request Quote Datasheet Get Sample

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL8682
Frequency	863-928
Dimensions	45
gain	2.15
polarization	Liner
vswr	＜2.0
impedance	50
connector	UFL
mounting	3M Adhesive
temperature	-40～＋85
humidity	5～95
Category	Lora Antenna

Product Overview

Key Features

Technical Specifications

Frequency Range	863-928
Gain	2.15
VSWR	＜2.0
Input Impedance	50
Polarization	Liner
Connector Type	UFL
Dimensions	45
Mounting	3M Adhesive
Compliance	ROHS Compliant
Operating Temperature	-40～＋85
Humidity	5～95

Application Scenarios

GL8682 is suitable for embedded wireless devices, compact enclosures and internal RF layouts. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL8682 technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL8682 863-928MHz UFL Fpc Pcb Antenna for RF Systems is listed by Rftech for RF antenna and wireless connectivity projects in the Lora Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL8682).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
