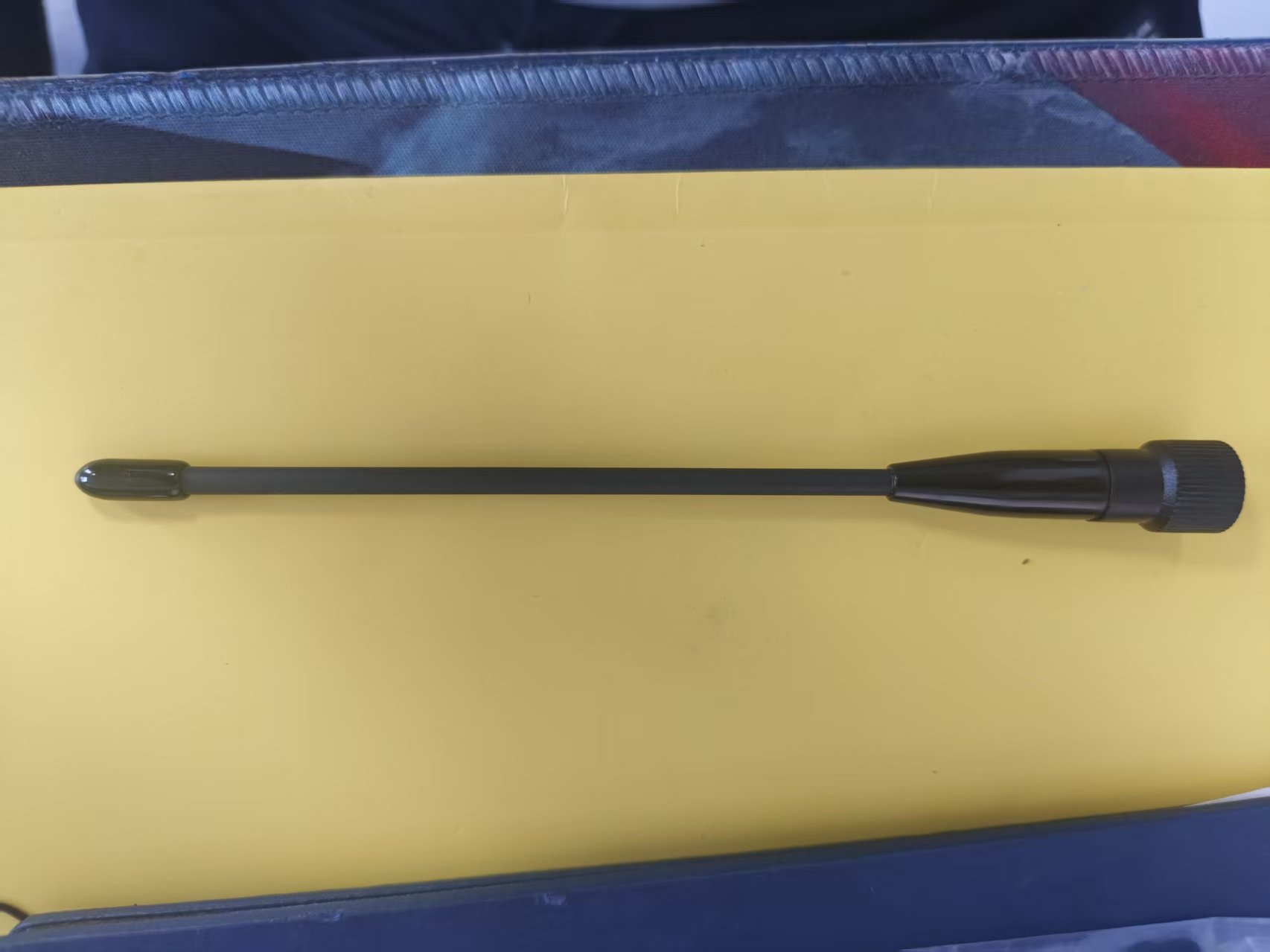

GLSL01 black dual-band terminal antenna with SMA plug

RF Product Terminal Antenna

GLSL01 915 MHz and 2.4 GHz Dual-Band Terminal Antenna

SKU GLSL01

GLSL01 dual-band terminal antenna covers 915 MHz and 2.4 GHz with 1-2 dBi rated gain, SMA plug, vertical polarization and 170 mm length.

SKU GLSL01

Frequency 915 MHz + 2.4 GHz

Dimensions Length 170 ± 3 mm

Connector SMA plug

Impedance 50 ohm nominal

VSWR 3.0 max.

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GLSL01
Frequency	915 MHz + 2.4 GHz
Dimensions	Length 170 ± 3 mm
Connector	SMA plug
Impedance	50 ohm nominal
VSWR	3.0 max.
Polarization	Vertical
Rated Gain	1-2 dBi
Input Power	50 W
Overall Length	170 ± 3 mm
Base Diameter	Dia. 14 ± 0.3 mm
Radiator Diameter	Dia. 4.1 ± 0.15 mm
Tip Diameter	Dia. 7.2 ± 0.2 mm
Antenna Material	High-frequency carbon steel wire
Color	Black
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Category	Terminal Antenna

GLSL01 product overview

GLSL01 is a dual-band terminal antenna covering 915 MHz and 2.4 GHz. Its main specification table lists vertical polarization, 50 ohm nominal impedance, 1-2 dBi rated gain and VSWR of 3.0 maximum.

Product fit

The documented antenna uses an SMA plug with 1/4-36UNS-2A thread and has an overall length of 170 ± 3 mm. The final datasheet also retains the supplied test and radiation-pattern records.

Integration and ordering notes

Before ordering, confirm both required operating frequencies, the SMA plug mating interface and the documented mechanical dimensions. The source drawing has values that differ from the main specification table for gain and operating temperature; this page uses the main table values stated in the datasheet.

Frequently asked questions

What frequencies does GLSL01 cover?

The main specification table lists 915 MHz and 2.4 GHz.

Which connector does it use?

The specified connector is an SMA plug with 1/4-36UNS-2A thread.

What gain and VSWR are specified?

The main specification table specifies 1-2 dBi rated gain and 3.0 maximum VSWR.

What is the documented length?

The overall length is 170 ± 3 mm.
