RF Product Mobile Antenna

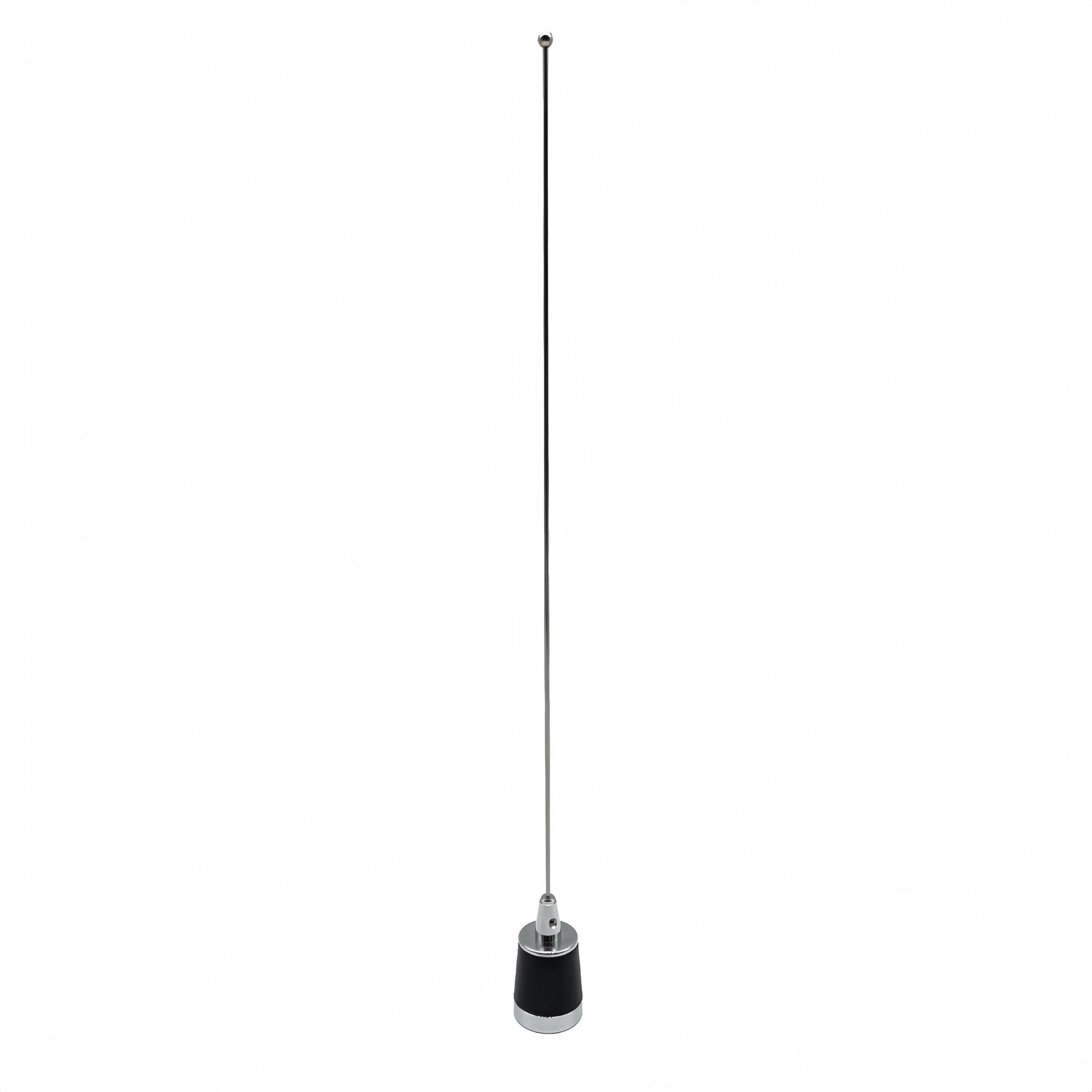

GLTDT800F 136-470 MHz Mobile Antenna

SKU GLTDT800F

GLTDT800F mobile antenna covers 136-470 MHz with 3.0-5.0 dBi gain, NMO connector, 530 mm length, vertical polarization and 200 W rating.

SKU GLTDT800F

Frequency 136-470 MHz

Dimensions Length 530 mm

Connector NMO

Gain 3.0-5.0 dBi

VSWR < 1.5

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GLTDT800F
Frequency	136-470 MHz
Dimensions	Length 530 mm
Connector	NMO
Gain	3.0-5.0 dBi
VSWR	< 1.5
Maximum Power	200 W
Impedance	50 ohm
Polarization	Vertical
Radiation - Source Wording	OMMI
Type	Mobile antenna
Length	530 mm
Material	Alloy + stainless steel
Accessories	Wrench x1; cutting drawing x1
Category	Mobile Antenna

GLTDT800F product overview

GLTDT800F is a mobile antenna covering 136-470 MHz. Its datasheet specifies 3.0-5.0 dBi gain, vertical polarization, 50 ohm impedance, 200 W maximum power and VSWR below 1.5.

Product fit

The documented antenna is 530 mm long, uses an NMO connector and is made from alloy and stainless steel. The source records Radiation as OMMI, which is retained here as source wording rather than expanded.

Integration and ordering notes

Before ordering, confirm the 136-470 MHz operating range, NMO mating interface, 530 mm clearance and required mobile installation. The listed accessories are a wrench and cutting drawing.

Frequently asked questions

What frequency range does GLTDT800F cover?

The specified frequency range is 136-470 MHz.

What gain and VSWR are specified?

The datasheet specifies 3.0-5.0 dBi gain and VSWR below 1.5.

Which connector does it use?

The specified connector is NMO.

What is the documented antenna length?

The documented length is 530 mm.

Selection and Project Support

GLTDT800F 136-470 MHz Mobile Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Mobile Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLTDT800F).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
