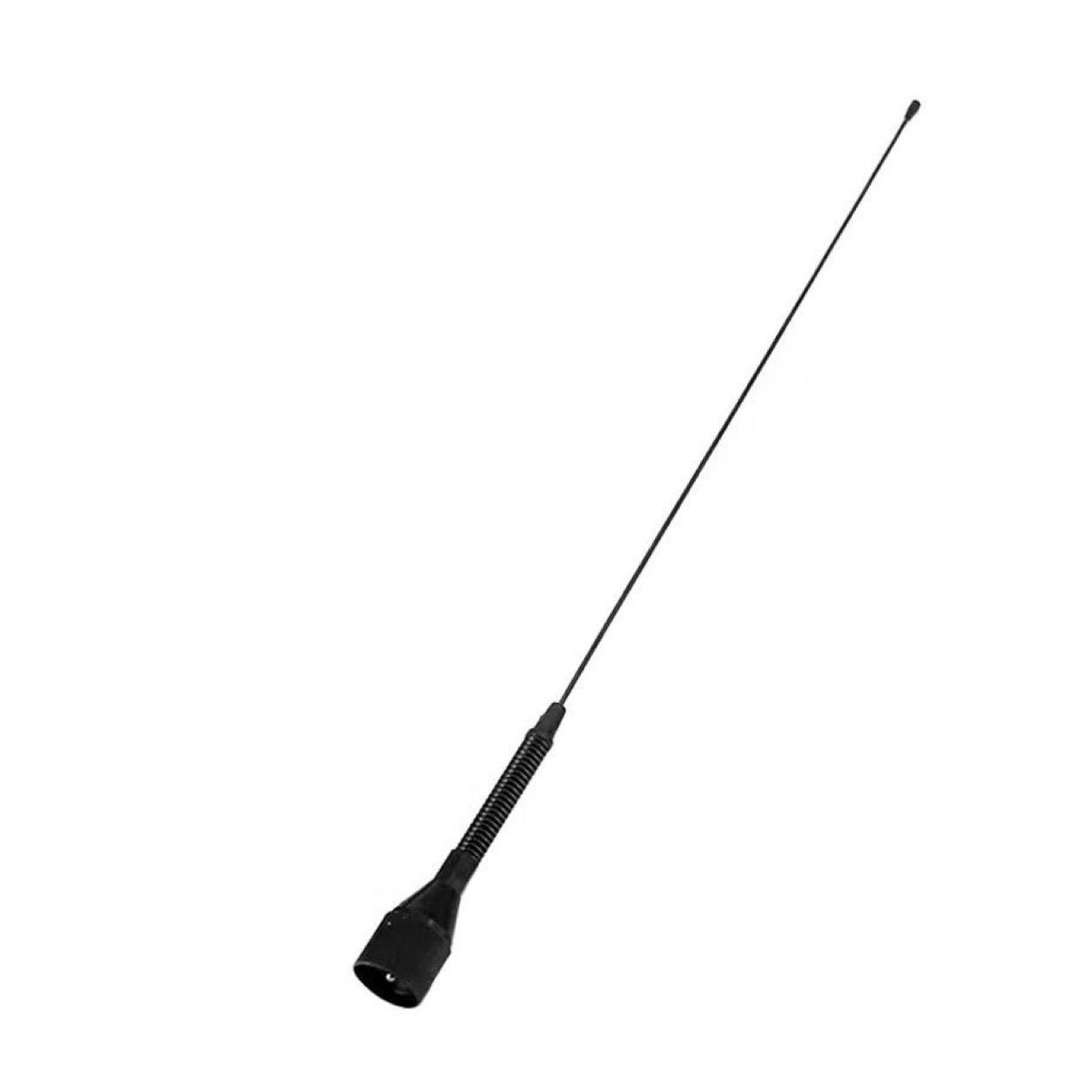

GLTDTM150C 134-174 MHz Mobile Antenna

SKU GLTDTM150C

GLTDTM150C mobile antenna covers 134-174 MHz with 3.0 dBi gain, M-J connector, 600 mm length, vertical polarization and 200 W rating.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GLTDTM150C

Frequency 134-174 MHz

Dimensions Length 600 mm

Connector M-J

Mounting Connector Mount

Application Mobile antenna

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GLTDTM150C
Frequency	134-174 MHz
Dimensions	Length 600 mm
Connector	M-J
Mounting	Connector Mount
Application	Mobile antenna
Gain	3.0 dBi
VSWR	< 1.5
Maximum Power	200 W
Impedance	50 ohm
Polarization	Vertical
Radiation - Source Wording	OMMI
Type	Mobile antenna
Length	600 mm
Color	Black
Material	Alloy + stainless steel
Accessories	Wrench x1; cutting drawing x1
Category	Mobile Antenna

GLTDTM150C product overview

GLTDTM150C is a mobile antenna covering 134-174 MHz. Its datasheet specifies 3.0 dBi gain, vertical polarization, 50 ohm impedance, 200 W maximum power and VSWR below 1.5.

Product fit

The documented antenna is 600 mm long, uses an M-J connector, has a black finish and is made from alloy and stainless steel.

Integration and ordering notes

Before ordering, confirm the 134-174 MHz operating range, M-J mating interface, 600 mm clearance and required mobile installation. The source records Radiation as OMMI; confirm the intended radiation description if it is required for the project.

Frequently asked questions

What frequency range does GLTDTM150C cover?

The specified frequency range is 134-174 MHz.

What gain and VSWR are specified?

The datasheet specifies 3.0 dBi gain and VSWR below 1.5.

Which connector does it use?

The specified connector is M-J.

What is the documented antenna length?

The documented length is 600 mm.

Selection and Project Support

GLTDTM150C 134-174 MHz Mobile Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Mobile Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLTDTM150C).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
