GL-DY006 GPS Antenna with MCX Right-Angle Male Connector
SKU GL-DY006
GL-DY006 active GPS antenna with MCX right-angle male connector, 3 m RG174 cable, and magnetic or adhesive mounting for compact positioning equipment.
SKU
GL-DY006
Frequency
1575.42+/-1 / 1601-1610 MHz
Dimensions
46 x 38.5 x 13.5 mm
Connector
MCX R/A male
Mounting
Adhesive Mount, Magnetic Mount
Application
Fleet Tracking & Telematics, Navigation & Positioning
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GL-DY006 |
|---|---|
| Frequency | 1575.42+/-1 / 1601-1610 MHz |
| Dimensions | 46 x 38.5 x 13.5 mm |
| Connector | MCX R/A male |
| Mounting | Adhesive Mount, Magnetic Mount |
| Application | Fleet Tracking & Telematics, Navigation & Positioning |
| Category | GPS&GNSS Antenna |
Product Overview

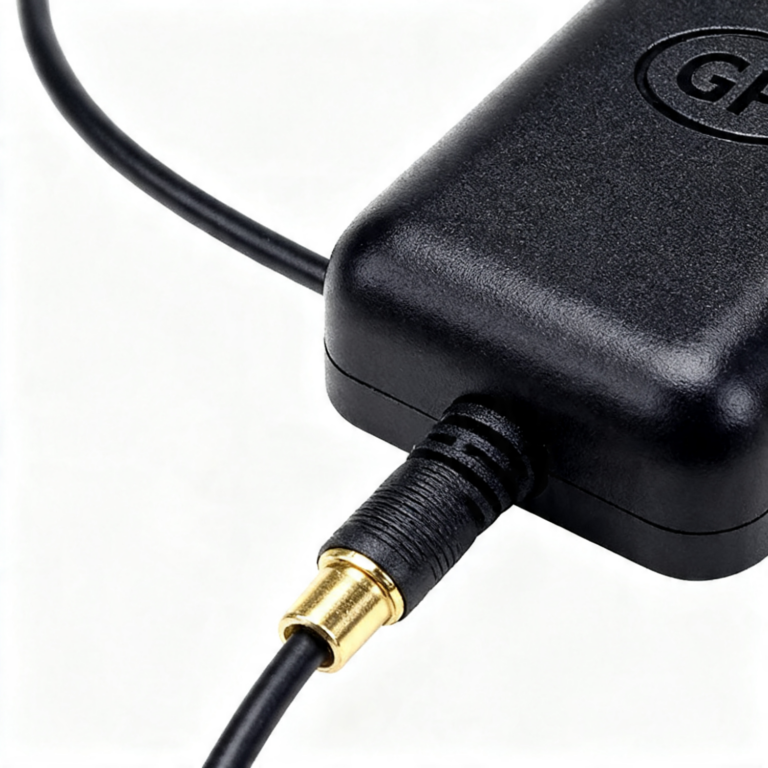

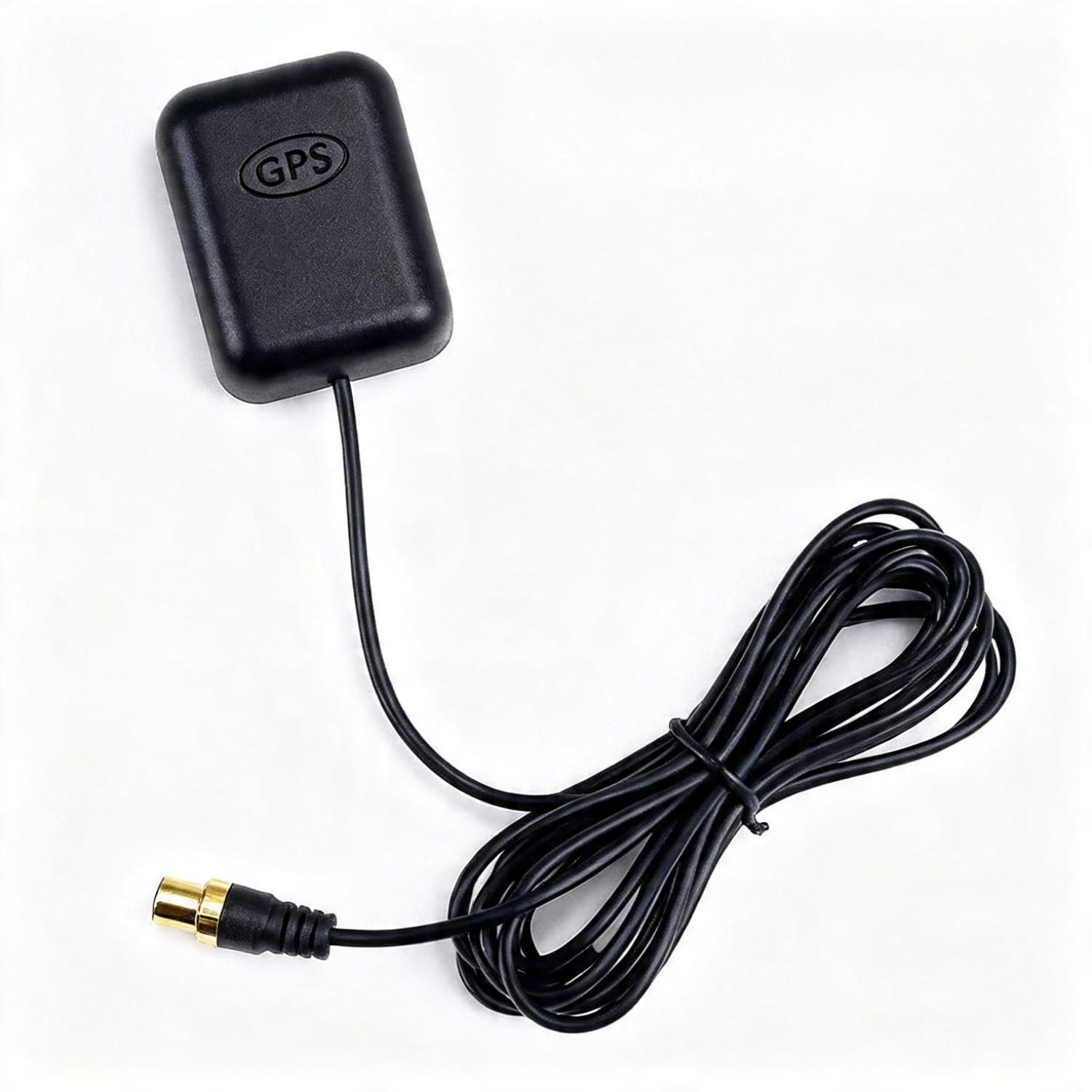

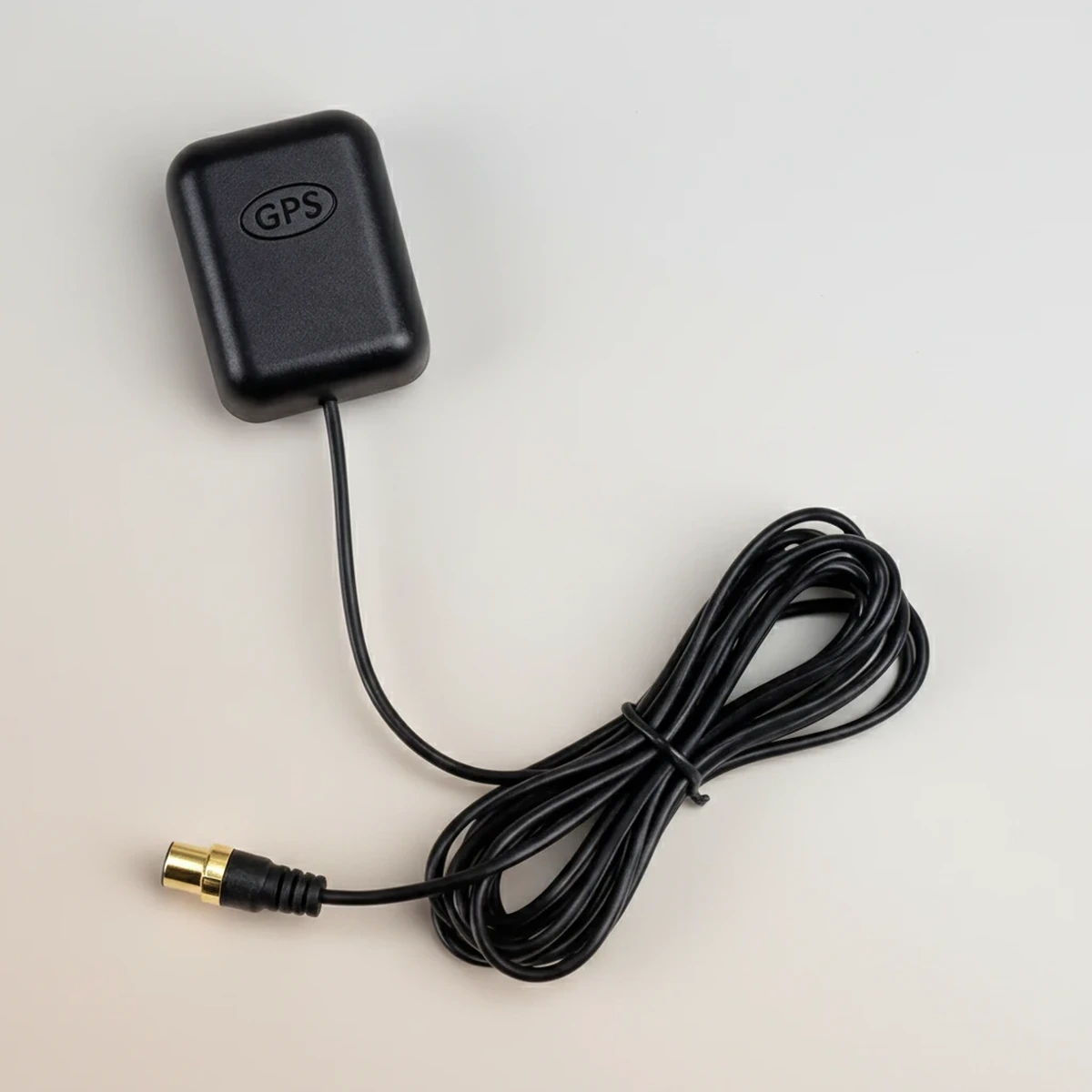

GL-DY006 is a compact active GPS antenna supplied with an MCX right-angle male connector and 3 m RG174 cable.

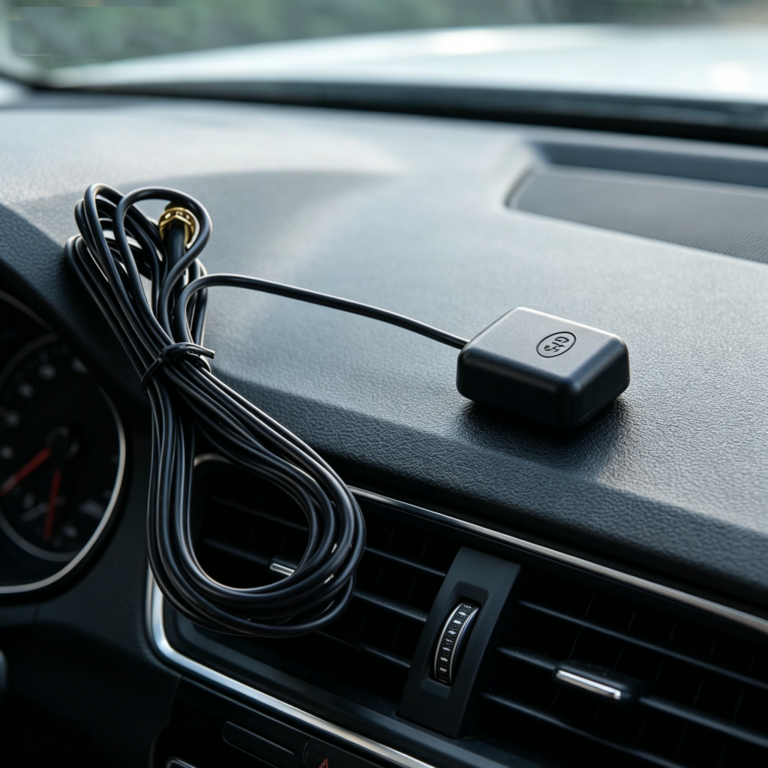

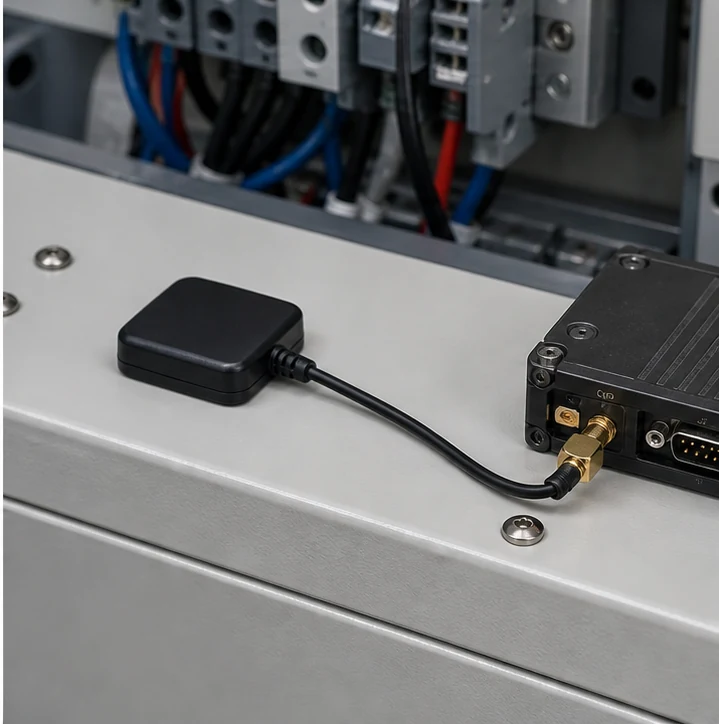

The design supports magnetic or adhesive installation and is suited to positioning terminals where connector direction and compact footprint matter.
Key Features
- 1575.42+/-1 / 1601-1610 MHz active GNSS reception.
- 28 +/- 2 dB LNA gain with noise figure below 1.5.

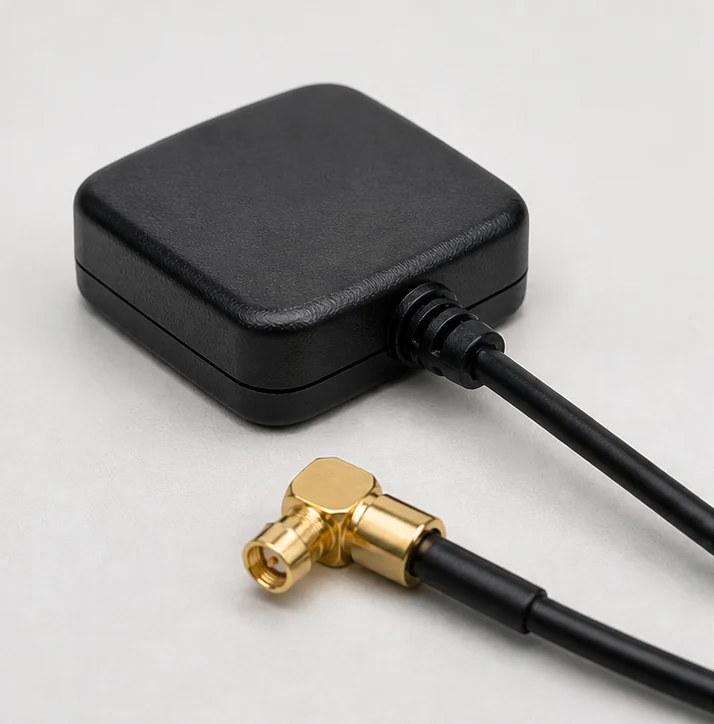

- MCX right-angle male connector for tight device layouts.
- IP65-IP67 protection level excluding the cable outlet.
Mechanical Notes

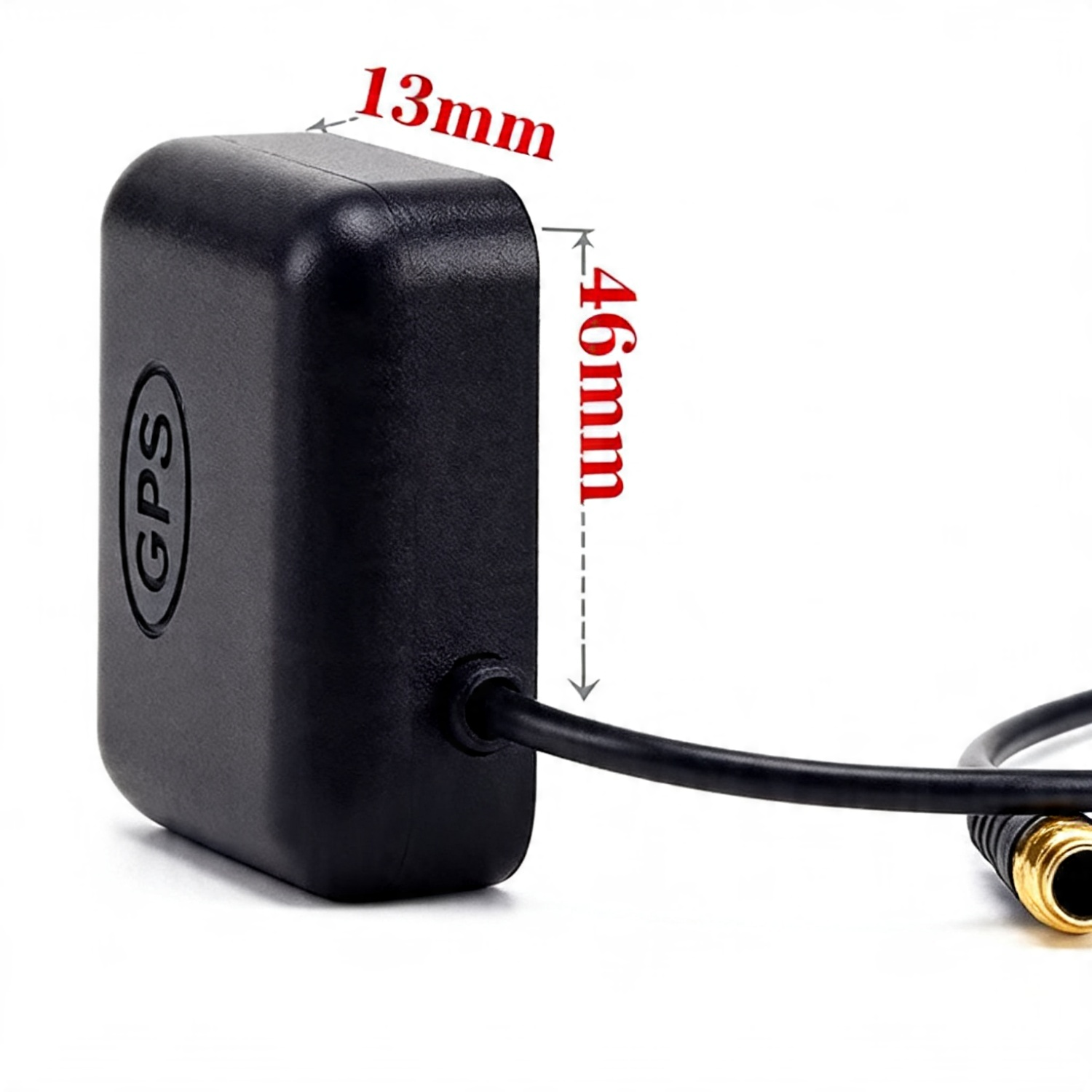

The antenna body measures 46 x 38.5 x 13.5 mm and uses magnet or adhesive installation depending on the host enclosure.
Operating temperature is -40 C to +85 C with humidity support from 5% to 95%.
Typical Applications
- Compact GPS receivers

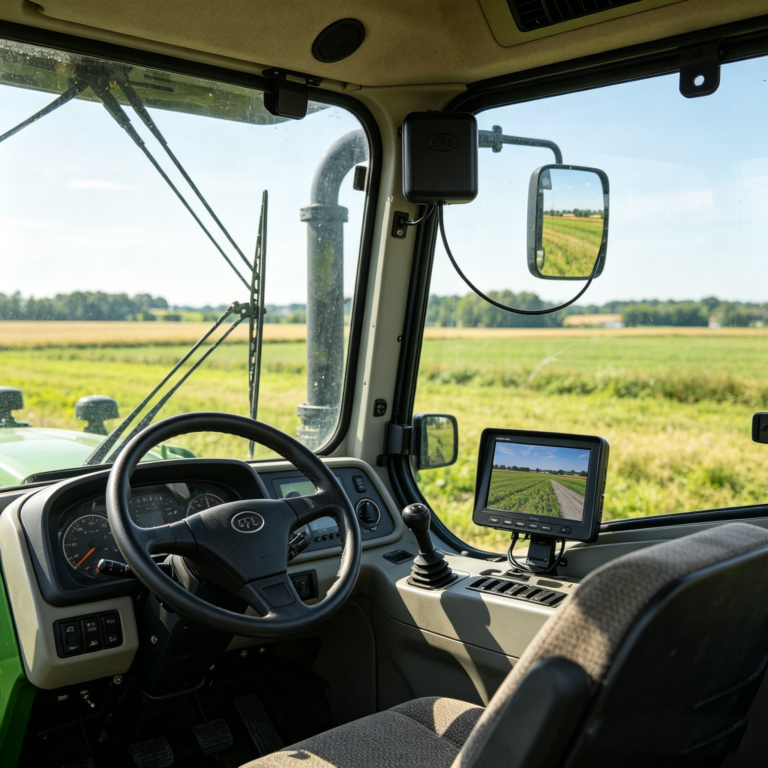

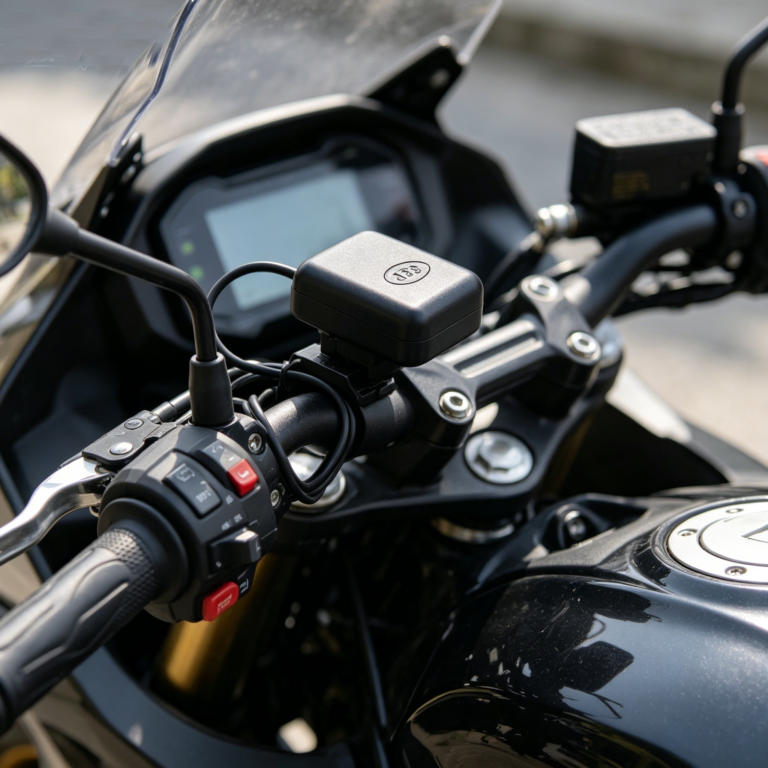

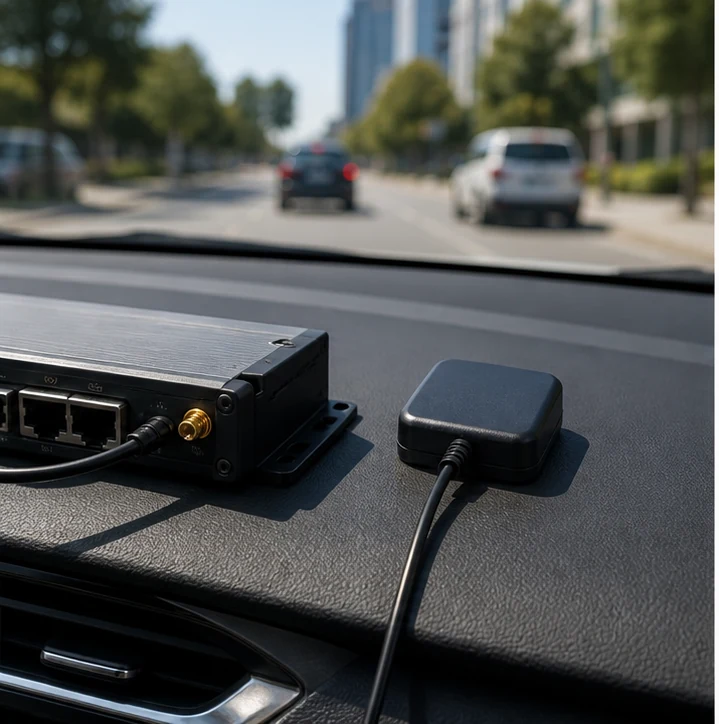

- Vehicle positioning modules
- Tracking and telematics devices
- Embedded navigation equipment
