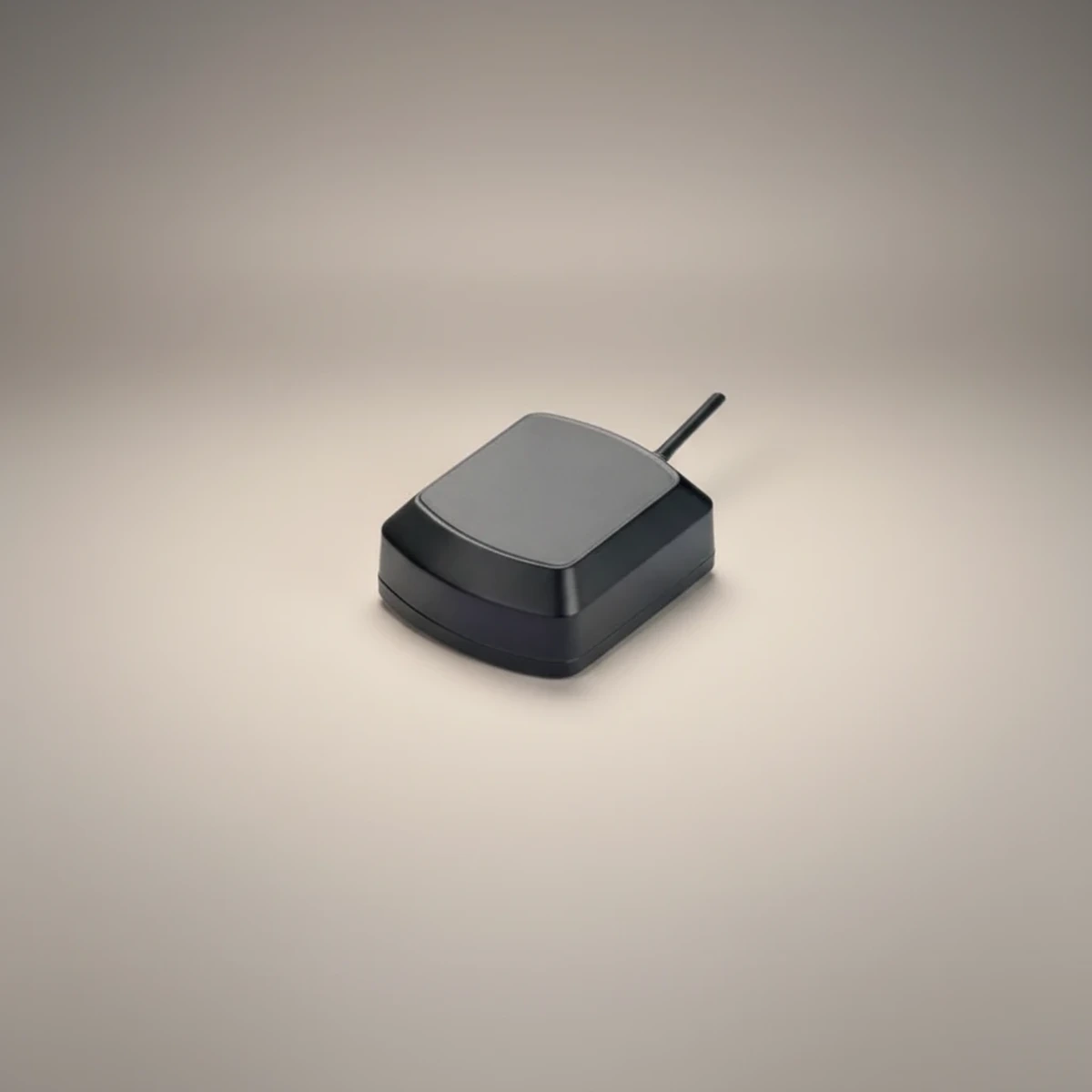

GL-DY002 magnetic mount antenna main product image

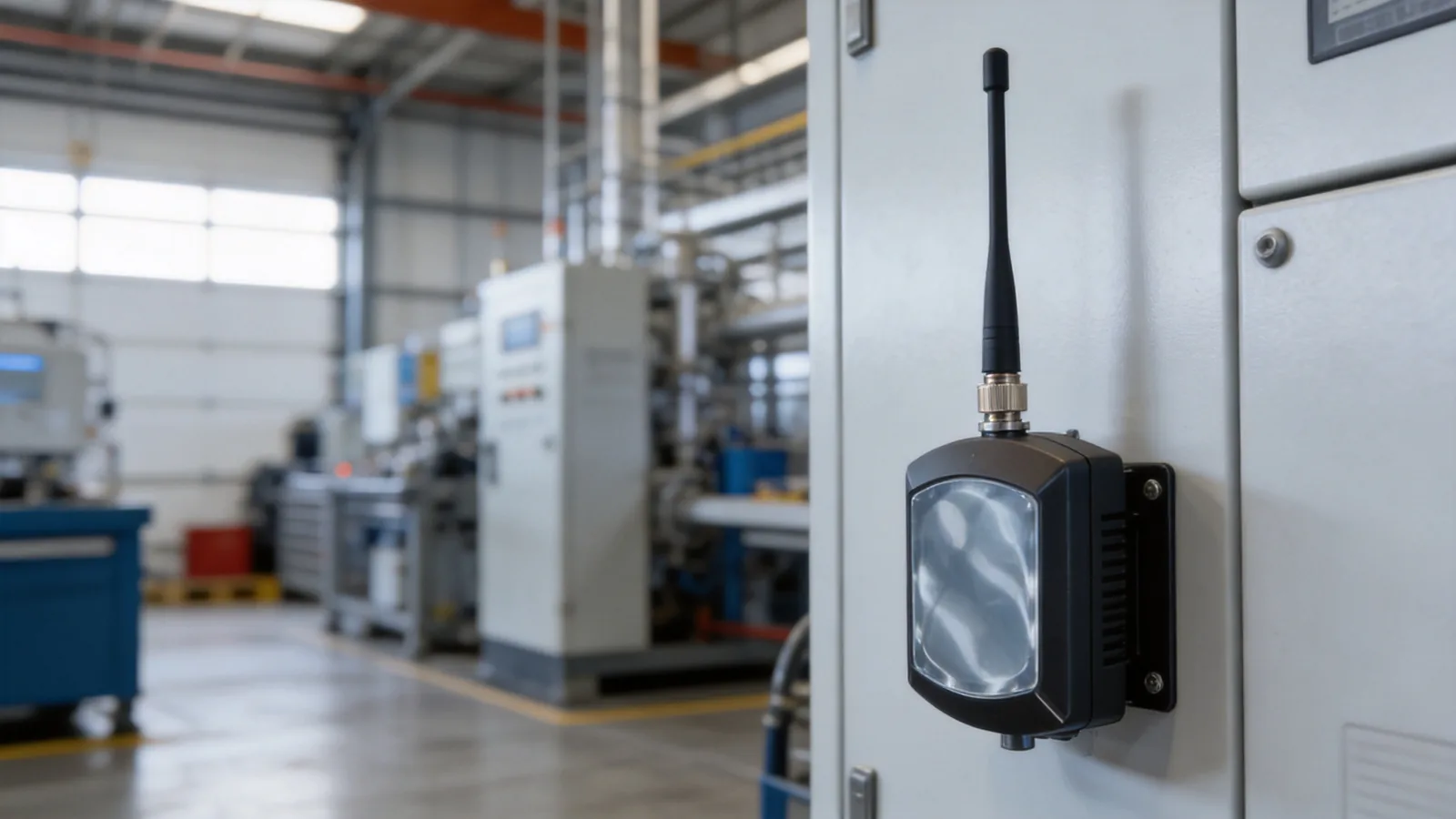

GL-DY002 magnetic mount antenna application scene 1

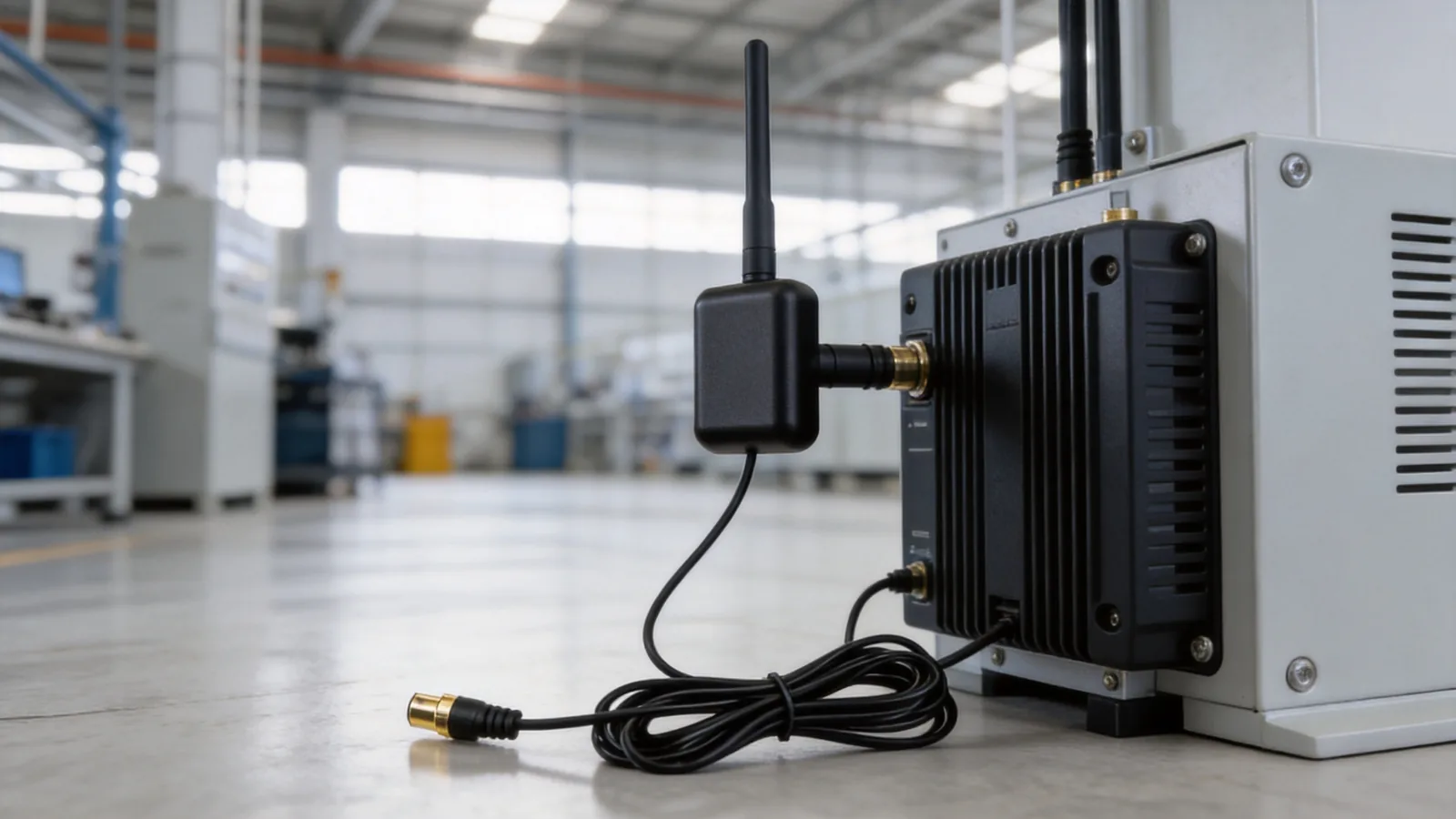

GL-DY002 magnetic mount antenna application scene 2

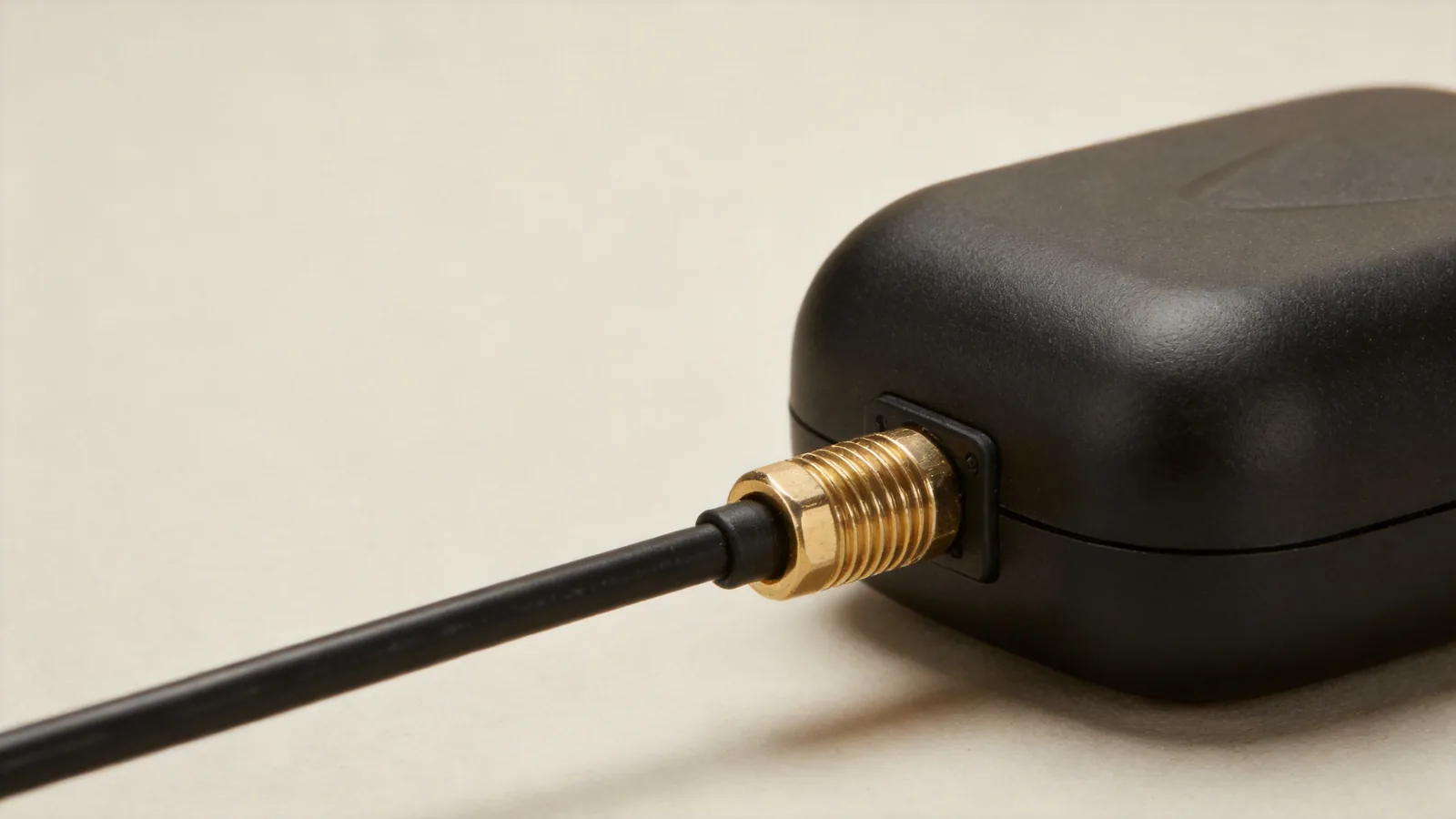

GL-DY002 magnetic mount antenna connector and mounting detail view

RF Product · GPS&GNSS Antenna

Active GPS/GNSS Magnetic Mount Antenna GL-DY002

SKUGL-DY002

GL-DY002 is an active GPS/GNSS antenna with magnetic or adhesive mounting. The source lists 1575.42 ±1 and 1601–1610 MHz, 28 ±2 dB LNA gain, 3–5 V DC supply and SMA plug or MCX connector options.

1575.42 ±1 / 1601–1610 MHz45.2 × 35.8 × 15.1 mmSMA plug or MCX

Request a Quote

Need a different connector, cable configuration or frequency? Send the SKU and project requirements.

Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029

MOQ10 pieces

SamplesFree sample available

Standard lead time7 days

CustomizationConnector and frequency

ProductionMass production

Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

SKUGL-DY002

Frequency1575.42 ±1 / 1601–1610 MHz

Dimensions45.2 × 35.8 × 15.1 mm

connector-typeSMA plug or MCX

mounting-installationMagnet or adhesive

LNA Gain28 ±2 dB

PolarizationRHCP

VSWRBelow 1.5

Nominal Impedance50 Ω

Supply Voltage3–5 V DC

Current Consumption5–15 mA

CableRG174; length to confirm

Ingress ProtectionIP65–IP67, excluding cable outlet

Operating Temperature−40°C to +85°C

CategoryGPS&GNSS Antenna

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

GNSS antenna selection

Check the active stage and connector variant

GL-DY002 is an active GPS/GNSS antenna with two documented frequency entries: 1575.42 ±1 and 1601–1610 MHz. The source lists 28 ±2 dB LNA gain, RHCP, VSWR below 1.5 and 50 Ω nominal impedance. LNA gain is amplifier gain, not passive antenna gain.

The source lists SMA plug or MCX connector options and RG174 cable, but it does not specify a common cable length. The housing measures 45.2 × 35.8 × 15.1 mm, with magnetic or adhesive installation. Confirm the selected connector, cable length and mounting surface before ordering.

The active stage requires 3–5 V DC and 5–15 mA. The listed temperature range is −40°C to +85°C. The source states IP65–IP67 excluding the cable outlet; check protection of the finished cable assembly for the installation.
