RF Product · Combo Antennas

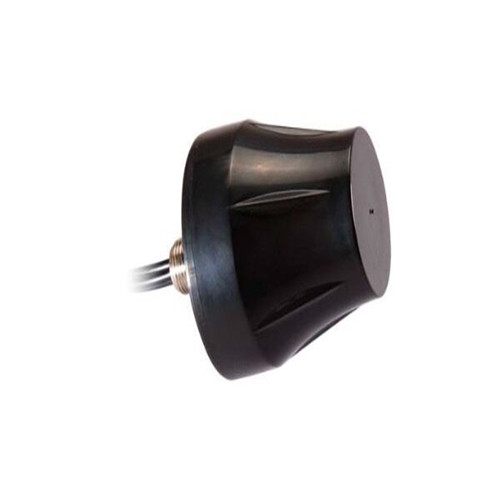

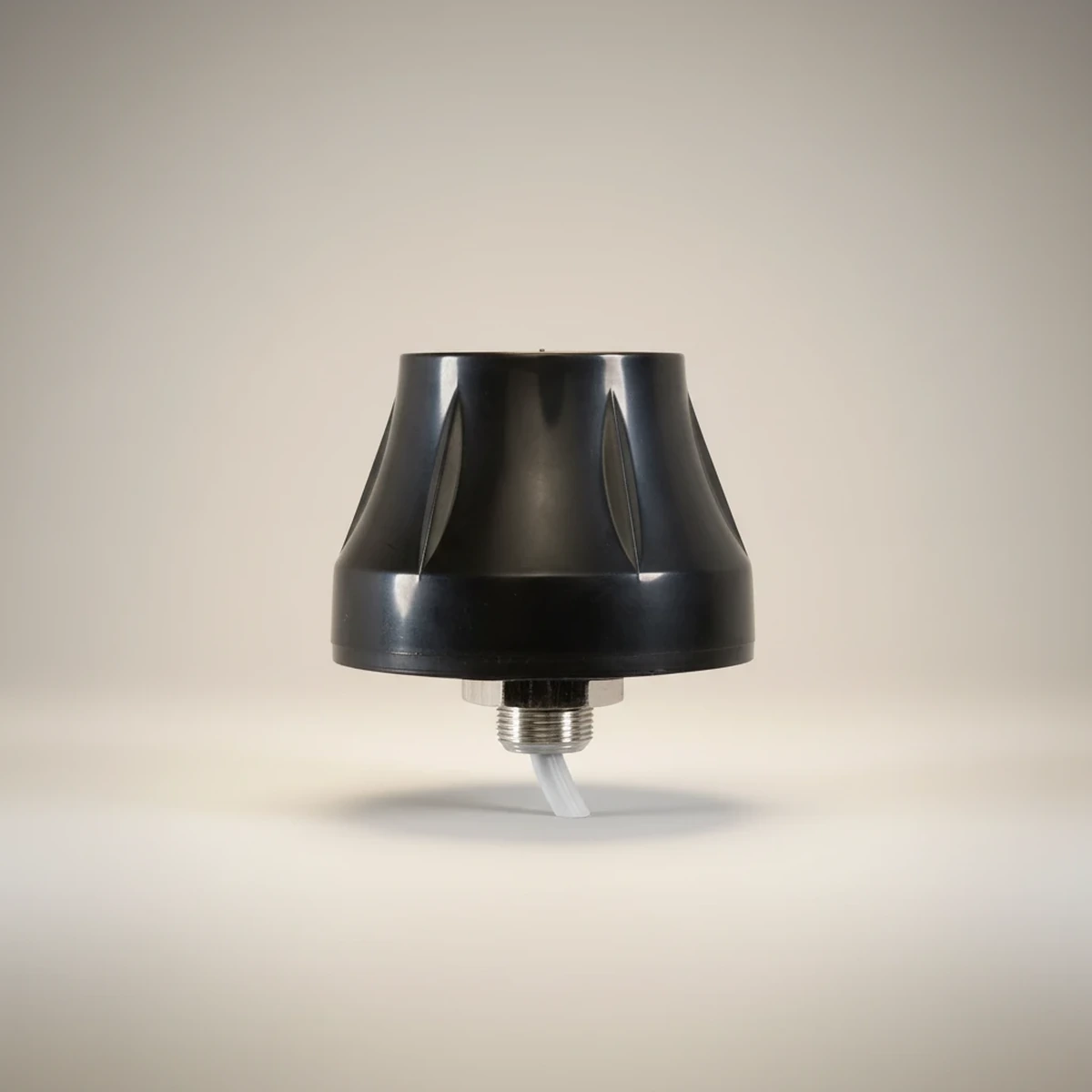

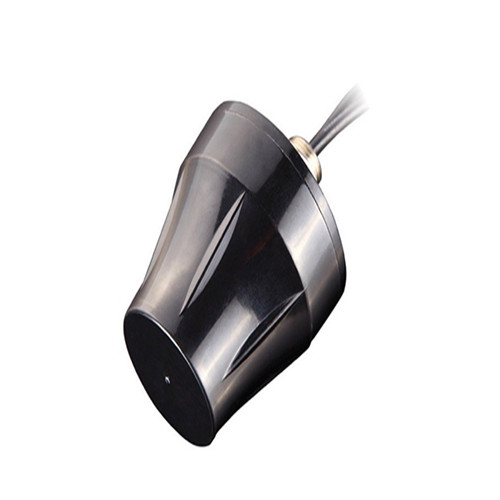

806-2670MHz SMA male or Fakra Gps/Gnss Antenna GL-DYB062
SKUGL-DYB062

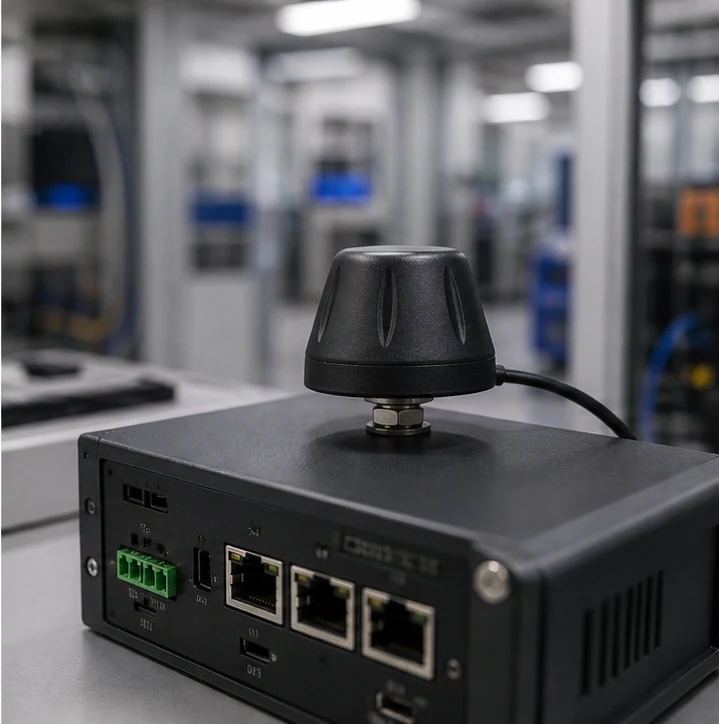

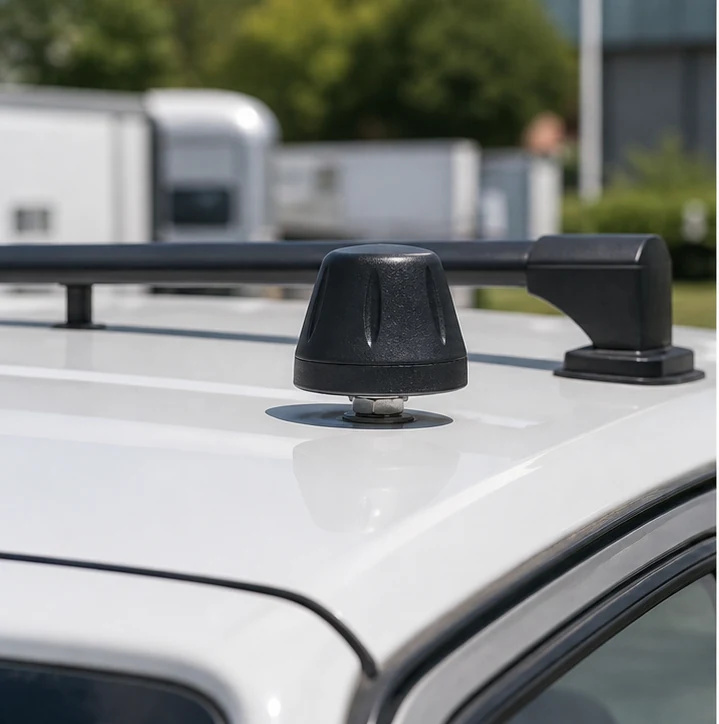

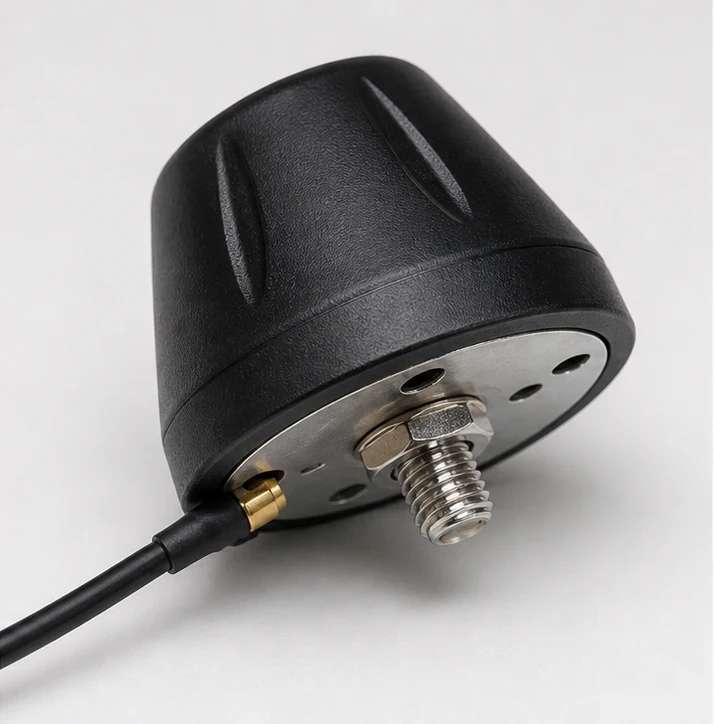

GL-DYB062 is a GPS/GNSS antenna for positioning terminals, fleet tracking and embedded navigation systems. Its RF data lists 1575.42-1610 806-960/1710-2670 MHz operation, 2.0dBic(Zenith) 2.0 dBi gain, rhcp linear polarization. Mechanical selection should confirm SMA male or Fakra connector, 50×48 dimensions, Screw mounting against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40-+85, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.
1575.42-1610 806-960/1710-267050×482.0dBic(Zenith) 2.0
Need a different connector, cable configuration or frequency? Send the SKU and project requirements.
Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production
Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.
Documented product data
Technical specifications
Values below come from the fields currently recorded for this model.SKUGL-DYB062
Frequency1575.42-1610 806-960/1710-2670

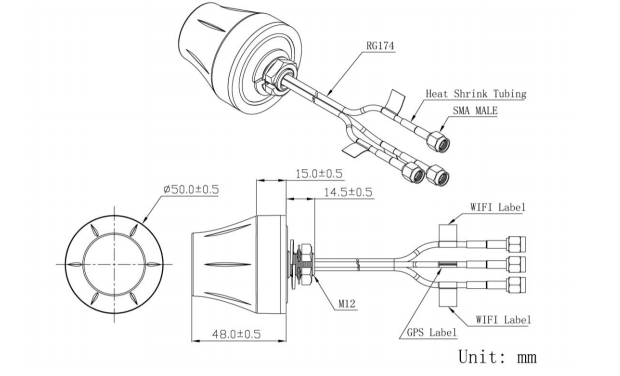

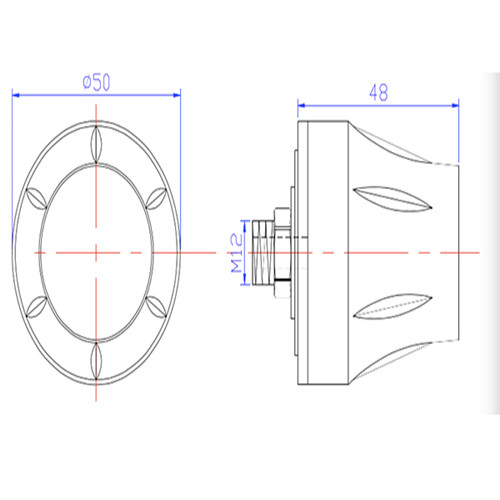

Dimensions50×48
gain2.0dBic(Zenith) 2.0
polarizationRHCP Linear
impedance50

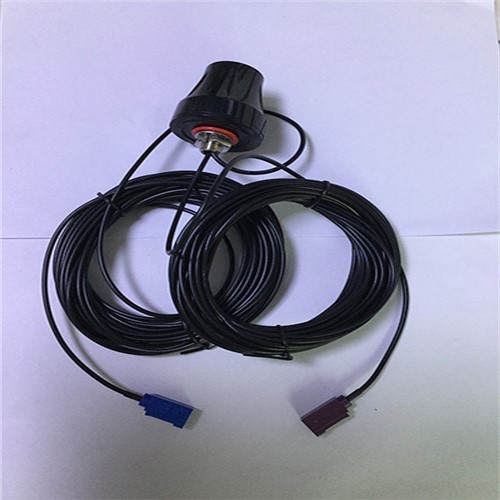

connectorSMA male or Fakra
mountingScrew
temperature-40-+85
CategoryCombo Antennas
Verified product record
Product details
Available fields are grouped by engineering purpose without filling unsupported values.Dimensions50×48
connectorSMA male or Fakra
mountingScrew
temperature-40-+85
SKUGL-DYB062
CategoryCombo Antennas
