GL-DY003-4G Screw Mount Antenna, 698-960/1710-2690 MHz

Name: GL-DY003-4G Screw Mount Antenna, 698-960/1710-2690 MHz
Brand: Rftech
SKU: GL-DY003-4G

SKU GL-DY003-4G

GL-DY003-4G is a screw mount antenna for vehicle terminals, outdoor gateways, routers, IoT enclosures and fixed wireless devices. The listing uses model-specific PDF values including frequency 698-960/1710-2690 MHz, and connector SMA male.

SKU GL-DY003-4G

Frequency 698-960/1710-2690 MHz

Dimensions φ46.6*14.5 mm

Connector SMA Male

Application outdoor enclosures, cabinets, routers, smart meters, industrial IoT and vehicle-mounted devices

VSWR <1.5

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY003-4G
Frequency	698-960/1710-2690 MHz
Dimensions	φ46.6*14.5 mm
Connector	SMA Male
Application	outdoor enclosures, cabinets, routers, smart meters, industrial IoT and vehicle-mounted devices
VSWR	<1.5
Nominal Impedance	50 Ω
Polarization	Linear
Cable	RG174, 2500 mm
Ingress Protection	IP65~IP67 (exclude cable outlet)
Mounting Method	Screw
Operating Temperature	-40～+85 ℃
Humidity	5～95%
Vibration	10 to 55Hz with 1.5mm amplitude 2hours
Compliance	ROHS Compliant
Category	Screw Mount Antenna

Product Overview

GL-DY003-4G is a screw mount antenna for vehicle terminals, outdoor gateways, routers, IoT enclosures and fixed wireless devices. Its technical values are taken from the selected SKU datasheet so engineers can check RF fit, mechanical fit and environmental requirements before sampling.

Key Features

Frequency Range: 698-960/1710-2690 MHz
VSWR: <1.5
Connector Type: SMA male
Dimensions: φ46.6*14.5 mm
Mounting Method: Screw

Technical Specifications

Frequency Range	698-960/1710-2690 MHz
VSWR	<1.5
Nominal Impedance	50 Ω
Polarization	Linear
Connector Type	SMA male
Cable	RG174, 2500 mm
Dimensions	φ46.6*14.5 mm
Ingress Protection	IP65~IP67 (exclude cable outlet)
Mounting Method	Screw
Operating Temperature	-40～+85 ℃
Humidity	5～95%
Vibration	10 to 55Hz with 1.5mm amplitude 2hours
Compliance	ROHS Compliant

Mechanical and Installation Notes

Review the listed connector, dimension, mounting method and operating environment before release. The listed interface is SMA male. Reserve installation space for φ46.6*14.5 mm. If the project needs a variant not shown in the datasheet, confirm the option before ordering.

Applications and Industries

GL-DY003-4G can be considered for vehicle terminals, outdoor gateways, routers, IoT enclosures and fixed wireless devices. Typical checks include operating band, coverage pattern, connector or mounting compatibility, cable routing, environmental exposure and expected order quantity.

Resources

Product datasheet: GL-DY003-4G.pdf

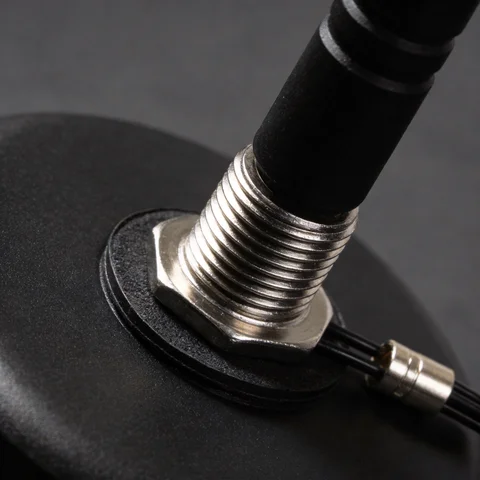

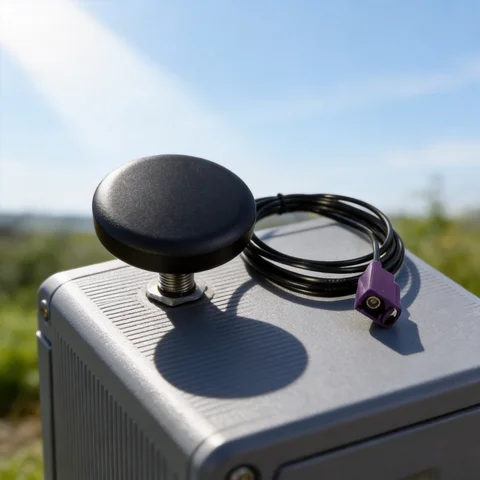

SKU-specific product image and three generated application images are included for this model.

Engineering Selection Notes

Before sampling, compare the datasheet values with the radio module, enclosure, installation surface and target service area. Share the SKU, frequency band, connector, mounting space and environment when requesting a quote.

FAQ

What is the main use for GL-DY003-4G?

GL-DY003-4G is selected as a screw mount antenna for vehicle terminals, outdoor gateways, routers, IoT enclosures and fixed wireless devices.

Which specification should be checked first?

Start with the operating band or mechanical size, then confirm connector, mounting and environmental requirements.

Can GL-DY003-4G be sampled or customized?

Yes. Provide the SKU, target band, connector or mounting requirements, environment, quantity and any packaging notes for confirmation.

Selection and Project Support

GL-DY003-4G Screw Mount Antenna, 698-960/1710-2690 MHz is listed by Rftech for RF antenna and wireless connectivity projects in the Screw Mount Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY003-4G).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
