Directional link selection
A high-gain grid for a defined 2.2–2.5 GHz link
GL-DY2225V24 is a grid parabolic antenna specified from 2200 to 2500 MHz. Its original sheet lists point-to-point and point-to-multipoint wireless systems among the applications, with 24 dBi gain and vertical polarization.

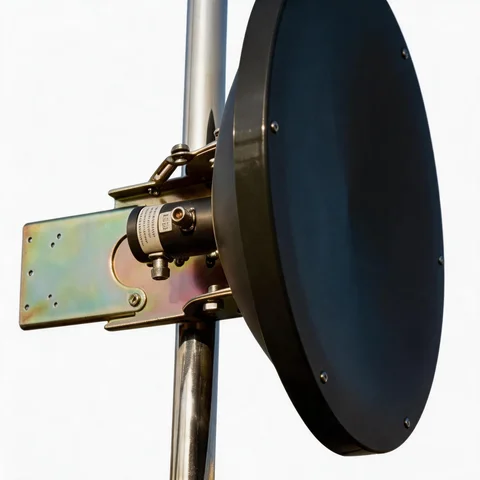

The 0.9 × 0.6 m reflector and 7° horizontal / 11° vertical beamwidth require deliberate aiming and mounting clearance. The N female interface and 40–50 mm mounting hardware range should be checked against the site design.
The sheet lists 0–20° mechanical tilt, 2.5 kg antenna weight and 60 m/s rated wind velocity. Verify structural support and alignment for the finished installation.
