GL-DY380512V5 380-512 MHz 5 dBi N-K Wall Mount Panel Antenna

SKU GL-DY380512V5

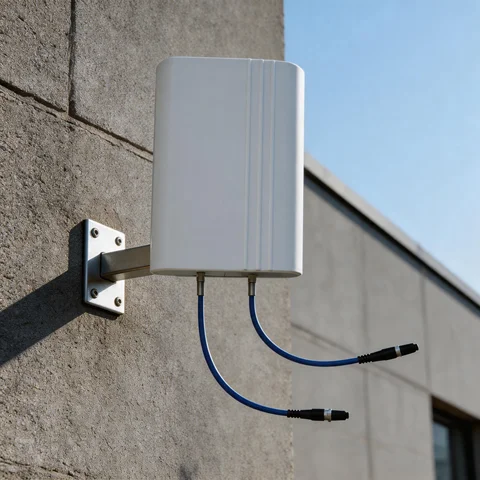

GL-DY380512V5 is a wall mount panel antenna for targeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues. Confirmed specifications include frequency 380-512, gain 5, connector N-K, mounting Pole-holding. Use it for model-specific RF selection, sampling, and OEM integration when formal documents are handled separately.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GL-DY380512V5

Frequency 380-512

Dimensions 250×220×60

Connector N-K

Mounting Pole-holding

Application targeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY380512V5
Frequency	380-512
Dimensions	250×220×60
Connector	N-K
Mounting	Pole-holding
Application	targeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues
Gain	5
Polarization	Vertical
Horizontal Beamwidth	95°
Front-to-Back Ratio	>=20
Nominal Impedance	50
Maximum Input Power	50
Weight	0.65
Radome	ABS
Material	AI
Operating Temperature	-40°C to +65 °C
Category	Wall Mount Panel Antenna

Product Overview

GL-DY380512V5 is a wall mount panel antenna prepared for targeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues. The confirmed table includes Frequency Range: 380-512; Gain: 5; Polarization: Vertical; VSWR: <=1.5; Nominal Impedance: 50.

This page is built from the model-specific local product document and image set. The product can be quoted or sampled from confirmed product data; request the latest formal drawing if the project requires additional documentation.

Key Features

GL-DY380512V5 Wall Mount Panel Antenna for targeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues
Operating band: 380-512
Gain: 5
Polarization: Vertical
VSWR: <=1.5
Connector: N-K
Installation: Pole-holding

Technical Specifications

Frequency Range	380-512
Gain	5
Polarization	Vertical
VSWR	<=1.5
Horizontal Beamwidth	95°
Front-to-Back Ratio	>=20
Nominal Impedance	50
Maximum Input Power	50
Connector Type	N-K
Dimensions	250×220×60
Weight	0.65
Radome	ABS
Material	AI
Mounting / Installation	Pole-holding
Operating Temperature	-40°C to +65 °C

Mechanical and Installation Notes

Use the listed mounting method: Pole-holding. Match the RF interface to N-K. Reserve space for 250×220×60. Review operating limits against -40°C to +65 °C.

Applications and Industries

GL-DY380512V5 can be considered for targeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues. Match the operating band, gain, connector, mechanical size and installation method to the radio, enclosure and coverage target before release.

Resources

Engineering file set: 2 supporting local document(s) used to prepare this listing
Formal downloadable document: not attached in this upload package

Engineering Selection Notes

Before release or sampling, review the product against the target radio, receiver, enclosure, ground plane, cable route and installation surface. If a listed value does not match the project requirement, request a matching connector, cable length, bracket, color, label or packaging option.

Sampling and Customization Support

For sample support, provide SKU GL-DY380512V5, target frequency, connector type, cable length, mounting space, application environment, expected quantity and any packaging requirements. Rftech can confirm the closest standard model or a custom variant.

FAQ

What operating band does GL-DY380512V5 support?

GL-DY380512V5 is listed with 380-512. Check this band against the module, network band or receiver requirement before sampling.

What connector details are available for GL-DY380512V5?

Connector: N-K. Confirm variants before ordering.

How is GL-DY380512V5 installed?

Installation: Pole-holding. Dimensions: 250×220×60.

Can GL-DY380512V5 be quoted from this listing?

Yes. This listing uses confirmed model-specific product data and images; request the latest formal document when procurement approval requires it.

Selection and Project Support

GL-DY380512V5 380-512 MHz 5 dBi N-K Wall Mount Panel Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Wall Mount Panel Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY380512V5).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
