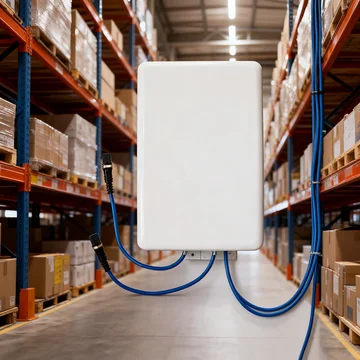

GL-DY7040VH7 application image

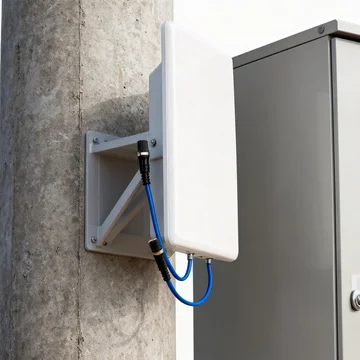

GL-DY7040VH7 application image
GL-DY7040VH7 application image

RF Product · Wall Mount Panel Antenna

Wall Mount Panel Antenna, 698-960 / 1710-2700 / 3400-4000, 6 / 7 / 8 GL-DY7040VH7

SKUGL-DY7040VH7

GL-DY7040VH7 is a wall mount panel antenna for targeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues. Key specifications include frequency 698-960 / 1710-2700 / 3400-4000, gain 6 / 7 / 8, connector 2×N-K, mounting Mounting on the wall. Suitable for RF projects that require verified model-specific specifications and configurable sampling support.

698-960 / 1710-2700 / 3400-4000400×180×622×N-K
Request a Quote Download Datasheet

Need a different connector, cable configuration or frequency? Send the SKU and project requirements.

Commercial informationData revision V1 · 10 September 2026 · valid through 10 September 2029
MOQ10 pieces
SamplesFree sample available
Standard lead time7 days
CustomizationConnector and frequency
ProductionMass production

Volume pricing is negotiable. Custom-order MOQ is confirmed against the project specification.

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.
SKUGL-DY7040VH7
Frequency698-960 / 1710-2700 / 3400-4000
Dimensions400×180×62
Connector2×N-K
MountingMounting on the wall
Applicationtargeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues
Gain6 / 7 / 8
PolarizationV＋H
VSWR≤2.0
Nominal Impedance50
Horizontal Beamwidth90°- 80° / 80°- 70° / 65°- 60°
Vertical Beamwidth80°- 70° / 65°- 60° / 55°- 50°
Front-to-Back Ratio≥10 / ≥13 / ≥15
Isolation≥23
Maximum Input Power50
Weight1.5
RadomeABS
MaterialAI
ColorWhite | White | White
Operating Temperature-40°C to +65 °C
CategoryWall Mount Panel Antenna

Verified product record

Product details

Available fields are grouped by engineering purpose without filling unsupported values.
RF performance
Frequency698-960 / 1710-2700 / 3400-4000
Gain6 / 7 / 8
PolarizationV＋H
VSWR≤2.0
Nominal Impedance50
Horizontal Beamwidth90°- 80° / 80°- 70° / 65°- 60°
Vertical Beamwidth80°- 70° / 65°- 60° / 55°- 50°
Front-to-Back Ratio≥10 / ≥13 / ≥15
Isolation≥23
Maximum Input Power50
Interface and size
Dimensions400×180×62
Connector2×N-K
MountingMounting on the wall
Weight1.5
RadomeABS
MaterialAI
ColorWhite | White | White
Operating conditions
Operating Temperature-40°C to +65 °C
Other documented details
SKUGL-DY7040VH7
Applicationtargeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues
CategoryWall Mount Panel Antenna

Current documentation

Downloads

Files shown here are linked to this exact product record.
PDFProduct datasheetTechnical information for this model

Documented use cases

Applications

Application labels below are stored on this product.
targeted indoor or outdoor wireless coverage for corridors, warehouses, campuses and venues
