GL-DY5158VH9016 5150-5850 MHz 2×15.5 dBi 2xN-K Sector Panel Antenna

SKU GL-DY5158VH9016

GL-DY5158VH9016 is a sector panel antenna for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. Confirmed specifications include frequency 5150-5850, gain 2×15.5, connector 2xN-K, mounting Dia. 35～Dia. 75. Use it for model-specific RF selection, sampling, and OEM integration when formal documents are handled separately.

SKU GL-DY5158VH9016

Frequency 5150-5850

Dimensions 400×128×56

Connector 2×N-K

Mounting Dia. 35～Dia. 75

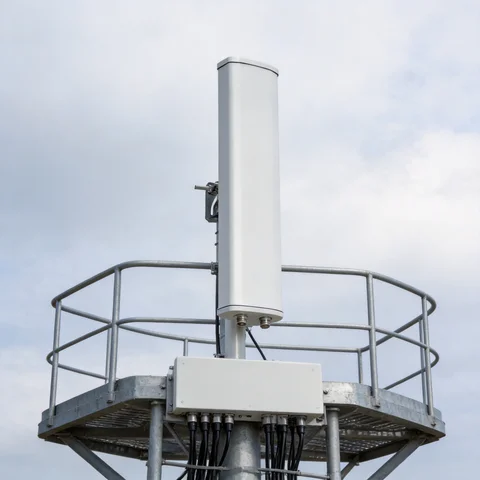

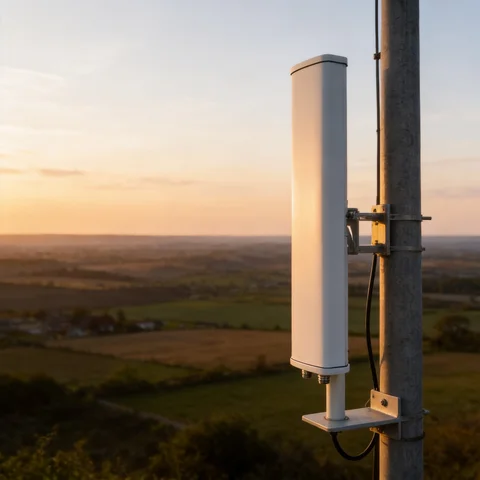

Application base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks

Request Quote

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL-DY5158VH9016
Frequency	5150-5850
Dimensions	400×128×56
Connector	2×N-K
Mounting	Dia. 35～Dia. 75
Application	base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks
Gain	2×15.5
Polarization	Vertical + Horizontal
Horizontal Beamwidth	90°
Vertical Beamwidth	7.5°
Front-to-Back Ratio	>=20
Isolation	>=28
Nominal Impedance	50
Maximum Input Power	50
Weight	1.4
Radome	UPVC
Material	UPVC
Color	Gray
Operating Temperature	-40°C to +65 °C
Category	Sector Panel Antenna

Product Overview

GL-DY5158VH9016 is a sector panel antenna prepared for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. The confirmed table includes Frequency Range: 5150-5850; Gain: 2×15.5; Polarization: Vertical + Horizontal; VSWR: <=1.7; Nominal Impedance: 50.

This page is built from the model-specific local product document and image set. The product can be quoted or sampled from confirmed product data; request the latest formal drawing if the project requires additional documentation.

Key Features

GL-DY5158VH9016 Sector Panel Antenna for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks
Operating band: 5150-5850
Gain: 2×15.5
Polarization: Vertical + Horizontal
VSWR: <=1.7
Connector: 2xN-K
Installation: Dia. 35～Dia. 75

Technical Specifications

Frequency Range	5150-5850
Gain	2×15.5
Polarization	Vertical + Horizontal
VSWR	<=1.7
Horizontal Beamwidth	90°
Vertical Beamwidth	7.5°
Front-to-Back Ratio	>=20
Isolation	>=28
Nominal Impedance	50
Maximum Input Power	50
Connector Type	2xN-K
Dimensions	400×128×56
Weight	1.4
Radome	UPVC
Material	UPVC
Color	Gray
Mounting / Installation	Dia. 35～Dia. 75
Operating Temperature	-40°C to +65 °C

Mechanical and Installation Notes

Use the listed mounting method: Dia. 35～Dia. 75. Match the RF interface to 2xN-K. Reserve space for 400×128×56. Review operating limits against -40°C to +65 °C.

Applications and Industries

GL-DY5158VH9016 can be considered for base-station sector coverage, outdoor WLAN cells and 4G/5G point-to-multipoint networks. Match the operating band, gain, connector, mechanical size and installation method to the radio, enclosure and coverage target before release.

Resources

Engineering file set: 1 supporting local document(s) used to prepare this listing
Formal downloadable document: not attached in this upload package

Engineering Selection Notes

Before release or sampling, review the product against the target radio, receiver, enclosure, ground plane, cable route and installation surface. If a listed value does not match the project requirement, request a matching connector, cable length, bracket, color, label or packaging option.

Sampling and Customization Support

For sample support, provide SKU GL-DY5158VH9016, target frequency, connector type, cable length, mounting space, application environment, expected quantity and any packaging requirements. Rftech can confirm the closest standard model or a custom variant.

FAQ

What operating band does GL-DY5158VH9016 support?

GL-DY5158VH9016 is listed with 5150-5850. Check this band against the module, network band or receiver requirement before sampling.

What connector details are available for GL-DY5158VH9016?

Connector: 2xN-K. Confirm variants before ordering.

How is GL-DY5158VH9016 installed?

Installation: Dia. 35～Dia. 75. Dimensions: 400×128×56.

Can GL-DY5158VH9016 be quoted from this listing?

Yes. This listing uses confirmed model-specific product data and images; request the latest formal document when procurement approval requires it.

Selection and Project Support

GL-DY5158VH9016 5150-5850 MHz 2×15.5 dBi 2xN-K Sector Panel Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Sector Panel Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL-DY5158VH9016).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
