GL65DP08, DP08-04, VP12 and GL90VP08 Panel Antennas

SKUGL65DP08

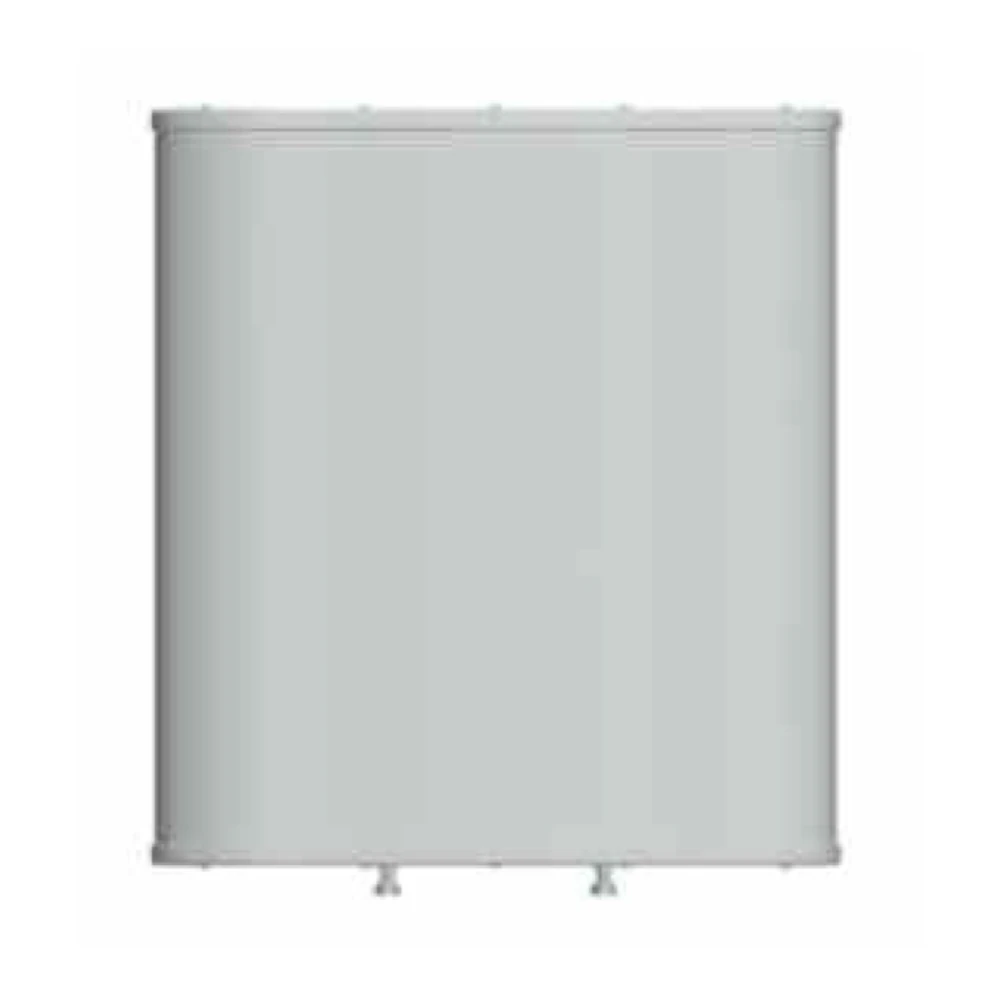

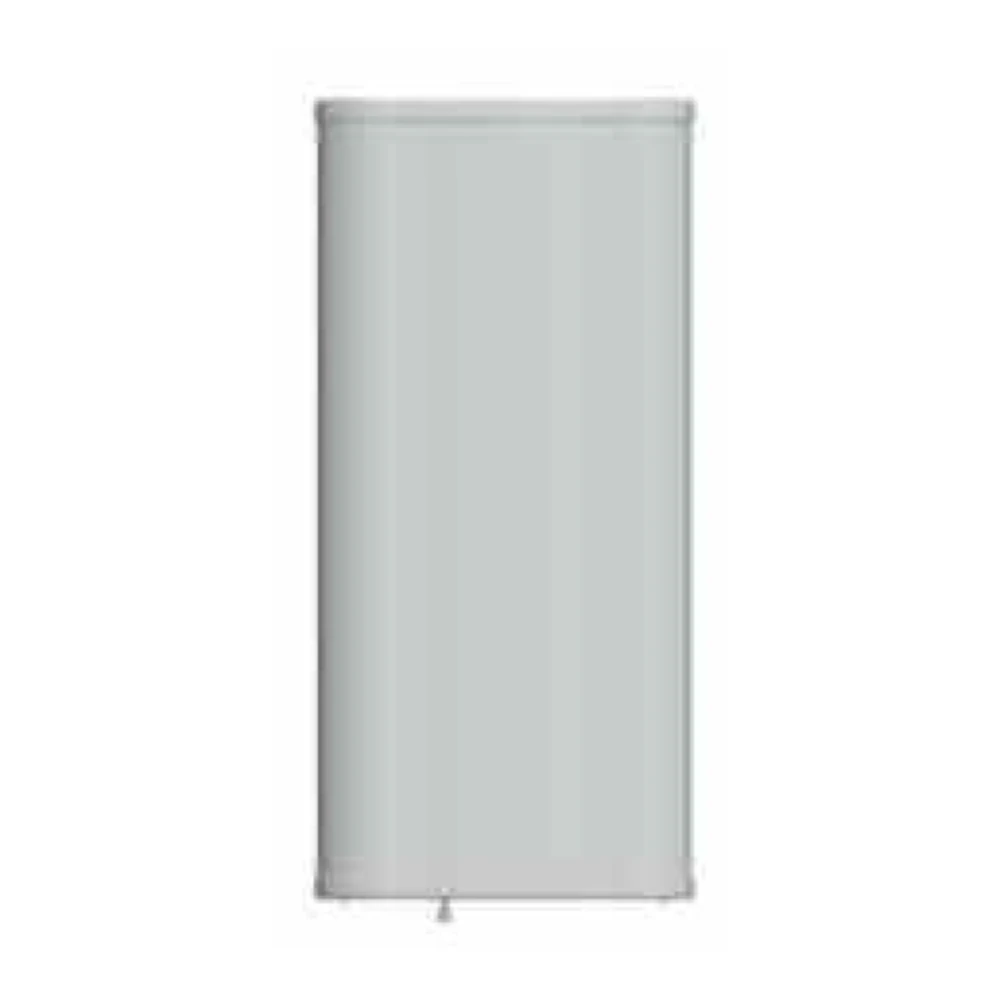

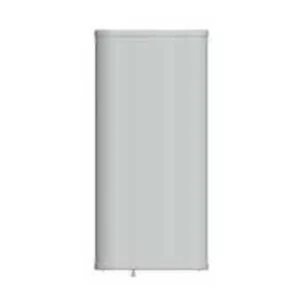

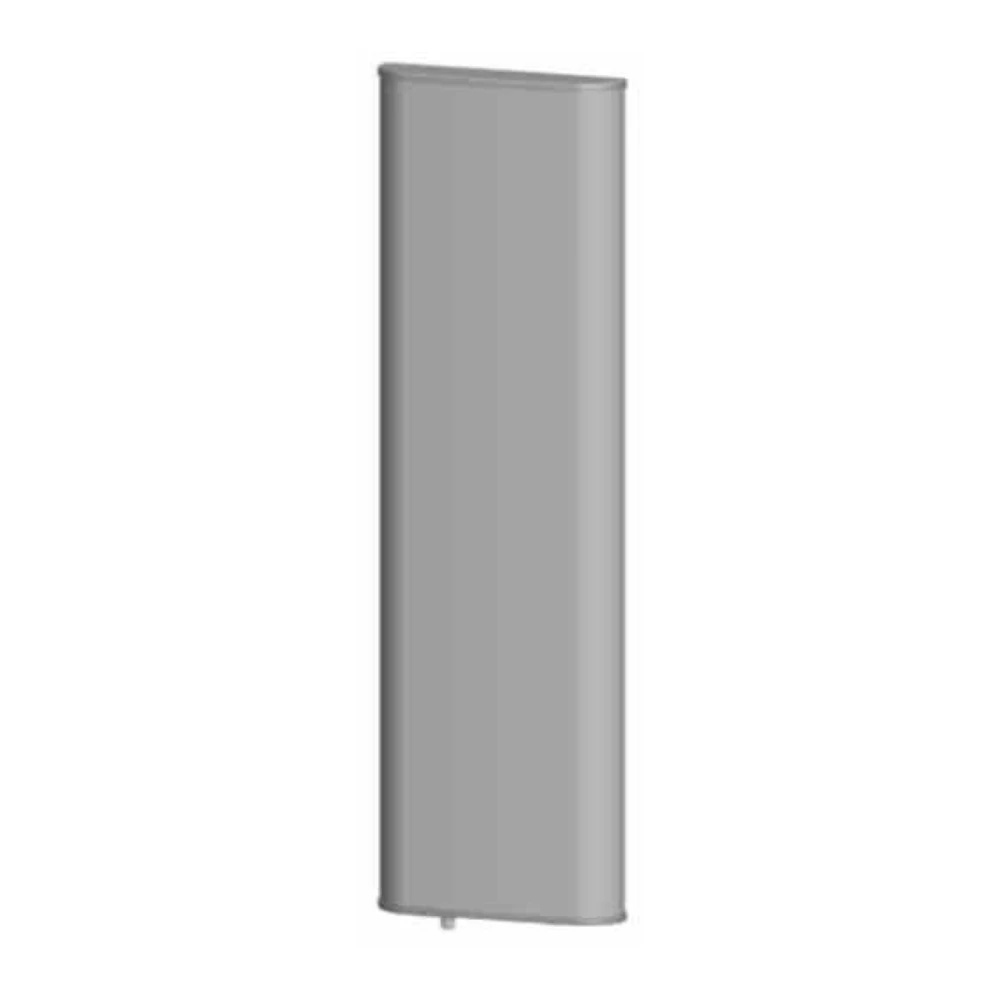

These panel antennas cover different documented frequency specifications. GL65DP08 lists 223-235 MHz, GL65DP08-04 lists 380-450 MHz, GL65VP12 lists 330-350 or 350-390 MHz, and GL90VP08 lists 351-366 MHz.

GL65DP08 / GL65DP08-04 / GL65VP12 / GL90VP08MHz: 223-235; 380-450; 330-350/350-390; 351-3662*N Female; N Female

Request a Quote Download Datasheet

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

Model comparison
Parameter	GL65DP08	GL65DP08-04	GL65VP12	GL90VP08
Frequency-MHz	223-235	380-450	330-350/350-390	351-366
Bandwidth-MHz	12	70	20/40	15
Gain-dBi	8	8	11/11.5	7.8
Electrical Downtil-º	0	0	0	0
Isolation-dB	≥25	≥25
Vertical Beamwidth-º	66±5	66±5	32/28	60
Horizontal Beamwidth-º	69±5	69±5	72/68	90
F/B Ratio-dB	≥18	≥20	≥20	≥17
VSWR	≤1.5	≤1.5	≤1.5	≤1.5
Nominal Impedance-Ω	50	50	50	50
Polarization	±45º	±45º	Vertical	Vertical
Maximum Power-W	200	200	300	200
Height/width/depth-mm	860680190	540500128	1400450145	600320140
Weight-kg	16	5	14	7
Connector	2*N Female	2*N Female	N Female	N Female

Frequency range and bandwidth are separate specifications. A blank cell means the source does not state a value. See each model’s datasheet below.

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

Model comparison

Compare polarization, frequency and panel size

The two DP08 models have plus/minus 45-degree polarization and two N female connectors. GL65VP12 and GL90VP08 have vertical polarization and an N female connector. The DP08 sheets also list isolation of at least 25 dB; that value is not assigned to the VP models.

GL65VP12 keeps its paired bandwidth, gain and beamwidth values exactly as supplied. The comparison includes the individual panel dimensions, weights and maximum power ratings rather than treating the models as one specification.
