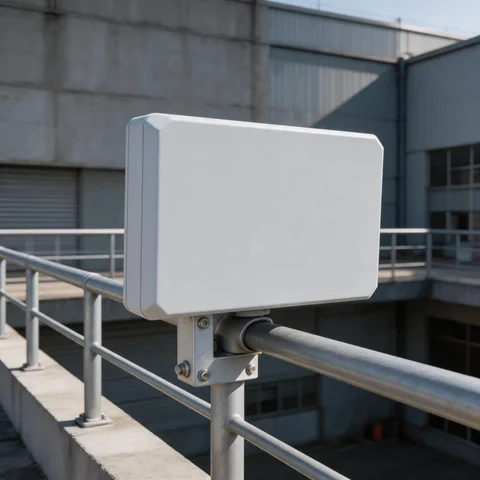

GL2458VH604NF Dual-band small panel antenna application scene 1

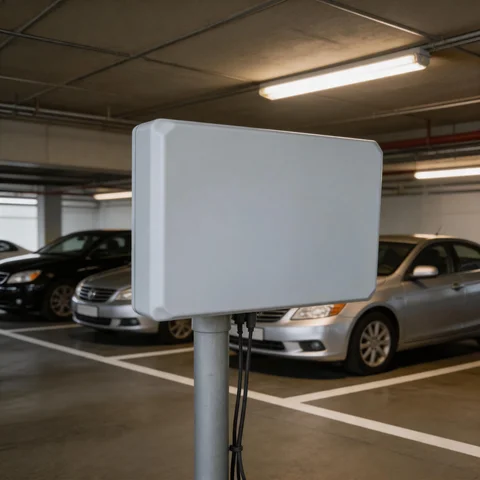

GL2458VH604NF Dual-band small panel antenna application scene 2

GL2458VH604NF Dual-band small panel antenna connector and mounting detail view

RF Product Flat Panel Antenna

GL2458VH604NF 2400-6000MHz Dual-Band Small Panel Antenna

Name: GL2458VH604NF 2400-6000MHz Dual-Band Small Panel Antenna
Brand: Rftech
SKU: GL2458VH604NF

SKU GL2458VH604NF

GL2458VH604NF is a Dual-band small panel antenna for RF systems, IoT devices, gateways and custom wireless projects. Its RF data lists 2400-2500/4900-6000MHz MHz operation, horizontal+vertical polarization, and VSWR ≤2.0. Mechanical selection should confirm type 4*NF connector, 190×190×40mm dimensions against the installation plan. The specification table keeps frequency, gain, impedance, connector, cable, mounting and environmental details grouped for this exact model. Operating temperature is listed as -40°C to +65 °C, which should be checked for outdoor, indoor or vehicle exposure before sampling. Use the related products and technical sheet link to compare nearby models without mixing parameters from another antenna family.

SKU GL2458VH604NF

Frequency 2400-2500/4900-6000MHz

Dimensions 190×190×40mm

polarization Horizontal+Vertical

vswr ≤2.0

connector type 4*NF

Request Quote Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL2458VH604NF
Frequency	2400-2500/4900-6000MHz
Dimensions	190×190×40mm
polarization	Horizontal+Vertical
vswr	≤2.0
connector	type 4*NF
temperature	-40°C to +65 °C
Category	Flat Panel Antenna

Product Overview

Key Features

Technical Specifications

Polarization	Horizontal+Vertical
VSWR	≤2.0
Horizontal Beamwidth	60°
Vertical Beamwidth	60°
Lightning Protection	DC Ground
Connector Type	type 4*NF
Radome Material	ABS
Radome Color	white
Operating Temperature	-40°C to +65 °C

Application Scenarios

GL2458VH604NF is suitable for RF systems, IoT devices, gateways and custom wireless projects. Use the frequency range, gain, connector, mounting and environmental ratings above to match it with the radio, enclosure, cable route and installation site.

The gallery supports visual checks for installation scenes, connector position and mounting detail before sampling.

Selection Notes

Before sampling, confirm connector orientation, cable requirements, mounting clearance, operating temperature and any project-specific compliance needs. Missing options should be confirmed with RFTECH instead of inferred from another model.

Technical Sheet

Download the GL2458VH604NF technical sheet for connector, mechanical and RF details.

Selection and Project Support

GL2458VH604NF 2400-6000MHz Dual-Band Small Panel Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Flat Panel Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL2458VH604NF).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
