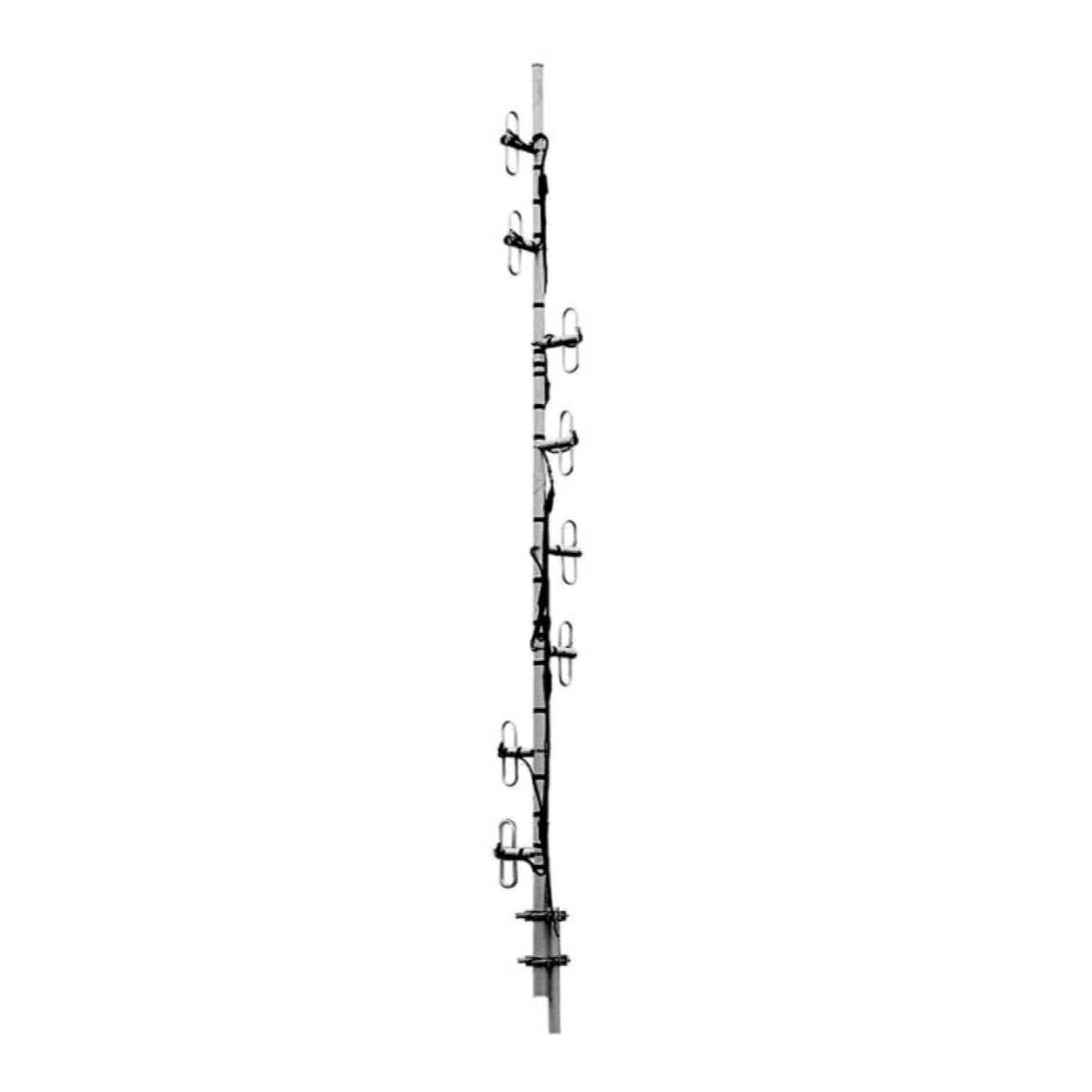

GL350IIA 330-400 MHz Omni 12/Directional 15 dBi 8 Folded Dipole Antenna

SKU GL350IIA

GL350IIA is a 330-400 MHz 8 Folded Dipole Antenna for high-power uhf base-station antenna, with Omni 12/Directional 15 dBi gain, UHF or N female connector and Mast mount.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GL350IIA

Frequency 330-400 MHz

Dimensions 6.0 m

Connector UHF or N female

Mounting Mast mount

Application High-power UHF base-station antenna

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350IIA
Frequency	330-400 MHz
Dimensions	6.0 m
Connector	UHF or N female
Mounting	Mast mount
Application	High-power UHF base-station antenna
Bandwidth	16 MHz
Gain	Omni 12/Directional 15 dBi
Vertical Beamwidth	6.5 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	500 W
Length	6.0 m
Weight	20.0 kg
Rated Wind Velocity	60 m/s
Remarks	Separated into two parts
Category	Folded Dipole Antenna

8 Folded Dipole Antenna Role

GL350IIA is a 330-400 MHz 8 Folded Dipole Antenna for larger UHF base-station systems requiring an 8 folded dipole array supplied in two parts. Its source record lists Omni 12/Directional 15 dBi gain, UHF or N female connector and Mast mount, so the product page is kept tied to those exact ordering details.

RF and Mechanical Fit

The antenna uses Vertical polarization, 50 Ω nominal impedance and <=1.5 VSWR. The documented power rating is 500 W, and the published size is 6.0 m. Confirm cable loss, mating connector and mounting hardware before installation.

Installation Notes

Use GL350IIA where the 330-400 MHz band, 500 W rating and 6.0 m two-part construction are acceptable for the support structure. Do not substitute a similar GL-DY or adjacent Evelyn model unless the frequency range, connector, mounting method and mechanical envelope have all been checked against the project requirement.

Application Fit

High-power UHF base-station antenna
Systems that operate inside 330-400 MHz and require a 50 Ω antenna path
OEM or project builds where the SKU, connector and mounting details are stated before quotation

Selection Questions

What should be confirmed before ordering GL350IIA?

Confirm the operating channels, requested connector, installation method and whether the documented 6.0 m size is acceptable for the equipment or support structure.

Can this model be swapped with a nearby SKU?

Only after engineering review. Several Evelyn models share a similar frequency family but differ by suffix, connector, power rating, gain, mount or physical length.

Related Resources

Source-Specific Note

The listed vertical beamwidth is 6.5 °. Source remark: Separated into two parts.

Technical Specifications

Frequency Range	330-400 MHz
Bandwidth	16 MHz
Gain	Omni 12/Directional 15 dBi
Vertical Beamwidth	6.5 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	500 W
Length	6.0 m
Weight	20.0 kg
Rated Wind Velocity	60 m/s
Connector	UHF or N female
Remarks	Separated into two parts

Selection and Project Support

GL350IIA 330-400 MHz Omni 12/Directional 15 dBi 8 Folded Dipole Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Folded Dipole Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350IIA).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
