GL400 Folded Dipole Antennas: DQ-2, IA and IA-2

SKUGL400DQ-2

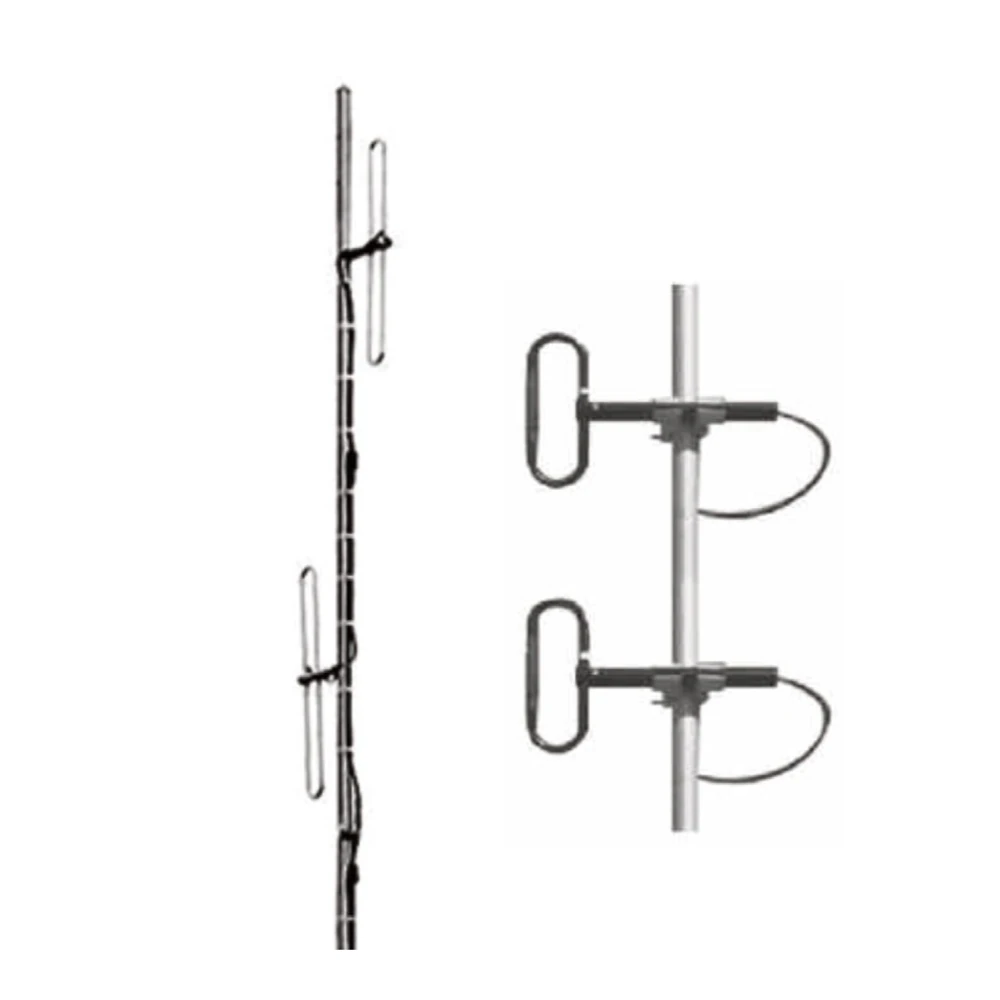

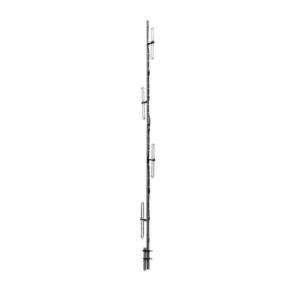

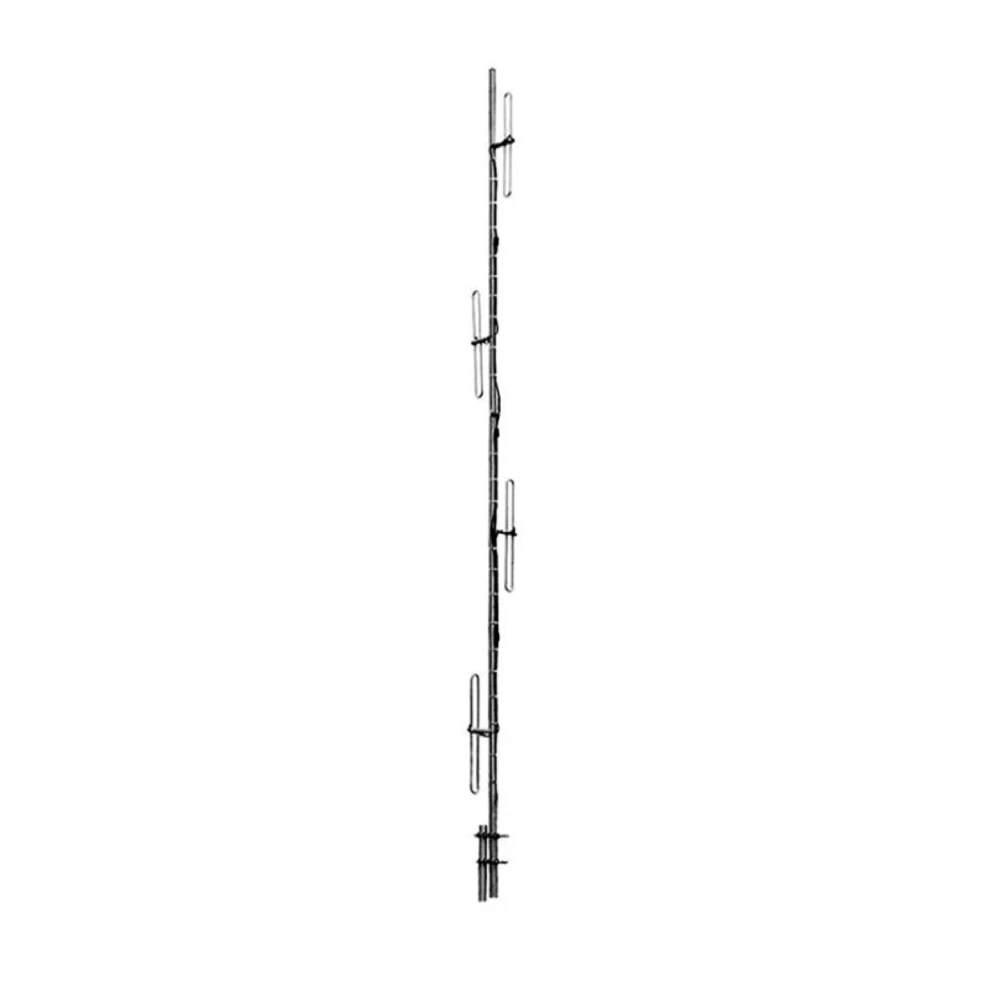

These three vertically polarized folded dipole antennas have different array sizes and RF specifications. GL400DQ-2 and GL400IA-2 use two folded dipoles; GL400IA uses four.

GL400DQ-2 / GL400IA / GL400IA-2MHz: 380-470; 400-480; 380-490N Female or 7/16DIN; N Female or Customization

Request a Quote Download Datasheet

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

Model comparison
Parameter	GL400DQ-2	GL400IA	GL400IA-2
Frequency-MHz	380-470	400-480	380-490
Bandwidth-MHz	90	16	10
Gain-dBi	5.15-8.15	Omni 9/Directional 12	Omni 5/Directional 7
Vertical Beamwidth-º	35	13	35
VSWR	≤1.5	≤1.5	≤1.5
Nominal Impedance-Ω	50	50	50
Polarization	Vertical	Vertical	Vertical
Maximum Power-W	300	100	200
Dimensions-cm	156	250	150
Weight-kg	7.0	8.0	1.3
Rated Wind Velocity-m/s	60	60	60
Connector	N Female or 7/16DIN	N Female or Customization	N Female or Customization
Remarks	Antenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer	Antenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer	Antenna main pole and clip code can be purchased separately;The antenna main pole and supporting pole are provided by the customer

Frequency range and bandwidth are separate specifications. A blank cell means the source does not state a value. See each model’s datasheet below.

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

Model comparison

Compare the dipole array and its rated power

These three vertically polarized folded dipole antennas have different array sizes and RF specifications. GL400DQ-2 and GL400IA-2 use two folded dipoles; GL400IA uses four.

GL400DQ-2 lists 380-470 MHz, 90 MHz bandwidth and 300 W maximum power. GL400IA lists 400-480 MHz, 16 MHz bandwidth and 100 W; GL400IA-2 lists 380-490 MHz, 10 MHz bandwidth and 200 W. Frequency range and bandwidth are separate specifications for each model.

The IA models distinguish omni and directional gain values, while DQ-2 specifies a 5.15-8.15 dBi gain range. Compare the dimensional, weight and connector differences below. The source sheets state that the antenna main pole and supporting pole are provided by the customer.
