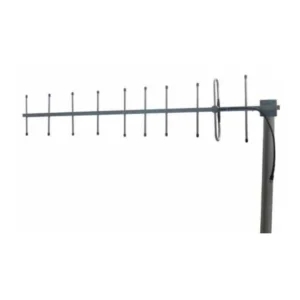

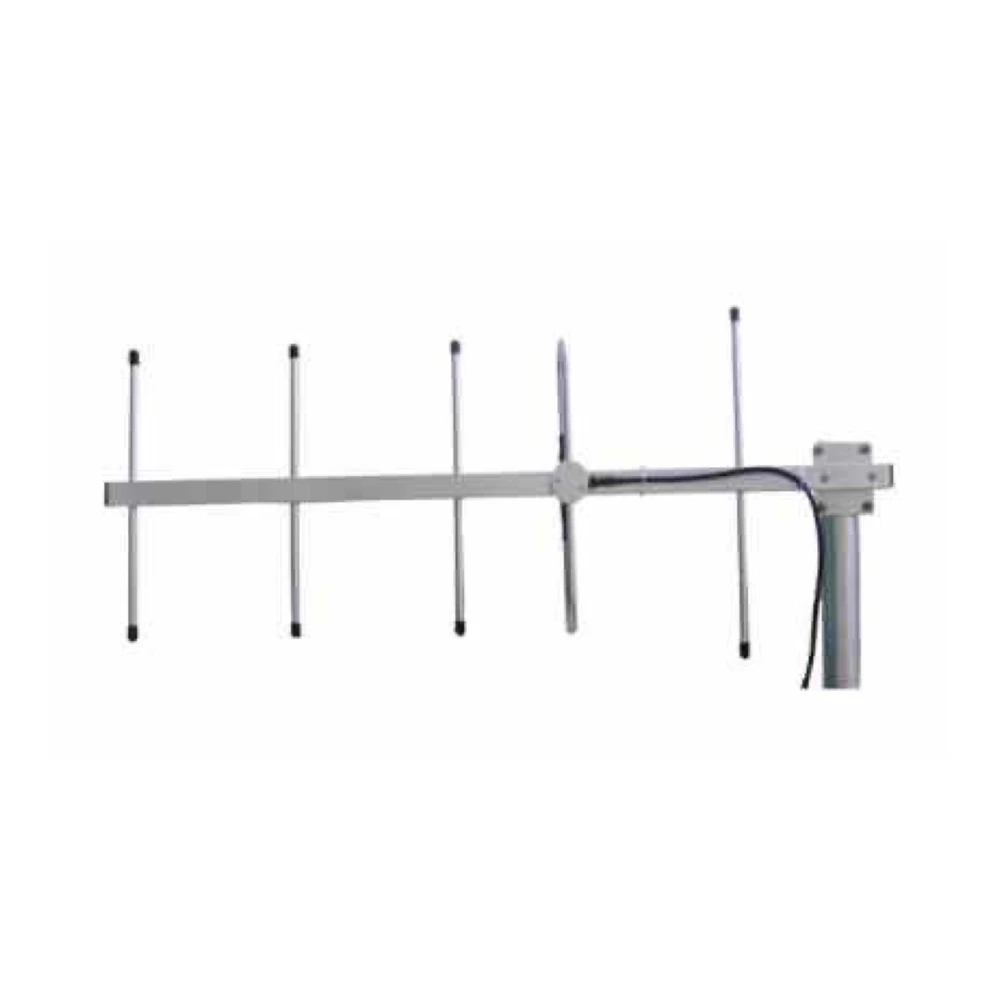

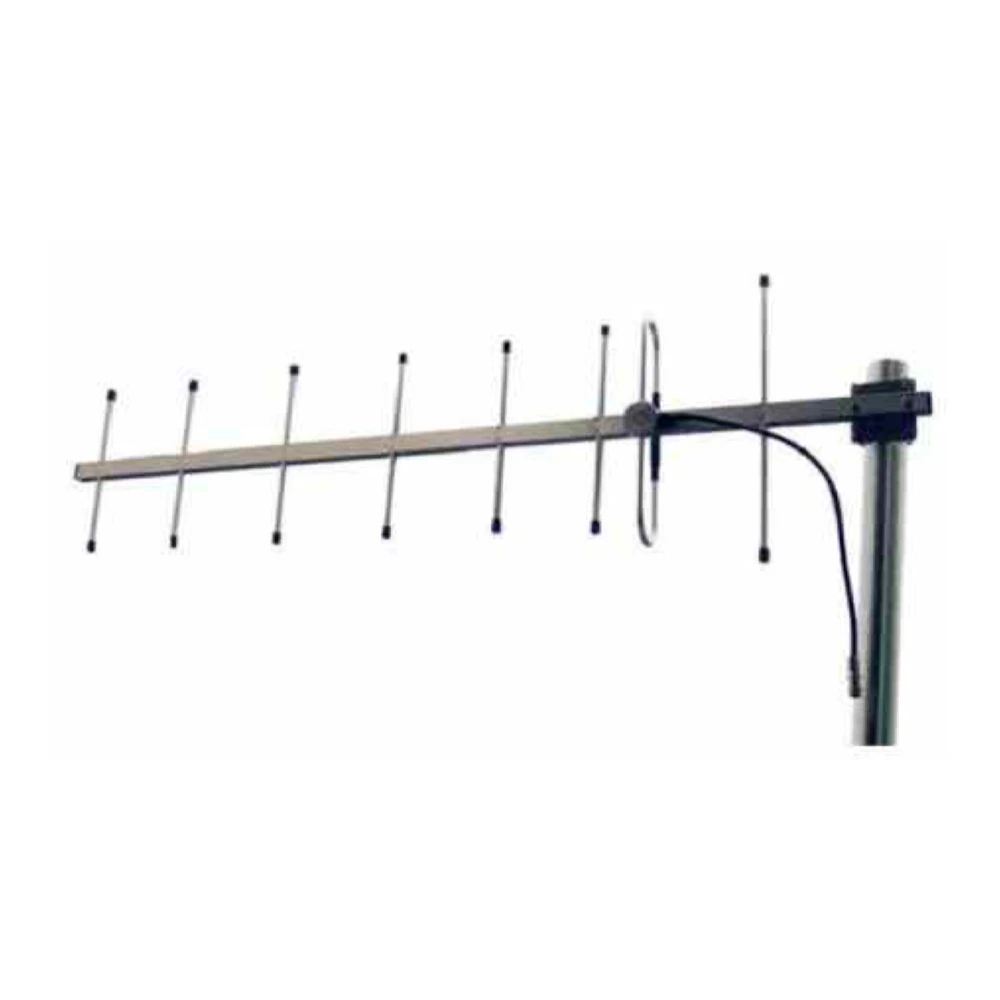

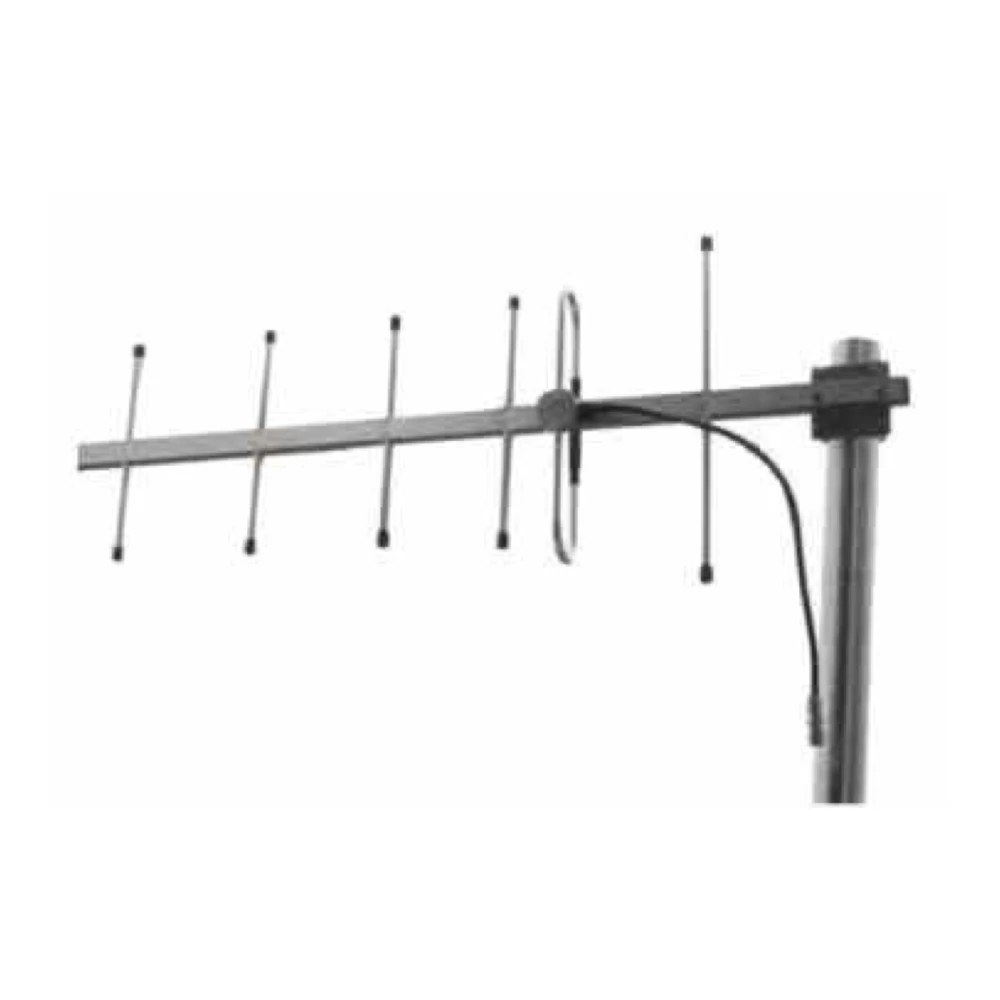

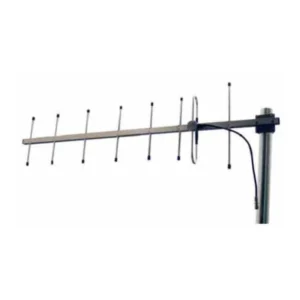

GL400Z10, Z5, Z6 and Z8 Yagi Antennas

SKUGL400Z10

GL400Z10, GL400Z5, GL400Z6 and GL400Z8 are Yagi antennas with vertical or horizontal polarization listed in their source sheets. Each is rated for 100 W maximum power and has an N female connector or customization option.

GL400Z10 / GL400Z5 / GL400Z6 / GL400Z8MHz: 400-410; 400-490; 400-480N Female or Customization

Request a Quote Download Datasheet

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

Model comparison
Parameter	GL400Z10	GL400Z5	GL400Z6	GL400Z8
Frequency-MHz	400-410	400-490	400-480	400-480
Bandwidth-MHz	10	20	20	20
Gain-dBi	12	9	10	11.2
Vertical Beamwidth-º	36	48	50	40
Horizontal Beamwidth-º	40	54	61	44
F/B Ratio-dB	≥16	≥15	≥15	≥16
VSWR	≤1.5	≤1.5	≤1.5	≤1.5
Nominal Impedance-Ω	50	50	50	50
Polarization	Vertical or Horizontal	Vertical or Horizontal	Vertical or Horizontal	Vertical or Horizontal
Maximum Power-W	100	100	100	100
Length-cm	174	72	97	130
Weight-kg	1.0	0.6	0.8	0.9
Rated Wind Velocity-m/s	60	60	60	60
Connector	N Female or Customization	N Female or Customization	N Female or Customization	N Female or Customization

Frequency range and bandwidth are separate specifications. A blank cell means the source does not state a value. See each model’s datasheet below.

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

Model comparison

Compare gain, beamwidth and boom length

GL400Z10 specifies 400-410 MHz with 10 MHz bandwidth. GL400Z5 lists 400-490 MHz, while GL400Z6 and GL400Z8 list 400-480 MHz; these three have a stated bandwidth of 20 MHz.

Their documented gains are 12, 9, 10 and 11.2 dBi respectively. The table compares vertical and horizontal beamwidths, front-to-back ratios and lengths so the directional and physical differences stay visible.
