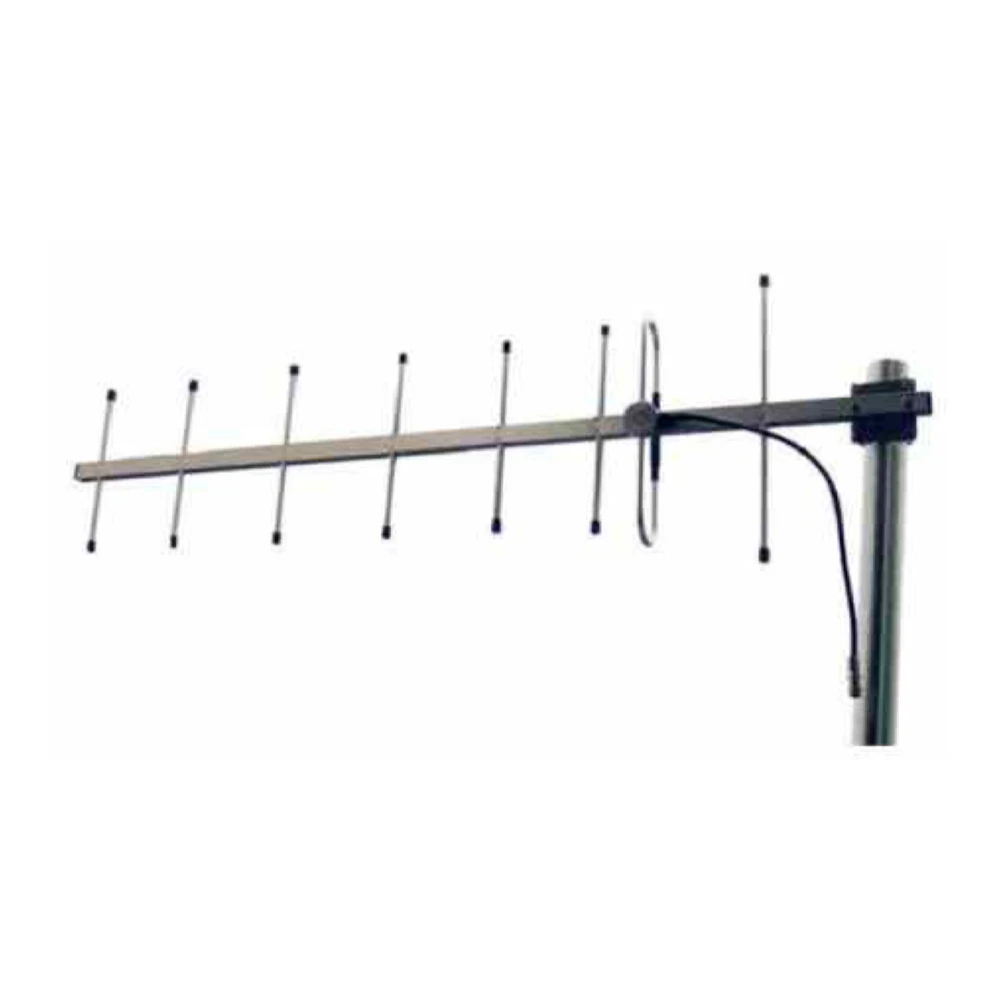

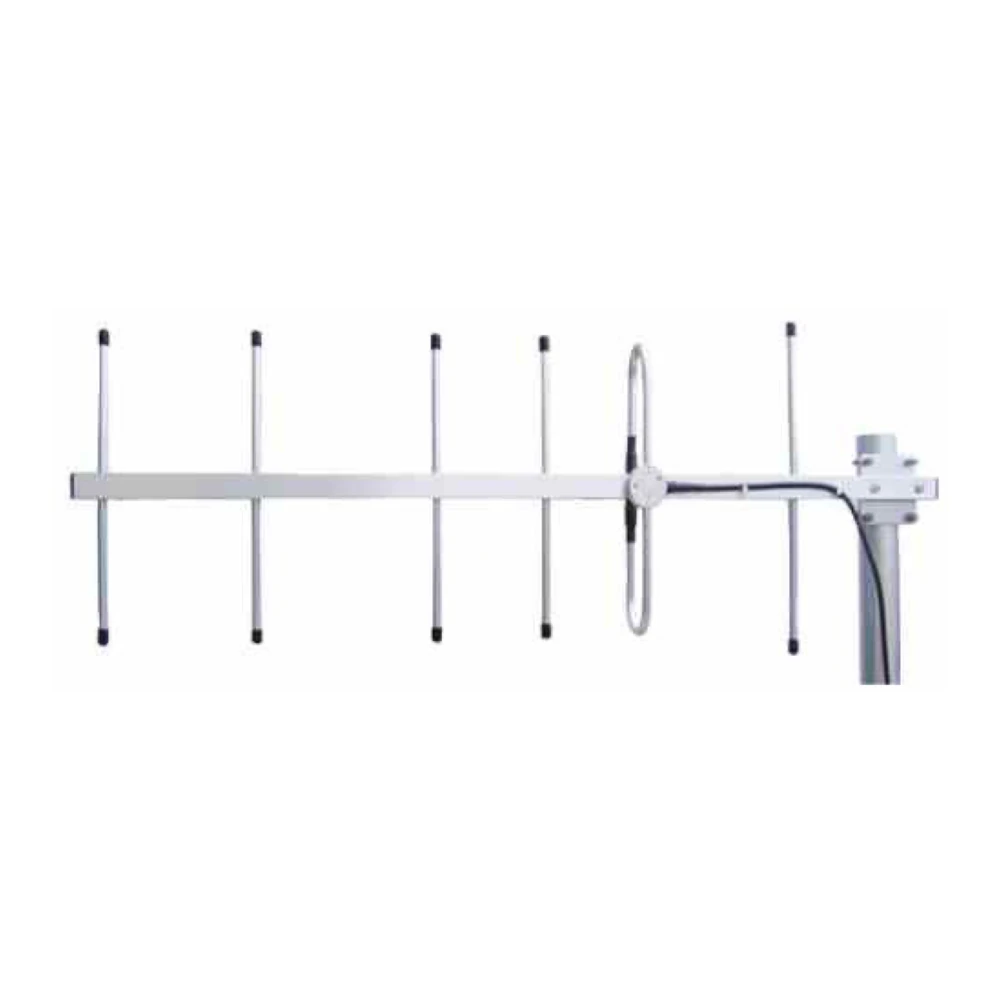

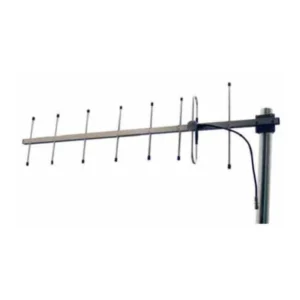

GL450Z5, GL450Z6 and GL450Z8C15 450-470 MHz Yagi Antennas

SKUGL450Z5

GL450Z5, GL450Z6 and GL450Z8C15 are vertically polarized Yagi antennas specified for 450-470 MHz with a 20 MHz bandwidth. All three list N female or customization as the connector option.

GL450Z5 / GL450Z6 / GL450Z8C15MHz: 450-470N Female or Customization

Request a Quote Download Datasheet

Documented product data

Technical specifications

Values below come from the fields currently recorded for this model.

Model comparison
Parameter	GL450Z5	GL450Z6	GL450Z8C15
Frequency-MHz	450-470	450-470	450-470
Bandwidth-MHz	20	20	20
Gain-dBi	9	10.5	11.2
Vertical Beamwidth-º	58	46	40
Horizontal Beamwidth-º	70	55	44
F/B Ratio-dB	≥14	≥12	≥15
VSWR	≤1.5	≤1.5	≤1.5
Nominal Impedance-Ω	50	50	50
Polarization	Vertical	Vertical	Vertical
Maximum Power-W	100	50	100
Dimensions-cm	69	77	116
Weight-g	1060	1100	1300
Connector	N Female or Customization	N Female or Customization	N Female or Customization
Remarks	Length is just for reference only	Length is just for reference only	Length is just for reference only

Frequency range and bandwidth are separate specifications. A blank cell means the source does not state a value. See each model’s datasheet below.

Engineering selection guide

Product details

How this model fits the documented RF, interface and installation requirements.

Model comparison

Three Yagi options for the same stated frequency range

GL450Z5, GL450Z6 and GL450Z8C15 are vertically polarized Yagi antennas specified for 450-470 MHz with a 20 MHz bandwidth. All three list N female or customization as the connector option.

The documented gains are 9, 10.5 and 11.2 dBi, with respective dimensions of 69, 77 and 116 cm. Both beamwidths and front-to-back ratio vary by model.

GL450Z6 is rated for 50 W maximum power; GL450Z5 and GL450Z8C15 are rated for 100 W. The comparison retains that distinction along with each model's weight and RF figures.
