GLDY904-2 698-2700 MHz Panel Antenna
SKU GLDY904-2
GLDY904-2 panel antenna covers 698-960 and 1710-2700 MHz with 8-9 dBi gain, vertical polarization, VSWR ≤1.5 and N female interface.
Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.
| SKU | GLDY904-2 |
|---|---|
| Frequency | 698-960 / 1710-2700 MHz |
| Dimensions | 290 × 210 × 90 mm |
| Connector | N Female |
| Mounting | Wall or Pole Mount |
| Application | Indoor cellular coverage and DAS |
| Bandwidth | 262 / 2002 MHz |
| Gain | 8-9 dBi |
| VSWR | ≤1.5 |
| Input Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Input Power | 100 W |
| Category | Panel Antenna |

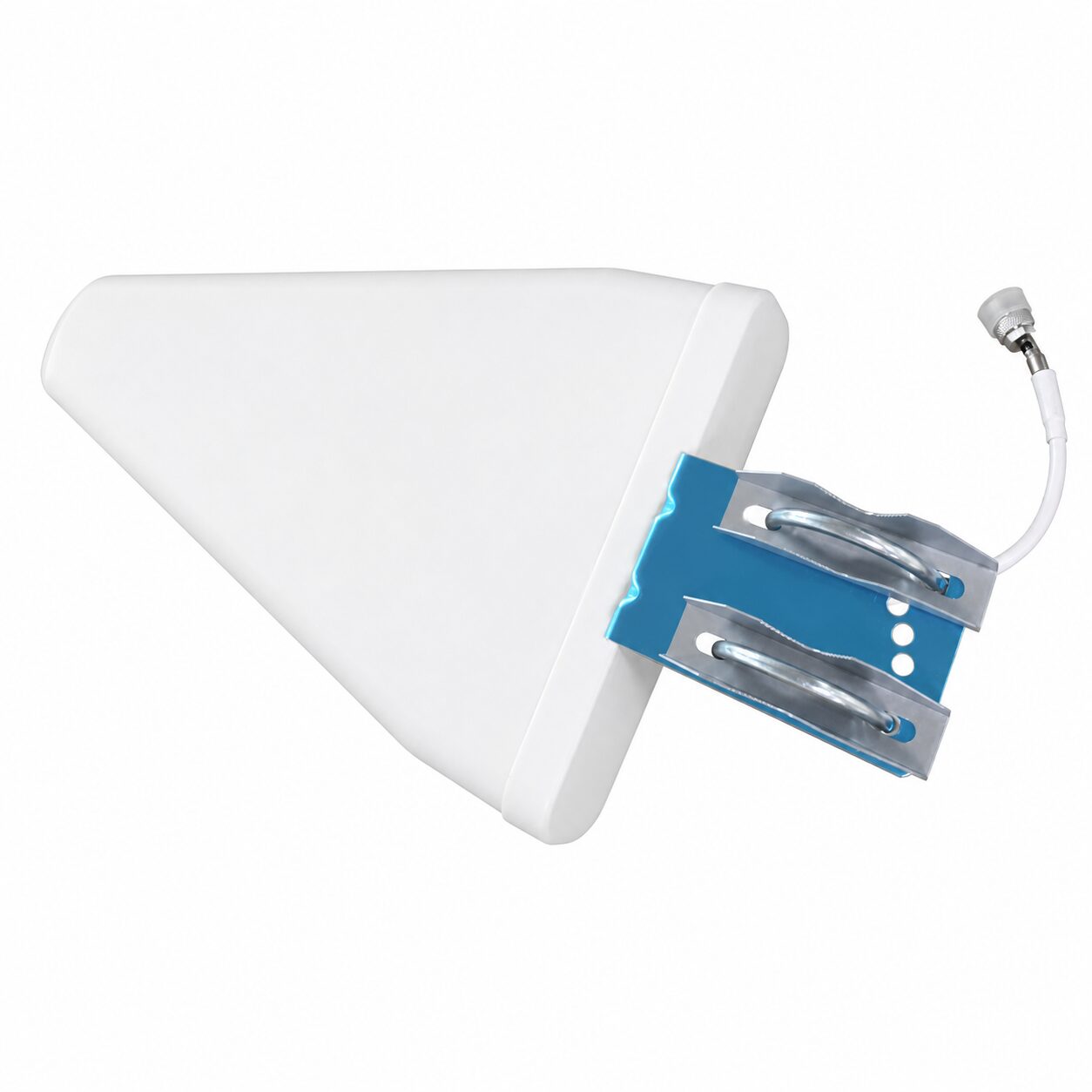

GLDY904-2 product overview
The GLDY904-2 is a directional panel antenna covering 698-960 MHz and 1710-2700 MHz. Its supplied specification lists 8-9 dBi gain, vertical polarization, 50-ohm impedance, VSWR no greater than 1.5 and a 100 W maximum input rating.
Applications and product fit
The panel format and included mounting bracket suit indoor coverage and distributed antenna system layouts where a defined coverage direction is required across the documented cellular bands.
Integration and ordering notes
Confirm the target bands, mounting surface or pole, antenna orientation, feeder cable and N-female mating interface before ordering. Coverage depends on the complete RF design, installation position and feeder loss.
Related products and resources
- Compare panel antenna models
- Read the in-building DAS guide
- Browse all RF products
- Send your coverage and mounting requirement
Selection and Project Support
GLDY904-2 698-2700 MHz Panel Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Panel Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.
Integration Notes
Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLDY904-2).
Customization and Documentation
For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
