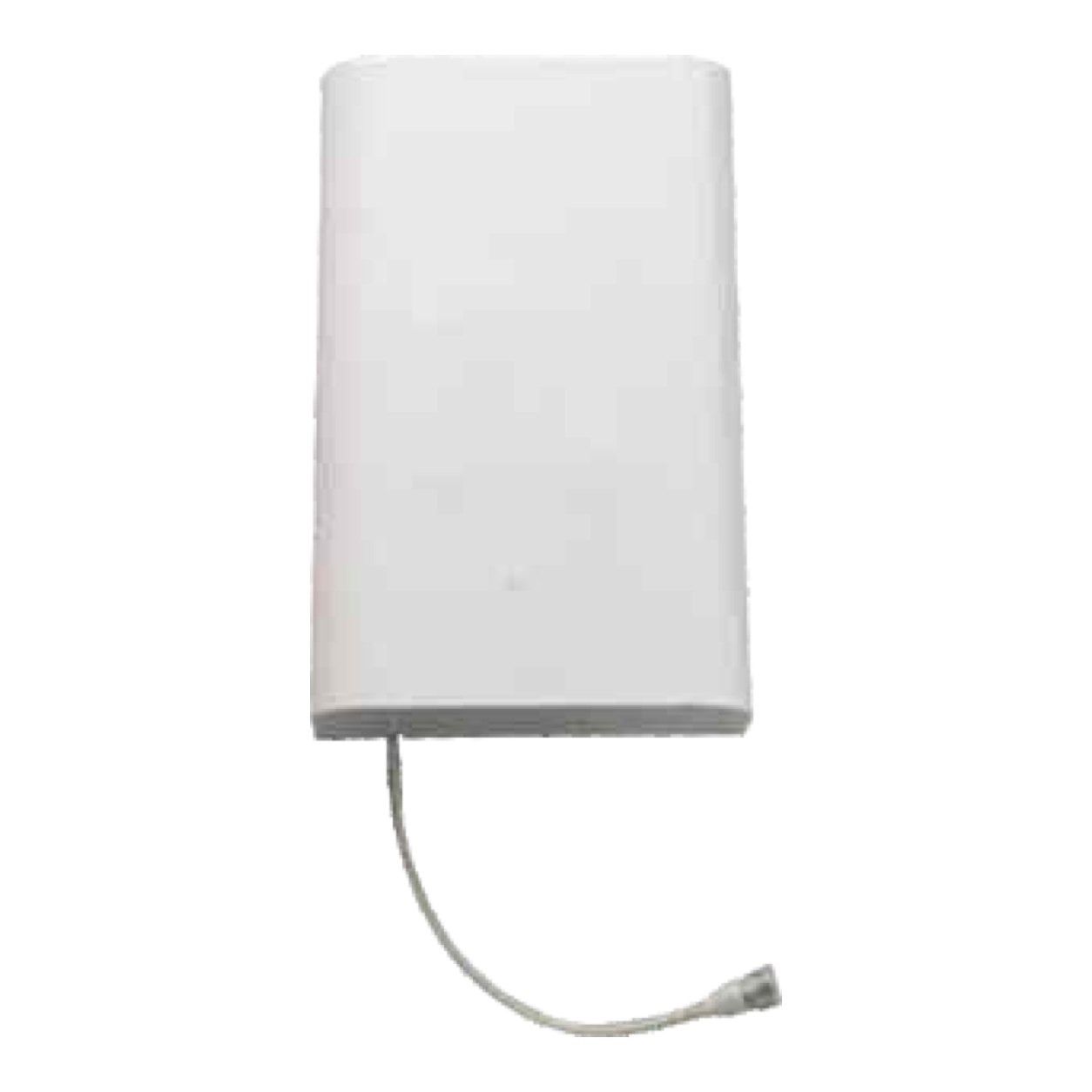

GL350BFG 350-370 MHz 5 dBi Panel Antenna

SKU GL350BFG

GL350BFG is a compact 350-370 MHz panel antenna for indoor wall mounting, with 5 dBi gain and an 85° horizontal beam for defined UHF coverage areas.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GL350BFG

Frequency 350-370 MHz

Dimensions 0.32 × 0.2 × 0.07 m

Connector N Female

Mounting Indoor wall mount

Application UHF indoor directional coverage antenna

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350BFG
Frequency	350-370 MHz
Dimensions	0.32 × 0.2 × 0.07 m
Connector	N Female
Mounting	Indoor wall mount
Application	UHF indoor directional coverage antenna
Bandwidth	20 MHz
Gain	5 dBi
Vertical Beamwidth	120 °
Horizontal Beamwidth	85 °
VSWR	<=1.6
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	50 W
Weight	0.9 kg
Rated Wind Velocity	60 m/s
Remarks	Indoor Wall mount installation
Category	Panel Antenna

Indoor panel coverage

GL350BFG is an indoor wall-mount panel antenna for 350-370 MHz coverage where the installation needs a defined directional area instead of a mast-mounted omni pattern. The documented 85° horizontal and 120° vertical beamwidths support broad sector coverage from a fixed wall position.

Electrical and enclosure details

The panel provides 5 dBi gain, vertical polarization, a 50 W input rating and ≤1.6 VSWR. Its stated dimensions are 0.32 × 0.2 × 0.07 m, with 0.9 kg weight and an N female connector. Plan the cable exit and wall fixing so the antenna face is aimed at the intended indoor area.

Deployment use

It fits indoor UHF systems, building coverage zones, industrial rooms and equipment areas where a wall-mounted sector is more practical than an omni radiator. Confirm the building materials, antenna position and service direction before ordering.

Selection question

Select GL350BFG when the 350-370 MHz band, wall-mount format and 85° horizontal beam suit the coverage map. It is not specified for an outdoor pole installation.

Typical Applications

UHF indoor directional coverage antenna
System integration with a specified 50 Ω feed line
Projects that document frequency, connector and mounting details before ordering

Questions Before Ordering

Is GL350BFG for outdoor mounting?

No. The source specifies indoor wall-mount installation.

What coverage direction should be planned?

Aim the panel toward the target indoor area; its horizontal beamwidth is specified as 85°.

Related Resources

Technical Specifications

Frequency Range	350-370 MHz
Bandwidth	20 MHz
Gain	5 dBi
Vertical Beamwidth	120 °
Horizontal Beamwidth	85 °
VSWR	<=1.6
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	50 W
Dimensions	0.32 × 0.2 × 0.07 m
Weight	0.9 kg
Rated Wind Velocity	60 m/s
Connector	N female
Remarks	Indoor Wall mount installation

Selection and Project Support

GL350BFG 350-370 MHz 5 dBi Panel Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Panel Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350BFG).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
