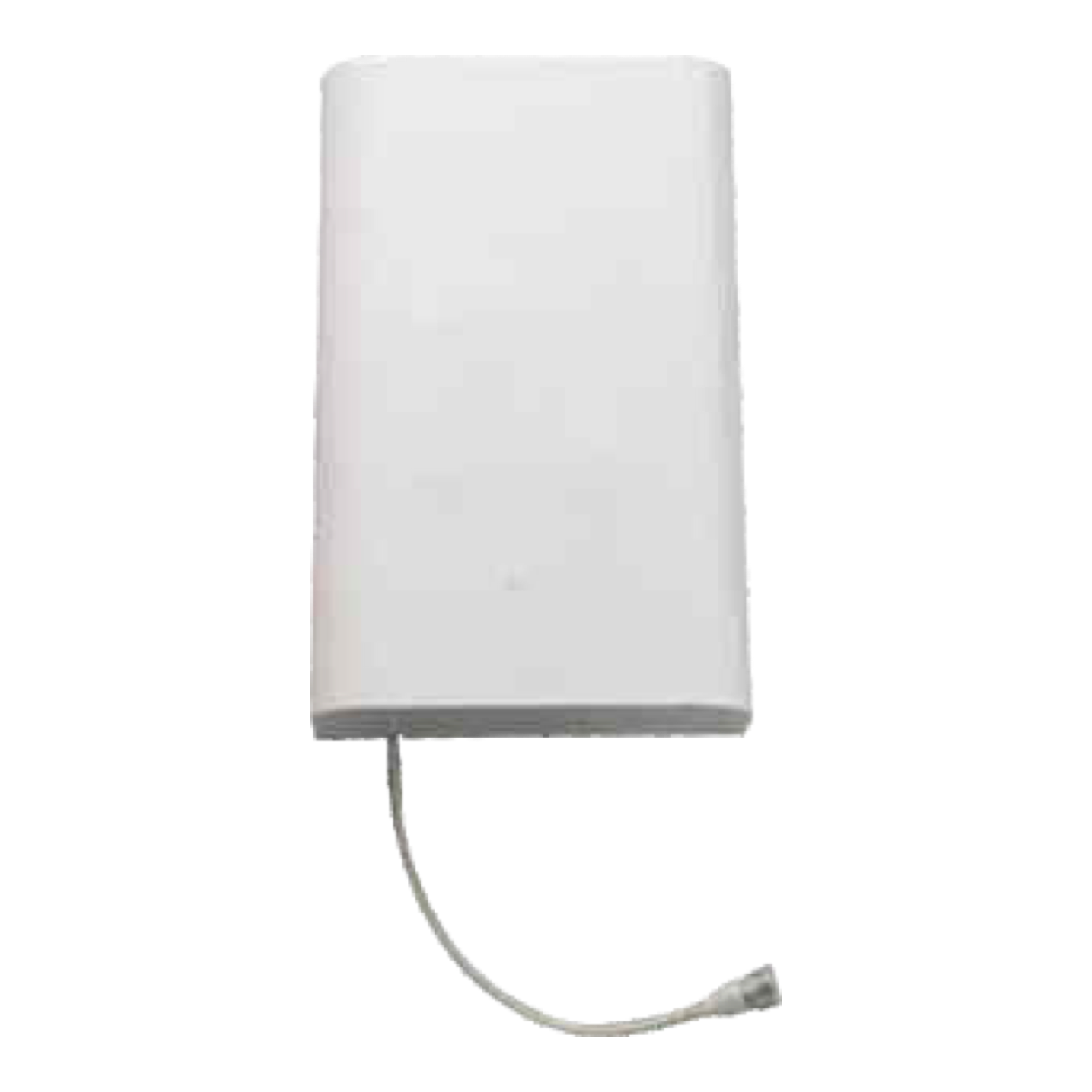

GL350BFG-Y white-background product image

RF Product Panel Antenna

GL350BFG-Y 351-366 MHz 5 dBi Panel Antenna

SKU GL350BFG-Y

GL350BFG-Y is a 351-366 MHz outdoor pole-mount panel antenna for defined UHF sectors, with 5 dBi gain, N female feed and an 85° horizontal beam.

In Stock 1,000 Units

Typical Delivery 7–15 Days

SKU GL350BFG-Y

Frequency 351-366 MHz

Dimensions 0.32 × 0.2 × 0.07 m

Connector N Female

Mounting Outdoor pole installation

Application UHF outdoor directional coverage antenna

Request Quote for This Model Request Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GL350BFG-Y
Frequency	351-366 MHz
Dimensions	0.32 × 0.2 × 0.07 m
Connector	N Female
Mounting	Outdoor pole installation
Application	UHF outdoor directional coverage antenna
Bandwidth	15 MHz
Gain	5 dBi
Vertical Beamwidth	120 °
Horizontal Beamwidth	85 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	50 W
Weight	1.0 kg
Rated Wind Velocity	60 m/s
Remarks	Outdoor pole installation
Category	Panel Antenna

Outdoor sector configuration

GL350BFG-Y is an outdoor pole-installed panel antenna for the narrower 351-366 MHz segment. It provides 5 dBi gain with an 85° horizontal beam, so it can direct UHF service toward a selected exterior coverage area instead of radiating equally around a mast.

Product specification

The panel is listed at 0.32 × 0.2 × 0.07 m and 1.0 kg, with vertical polarization, N female connector, 50 W maximum input power and ≤1.5 VSWR. The 60 m/s wind figure should be used together with the selected pole, bracket and site loading requirements.

Deployment use

Use it for outdoor facilities, perimeter-facing sectors, targeted yard coverage or system integrations where the target direction and 351-366 MHz allocation are known. Plan azimuth, downtilt, cable weatherproofing and separation from other antennas before installation.

Selection question

GL350BFG-Y is appropriate when a pole-mounted outdoor panel and its 85° horizontal beam fit the RF plan. For interior wall coverage, choose the indoor-rated GL350BFG instead.

Typical Applications

UHF outdoor directional coverage antenna
System integration with a specified 50 Ω feed line
Projects that document frequency, connector and mounting details before ordering

Questions Before Ordering

How does GL350BFG-Y differ from GL350BFG?

GL350BFG-Y is specified for outdoor pole mounting and 351-366 MHz; GL350BFG is an indoor wall-mount model for 350-370 MHz.

What is the connector?

The source lists an N female connector.

Related Resources

Technical Specifications

Frequency Range	351-366 MHz
Bandwidth	15 MHz
Gain	5 dBi
Vertical Beamwidth	120 °
Horizontal Beamwidth	85 °
VSWR	<=1.5
Nominal Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	50 W
Dimensions	0.32 × 0.2 × 0.07 m
Weight	1.0 kg
Rated Wind Velocity	60 m/s
Connector	N female
Remarks	Outdoor pole installation

Selection and Project Support

GL350BFG-Y 351-366 MHz 5 dBi Panel Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Panel Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GL350BFG-Y).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
