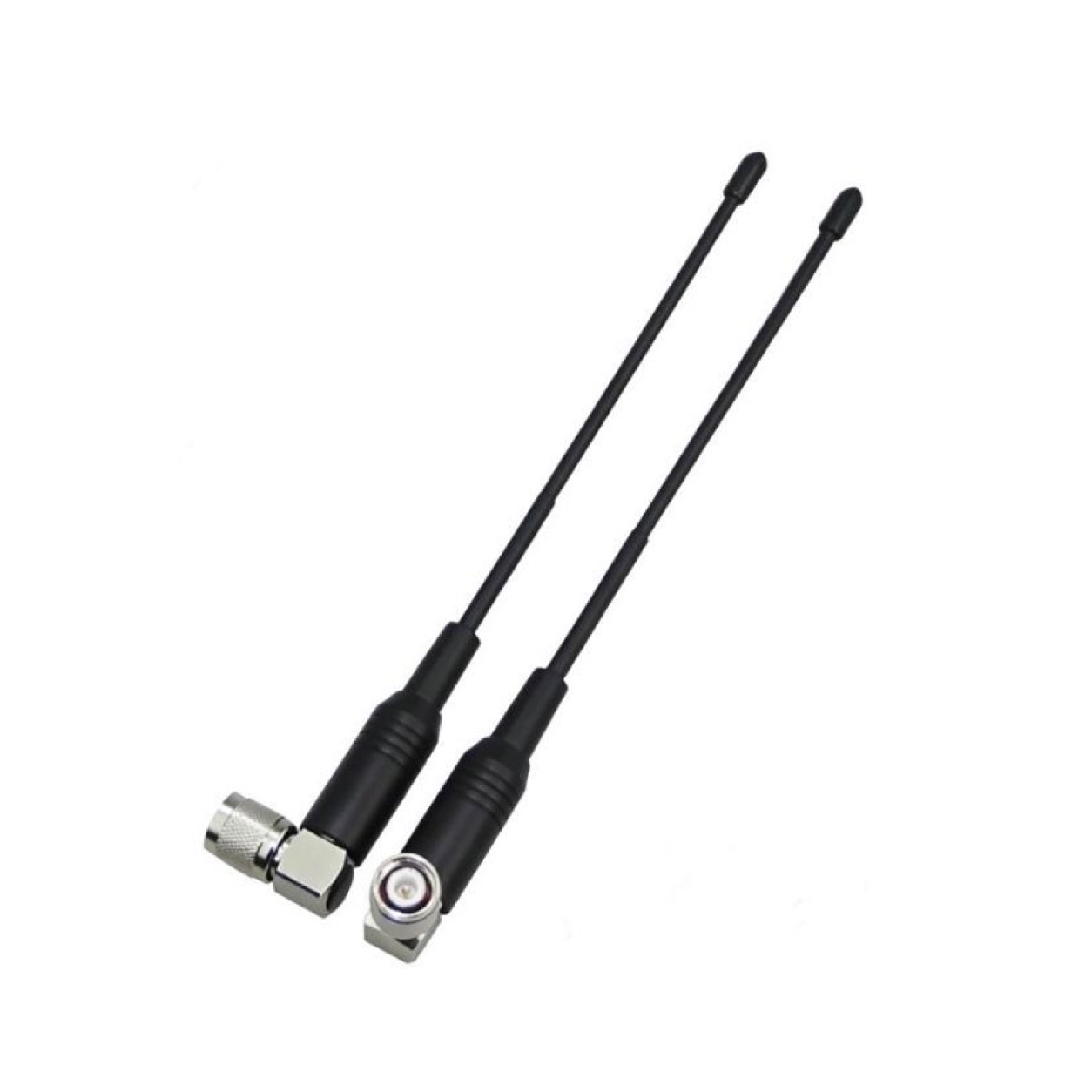

GLEM-915-3 black 902-928 MHz terminal antenna with right-angle TNC male connector

RF Product Terminal Antenna

GLEM-915-3 902-928 MHz 3 dBi Terminal Antenna

Name: GLEM-915-3 902-928 MHz 3 dBi Terminal Antenna
Brand: Global RF Tech
SKU: GLEM-915-3

SKU GLEM-915-3

GLEM-915-3 is a terminal antenna for 902-928 MHz LoRa and IoT systems. The datasheet lists 3 dBi gain, vertical polarization, VSWR ≤1.5 and a right-angle TNC male connector.

SKU GLEM-915-3

Frequency 902-928 MHz

Dimensions Length 200 mm

Connector Right-angle TNC Male

Application LoRa and IoT terminals

Bandwidth 26 MHz

Request Quote for This Model Datasheet

Need custom cable length, connector, or frequency support? Send us the SKU and project requirements.

SKU	GLEM-915-3
Frequency	902-928 MHz
Dimensions	Length 200 mm
Connector	Right-angle TNC Male
Application	LoRa and IoT terminals
Bandwidth	26 MHz
Gain	3 dBi
VSWR	≤1.5
Input Impedance	50 Ω
Polarization	Vertical
Maximum Input Power	50 W
Length	200 mm
Material	ABS
Radome Color	Black
Operating Temperature	-40 to +60 °C
Category	Terminal Antenna

Quick selection

Operating range: 902-928 MHz
Gain: 3 dBi
VSWR: ≤1.5
Polarization: Vertical
Connector: Right-angle TNC male
Length: 200 mm

Choose this model when the device operates within 902-928 MHz, uses a matching right-angle TNC male interface, has clearance for the documented 200 mm dimension, and the installation can meet the required vertical polarization.

Confirm before ordering the final device frequency plan, mating interface, enclosure clearance and any requirements for IP rating, radiation pattern, cable, packaging or certification, because these items are not documented in the supplied datasheet.

Product overview

GLEM-915-3 is a compact terminal antenna for 902-928 MHz LoRa and IoT systems. Its confirmed electrical specifications are 3 dBi gain, vertical polarization, VSWR no greater than 1.5, 50 Ω input impedance and 50 W maximum input power. The documented mechanical configuration is a right-angle TNC male connector, 200 mm dimension, ABS material and black radome. Select it only after the radio band, mating interface and installation clearance have been matched to the application.

Applications and integration notes

The datasheet lists LoRa and IoT systems, terminals, wireless network equipment, AP routers, smart home equipment, vending machines and NB-IoT modules as typical applications. Confirm that the actual radio operates inside 902-928 MHz and that the mating TNC interface, physical clearance and vertical-polarization requirement match the installation. The datasheet does not provide a radiation pattern, IP rating, cable configuration or certification statement; obtain those materials before treating them as selection requirements.

Frequently asked questions

Is GLEM-915-3 listed for LoRa and IoT systems?

Yes. The datasheet lists LoRa and IoT systems among its typical applications, provided the actual radio operates within 902-928 MHz.

What RF connector does it use?

The datasheet specifies a right-angle TNC male connector. Confirm the mating interface on the device before ordering.

What is the documented physical size?

The datasheet lists a 200 mm dimension. Confirm clearance in the final enclosure or installation.

Does the supplied datasheet confirm a cable, IP rating or radiation pattern?

No. These items are not stated in the supplied datasheet and must be confirmed before quotation if required.

Selection and Project Support

GLEM-915-3 902-928 MHz 3 dBi Terminal Antenna is listed by Rftech for RF antenna and wireless connectivity projects in the Terminal Antenna category. Use the specifications, images, and notes on this page as the starting point for model review before requesting drawings, samples, or customization support.

Integration Notes

Before production, confirm the operating band, connector, cable, mounting method, available installation space, and target application environment. Rftech can help review these details against the information already shown for this product (SKU GLEM-915-3).

Customization and Documentation

For OEM or ODM projects, contact the team with your required frequency range, connector preference, cable length, mechanical limits, and expected use case. Product drawings, samples, and project-specific recommendations can be requested when the available page details are not enough for final selection.
